15.11.2017  Linktip
FRMP
Schema FRMP.xsd


schema location:  FRMP.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://water.eionet.europa.eu/schemas/dir200760ec

Elements  Complex types
FRMP  FRMP
Hyperlinks
MeasureCodes
Measures
Prioritisation
ResponsibleAuthorities
SummaryArticle7.3
SummaryAspects
SummaryClimateChange

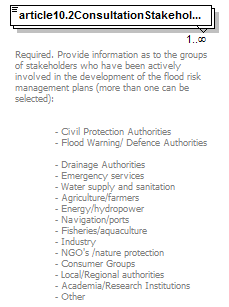

SummaryConsultation
SummaryCoordination

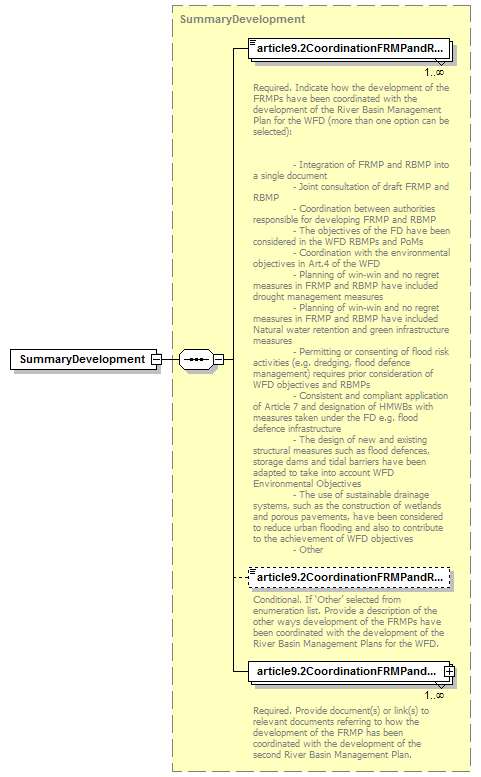

SummaryDevelopment

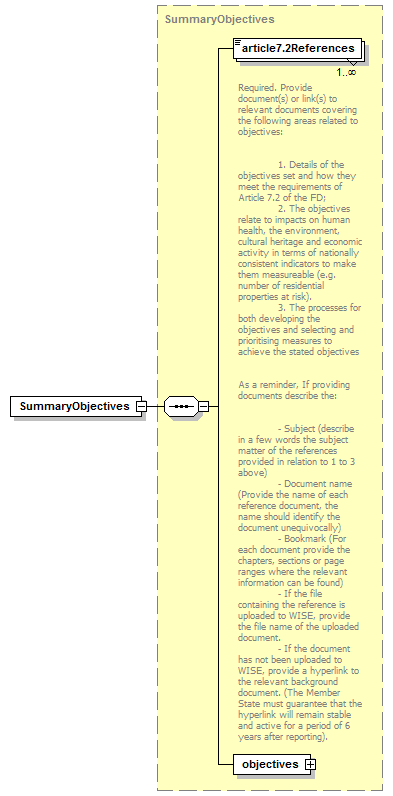

SummaryObjectives

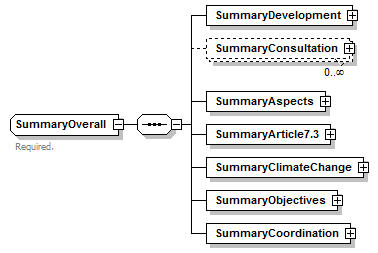

SummaryOverall
SummaryReview


schema location:  FDCommon.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

Complex types  Simple types
ReferenceType  Article_6.6_Justification_Enum
Article_6.7_Justification_Enum
CategoryFloods_Enum
CharacteristicsofFlooding_Enum
ClimateChange_Enum
ConsultationStakeholdersInvolved_Enum
ConsultationStakeholdersInvolvedMechanisms_Enum
CoordinateType
CoordinationFRMPandRBMP_Enum
CountryCode_enum
CriteriaForDeterminationFloodRisk_Enum
CriteriaForExclusionOrInclusion_Enum
DataConfidentialityClassificationCode_Enum
DateTypeYearType
ElementsProbability_Enum
FeatureUniqueCodeType
FeatureUniqueCodeTypeEX
FeatureUniqueEUCodeType
FloodSourcesMapped_Enum
GeographicScale_Enum
HistorialSignificantFloodsCriteria_Enum
ImpactPublicParticipation_Enum
InternationalInformationExchange_Enum
IssuesArticle4.2.d_Enum
LanguageCode_Enum
LocalNationalInternationalCoordination_Enum
MeasureAspect_Enum
MeasureCodesProgress_Enum
MeasureType_Enum
MechanismofFlooding_Enum
MechanismsOfInternationalCoordination_Enum
NumberDecimalBaseType
NumberDecimalType
NumberExceptionType
NumberNonNegativeIntegerType
NumberPercentageBaseType
NumberPercentageType
PotentialAdverseConsequencesCriteria_Enum
PriorityCategories_Enum
ProtectedAreaType_Enum
PublicConsultationsMechanisms_Enum
RelavantSources_Enum
ReturnperiondandprobabiltiesApproach_Enum
SourceofFlooding_Enum
String1000Type
String100Type
String2000Type
String250Type
String5000Type
String50Type
TotalDamageClass_Enum
TypeCulturalHeritage_Enum
TypeEconomicActivity_Enum
TypeEnvironment_Enum
TypeHumanHealth_Enum
URLType
WiseDate
WiseDateTime
WiseDateTimeType
WiseEvolutionTypeValue
WiseLanguageCode_Enum
WiseYear
WiseYearMonth
YearMonthType
YesCode
YesNoCode


element FRMP
diagram FRMP_p1.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type FRMP
properties
content complex
children c_Cd euuomCode Measures Hyperlinks SummaryReview SummaryOverall
attributes
Name  Type  Use  Default  Fixed  annotation
creationDatexs:stringrequired
documentation
Required. To be provided as year, month, date (e.g. “2012-03-20”)
creatorxs:stringrequired
documentation
Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))
classificationCodeDataConfidentialityClassificationCode_Enumoptional
documentation
Optional. Codes for data security classification:


- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only
emailxs:stringoptional
documentation
Optional. For example “frmplanning@sepa.org.uk”
languageCodeLanguageCode_Enumrequired
documentation
Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.
descriptionxs:stringoptional
documentation
Optional. For example: “Floods Directive  Flood Risk Management Plan Information”
generatedByxs:stringoptional
documentation
Optional. For example “Oracle scripts”
annotation
documentation
Article 7 of the Floods Directive requires Member States to prepare Flood Risk Management Plans (FRMPs) for all areas identified as being at potentially significant flood risk (APSFR) under Article 5 or Article 13.1(a), and areas covered by Article 13.1(b), on the basis of the maps prepared under Article 6
source <xs:element name="FRMP" type="FRMP">
  <xs:annotation>
    <xs:documentation>Article 7 of the Floods Directive requires Member States to prepare Flood Risk Management Plans (FRMPs) for all areas identified as being at potentially significant flood risk (APSFR) under Article 5 or Article 13.1(a), and areas covered by Article 13.1(b), on the basis of the maps prepared under Article 6</xs:documentation>
  </xs:annotation>
</xs:element>

complexType FRMP
diagram FRMP_p2.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children c_Cd euuomCode Measures Hyperlinks SummaryReview SummaryOverall
used by
element FRMP
attributes
Name  Type  Use  Default  Fixed  annotation
creationDatexs:stringrequired
documentation
Required. To be provided as year, month, date (e.g. “2012-03-20”)
creatorxs:stringrequired
documentation
Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))
classificationCodeDataConfidentialityClassificationCode_Enumoptional
documentation
Optional. Codes for data security classification:


- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only
emailxs:stringoptional
documentation
Optional. For example “frmplanning@sepa.org.uk”
languageCodeLanguageCode_Enumrequired
documentation
Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.
descriptionxs:stringoptional
documentation
Optional. For example: “Floods Directive  Flood Risk Management Plan Information”
generatedByxs:stringoptional
documentation
Optional. For example “Oracle scripts”
annotation
documentation
Required
source <xs:complexType name="FRMP">
  <xs:annotation>
    <xs:documentation>Required</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="c_Cd" type="fd:CountryCode_enum">
      <xs:annotation>
        <xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="euuomCode" type="fd:FeatureUniqueEUCodeType">
      <xs:annotation>
        <xs:documentation>Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Measures" type="Measures" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="Hyperlinks" type="Hyperlinks" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="SummaryReview" type="SummaryReview" minOccurs="0"/>

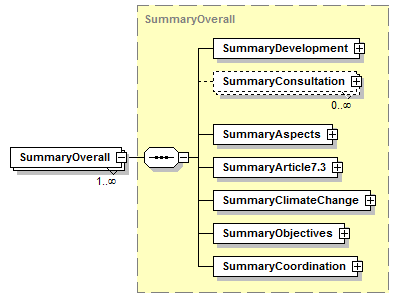

    <xs:element name="SummaryOverall" type="SummaryOverall" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="creationDate" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation>Required. To be provided as year, month, date (e.g. “2012-03-20”)</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="creator" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation>Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="classificationCode" type="fd:DataConfidentialityClassificationCode_Enum" use="optional">
    <xs:annotation>
      <xs:documentation>Optional. Codes for data security classification:


- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only </xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="email" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Optional. For example “frmplanning@sepa.org.uk”</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="languageCode" type="fd:LanguageCode_Enum" use="required">
    <xs:annotation>
      <xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="description" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Optional. For example: “Floods Directive  Flood Risk Management Plan Information”</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="generatedBy" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Optional. For example “Oracle scripts”</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

attribute FRMP/@creationDate
type xs:string
properties
isRef 0
use required
annotation
documentation
Required. To be provided as year, month, date (e.g. “2012-03-20”)
source <xs:attribute name="creationDate" type="xs:string" use="required">
  <xs:annotation>
    <xs:documentation>Required. To be provided as year, month, date (e.g. “2012-03-20”)</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute FRMP/@creator
type xs:string
properties
isRef 0
use required
annotation
documentation
Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))
source <xs:attribute name="creator" type="xs:string" use="required">
  <xs:annotation>
    <xs:documentation>Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute FRMP/@classificationCode
type DataConfidentialityClassificationCode_Enum
properties
isRef 0
use optional
facets
Kind Value annotation
enumeration 001 - Unclassified
enumeration 003 - Confidential
annotation
documentation
Optional. Codes for data security classification:


- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only
source <xs:attribute name="classificationCode" type="fd:DataConfidentialityClassificationCode_Enum" use="optional">
  <xs:annotation>
    <xs:documentation>Optional. Codes for data security classification:


- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only </xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute FRMP/@email
type xs:string
properties
isRef 0
use optional
annotation
documentation
Optional. For example “frmplanning@sepa.org.uk”
source <xs:attribute name="email" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Optional. For example “frmplanning@sepa.org.uk”</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute FRMP/@languageCode
type LanguageCode_Enum
properties
isRef 0
use required
facets
Kind Value annotation
enumeration bg
enumeration es
enumeration cs
enumeration da
enumeration de
enumeration et
enumeration el
enumeration en
enumeration fr
enumeration ga
enumeration hr
enumeration ic
enumeration it
enumeration lv
enumeration lt
enumeration hu
enumeration mt
enumeration nl
enumeration no
enumeration pl
enumeration pt
enumeration ro
enumeration sk
enumeration sl
enumeration sr
enumeration tr
enumeration fi
enumeration sv
annotation
documentation
Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.
source <xs:attribute name="languageCode" type="fd:LanguageCode_Enum" use="required">
  <xs:annotation>
    <xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute FRMP/@description
type xs:string
properties
isRef 0
use optional
annotation
documentation
Optional. For example: “Floods Directive  Flood Risk Management Plan Information”
source <xs:attribute name="description" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Optional. For example: “Floods Directive  Flood Risk Management Plan Information”</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute FRMP/@generatedBy
type xs:string
properties
isRef 0
use optional
annotation
documentation
Optional. For example “Oracle scripts”
source <xs:attribute name="generatedBy" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Optional. For example “Oracle scripts”</xs:documentation>
  </xs:annotation>
</xs:attribute>

element FRMP/c_Cd
diagram FRMP_p3.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CountryCode_enum
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration AT
enumeration BE
enumeration BG
enumeration CH
enumeration CZ
enumeration CY
enumeration DE
enumeration DK
enumeration EE
enumeration EL
enumeration ES
enumeration FI
enumeration FR
enumeration HR
enumeration HU
enumeration IE
enumeration IS
enumeration IT
enumeration LT
enumeration LU
enumeration LV
enumeration MT
enumeration NO
enumeration NL
enumeration PL
enumeration PT
enumeration RO
enumeration SE
enumeration SI
enumeration SK
enumeration TR
enumeration UK
annotation
documentation
Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.
source <xs:element name="c_Cd" type="fd:CountryCode_enum">
  <xs:annotation>
    <xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
  </xs:annotation>
</xs:element>

element FRMP/euuomCode
diagram FRMP_p4.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type FeatureUniqueEUCodeType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 3
maxLength 42
annotation
documentation
Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total
source <xs:element name="euuomCode" type="fd:FeatureUniqueEUCodeType">
  <xs:annotation>
    <xs:documentation>Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total</xs:documentation>
  </xs:annotation>
</xs:element>

element FRMP/Measures
diagram FRMP_p5.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type Measures
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children wfdMeasureCode MeasureCodes
source <xs:element name="Measures" type="Measures" minOccurs="0" maxOccurs="unbounded"/>

element FRMP/Hyperlinks
diagram FRMP_p6.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type Hyperlinks
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children hyperlink descriptionOfHyperlink
source <xs:element name="Hyperlinks" type="Hyperlinks" minOccurs="0" maxOccurs="unbounded"/>

element FRMP/SummaryReview
diagram FRMP_p7.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryReview
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children changesReference summaryFRMPProgress additionalMeasuresReference
source <xs:element name="SummaryReview" type="SummaryReview" minOccurs="0"/>

element FRMP/SummaryOverall
diagram FRMP_p8.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryOverall
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children SummaryDevelopment SummaryConsultation SummaryAspects SummaryArticle7.3 SummaryClimateChange SummaryObjectives SummaryCoordination
source <xs:element name="SummaryOverall" type="SummaryOverall" maxOccurs="unbounded"/>

complexType Hyperlinks
diagram FRMP_p9.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children hyperlink descriptionOfHyperlink
used by
element FRMP/Hyperlinks
annotation
documentation
Optional.
source <xs:complexType name="Hyperlinks">
  <xs:annotation>
    <xs:documentation>Optional.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="hyperlink" type="xs:anyURI" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Optional. Hyperlinks to more detailed supporting documents (e.g. full FRMP, methodology documents and external sources of information) or other relevant information not already covered in the preceeding reference schemas</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="descriptionOfHyperlink" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Explain what the hyperlink is linking to - eg. FRMP or further information.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element Hyperlinks/hyperlink
diagram FRMP_p10.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type xs:anyURI
properties
isRef 0
minOcc 0
maxOcc unbounded
content simple
annotation
documentation
Optional. Hyperlinks to more detailed supporting documents (e.g. full FRMP, methodology documents and external sources of information) or other relevant information not already covered in the preceeding reference schemas
source <xs:element name="hyperlink" type="xs:anyURI" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Optional. Hyperlinks to more detailed supporting documents (e.g. full FRMP, methodology documents and external sources of information) or other relevant information not already covered in the preceeding reference schemas</xs:documentation>
  </xs:annotation>
</xs:element>

element Hyperlinks/descriptionOfHyperlink
diagram FRMP_p11.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Conditional. Explain what the hyperlink is linking to - eg. FRMP or further information.
source <xs:element name="descriptionOfHyperlink" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. Explain what the hyperlink is linking to - eg. FRMP or further information.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType MeasureCodes
diagram FRMP_p12.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children apsfrCode measureCode measureName measureAspect measureLocation geographicCoverage measureType cost costExplanationReference otherCommunityAct measuresDescriptionAndOtherRelevantInformation progressReferences progressReview progressReviewDescription Prioritisation ResponsibleAuthorities
used by
element Measures/MeasureCodes
annotation
documentation
Required.
source <xs:complexType name="MeasureCodes">
  <xs:annotation>
    <xs:documentation>Required.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="apsfrCode" type="fd:FeatureUniqueEUCodeType"/>
    <xs:element name="measureCode" type="fd:String250Type">
      <xs:annotation>
        <xs:documentation>Required. Unique code for the measures</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="measureName" type="fd:String250Type">
      <xs:annotation>
        <xs:documentation>Required. Short descriptive name for the measure</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="measureAspect" type="fd:MeasureAspect_Enum">
      <xs:annotation>
        <xs:documentation>Required. Choose whether this measure is:


- Aggregated
- Individual</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="measureLocation" type="fd:String250Type">
      <xs:annotation>
        <xs:documentation>Required. RBD/UoM(code), APSFR/s (code),  name of location, river basin(code), sub-basin(code)  or  water body(code), or other; (the most relevant location description shall be chosen from amongst these options)  </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="geographicCoverage" type="fd:GeographicScale_Enum" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Geographic coverage of expected effect of the measures (whole National, RBD/UoM, specific river-basin, sub-basin or coastal area, specific APSFR, or other (location, water body, etc), if different from location of measure</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="measureType" type="fd:MeasureType_Enum">
      <xs:annotation>
        <xs:documentation>Required. Choose from the enumeration list

- M11=No Action, No measure is proposed to reduce the flood risk in the APSFR
- or other defined area ,
- M21=Prevention, Avoidance, Measure to prevent the location of new or additional receptors in flood prone areas, such as land use planning policies or regulation
- M22=Prevention, Removal or relocation, Measure to remove receptors from flood prone areas, or to relocate receptors to areas of lower probability of flooding and/or of lower hazard
- M23=Prevention, Reduction, Measure to adapt receptors to reduce the adverse consequences in the event of a flood actions on buildings, public networks, etc...
- M24=Prevention, Other prevention, Other measure to enhance flood risk prevention (may include, flood risk modelling and assessment, flood vulnerability assessment, maintenance programmes or policies etc...)
- M31=Protection Natural flood management / runoff and catchment management, Measures to reduce the flow into natural or artificial drainage systems, such as overland flow interceptors and / or storage, enhancement of infiltration, etc and including in-channel , floodplain works and the reforestation of banks, that restore natural systems to help slow flow and store water.
- M32=Protection, Water flow regulation, Measures involving physical interventions to regulate flows, such as the construction, modification or removal of water retaining structures (e.g., dams or other on-line storage areas or development of existing flow regulation rules), and which have a significant impact on the hydrological regime.
- M33=Protection, Channel, Coastal and Floodplain Works, Measures involving physical interventions in freshwater channels, mountain streams, estuaries, coastal waters and flood- prone areas of land, such as the construction, modification or removal of structures or the alteration of channels, sediment dynamics management, dykes, etc.
- M34=Protection, Surface Water Management, Measures involving physical interventions to reduce surface water flooding, typically, but not exclusively, in an urban environment, such as enhancing artificial drainage capacities or though sustainable drainage systems (SuDS).
- M35=Protection, Other Protection, Other measure to enhance protection against flooding, which may include flood defence asset maintenance programmes or policies
- M41=Preparedness,   Flood Forecasting and Warning,  Measure to establish or enhance a flood forecasting or warning system
- M42=Preparedness, Emergency Event Response Planning / Contingency planning,   Measure to establish or enhance flood event institutional emergency response planning
- M43=Preparedness, Public Awareness and Preparedness, Measure to establish or enhance the public awareness or preparedness for flood events
- M44=Preparedness, Other preparedness, Other measure to establish or enhance preparedness for flood events to reduce adverse consequences
- M51=Recovery and Review (Planning for the recovery and review phase is in principle part of preparedness), Individual and societal recovery, Clean-up and restoration activities (buildings, infrastructure, etc)
- Health and mental health supporting actions, incl. managing stress
- Disaster financial assistance (grants, tax), incl.  disaster legal assistance, disaster unemployment assistance Temporary or permanent relocation
- Other
- M52=Recovery and Review, Environmental recovery, Clean-up and restoration activities (with several sub-topics as mould protection, well-water safety and securing hazardous materials containers)
- M53=Recovery and Review, Other, Other recovery and review Lessons
- learnt from flood events Insurance policies
- M61=Other</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cost" type="fd:String2000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Cost and benefits of the measure(s) (expressed in monetary terms(in €/national currency), quantitative and/or qualitative terms)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="costExplanationReference" type="fd:ReferenceType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Provide document(s) or link(s) to relevant documentation explaining what is included in the cost calculation and/or for providing further details (e.g. whether figures refer to budget allocated or to expenditure to date). </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherCommunityAct" type="fd:String2000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Other Community Act under which the measure has been implemented (where relevant) (AnnexA.I.4) (less than 2000 characters)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="measuresDescriptionAndOtherRelevantInformation" type="fd:ReferenceType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Other description of the measure or additional useful information of clarification </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="progressReferences" type="fd:ReferenceType">
      <xs:annotation>
        <xs:documentation>Required. Provide references/links to relevant documentation explaining progress with implementation of measures</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="progressReview" type="fd:MeasureCodesProgress_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Please indicate progress made with implementation of measures (more than one option can be selected):


- Not started
- In preparation (e.g. planning)
- On-going (one-off e.g. construction works)
- On-going (recurrent e.g. maintenance works)
- Completed</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="progressReviewDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Provide further explanation of the progress made with implementation of measures and include a timetable for completion where possible</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Prioritisation" type="Prioritisation" minOccurs="0"/>
    <xs:element name="ResponsibleAuthorities" type="ResponsibleAuthorities" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element MeasureCodes/apsfrCode
diagram FRMP_p13.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type FeatureUniqueEUCodeType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 3
maxLength 42
source <xs:element name="apsfrCode" type="fd:FeatureUniqueEUCodeType"/>

element MeasureCodes/measureCode
diagram FRMP_p14.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Required. Unique code for the measures
source <xs:element name="measureCode" type="fd:String250Type">
  <xs:annotation>
    <xs:documentation>Required. Unique code for the measures</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/measureName
diagram FRMP_p15.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Required. Short descriptive name for the measure
source <xs:element name="measureName" type="fd:String250Type">
  <xs:annotation>
    <xs:documentation>Required. Short descriptive name for the measure</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/measureAspect
diagram FRMP_p16.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type MeasureAspect_Enum
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Aggregated
enumeration Individual
annotation
documentation
Required. Choose whether this measure is:


- Aggregated
- Individual
source <xs:element name="measureAspect" type="fd:MeasureAspect_Enum">
  <xs:annotation>
    <xs:documentation>Required. Choose whether this measure is:


- Aggregated
- Individual</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/measureLocation
diagram FRMP_p17.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Required. RBD/UoM(code), APSFR/s (code),  name of location, river basin(code), sub-basin(code)  or  water body(code), or other; (the most relevant location description shall be chosen from amongst these options)
source <xs:element name="measureLocation" type="fd:String250Type">
  <xs:annotation>
    <xs:documentation>Required. RBD/UoM(code), APSFR/s (code),  name of location, river basin(code), sub-basin(code)  or  water body(code), or other; (the most relevant location description shall be chosen from amongst these options)  </xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/geographicCoverage
diagram FRMP_p18.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type GeographicScale_Enum
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
enumeration A
enumeration B
annotation
documentation
Optional. Geographic coverage of expected effect of the measures (whole National, RBD/UoM, specific river-basin, sub-basin or coastal area, specific APSFR, or other (location, water body, etc), if different from location of measure
source <xs:element name="geographicCoverage" type="fd:GeographicScale_Enum" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Geographic coverage of expected effect of the measures (whole National, RBD/UoM, specific river-basin, sub-basin or coastal area, specific APSFR, or other (location, water body, etc), if different from location of measure</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/measureType
diagram FRMP_p19.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type MeasureType_Enum
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration M11
enumeration M21
enumeration M22
enumeration M23
enumeration M24
enumeration M31
enumeration M32
enumeration M33
enumeration M34
enumeration M35
enumeration M41
enumeration M42
enumeration M43
enumeration M44
enumeration M51
enumeration M52
enumeration M53
enumeration M61
annotation
documentation
Required. Choose from the enumeration list

- M11=No Action, No measure is proposed to reduce the flood risk in the APSFR
- or other defined area ,
- M21=Prevention, Avoidance, Measure to prevent the location of new or additional receptors in flood prone areas, such as land use planning policies or regulation
- M22=Prevention, Removal or relocation, Measure to remove receptors from flood prone areas, or to relocate receptors to areas of lower probability of flooding and/or of lower hazard
- M23=Prevention, Reduction, Measure to adapt receptors to reduce the adverse consequences in the event of a flood actions on buildings, public networks, etc...
- M24=Prevention, Other prevention, Other measure to enhance flood risk prevention (may include, flood risk modelling and assessment, flood vulnerability assessment, maintenance programmes or policies etc...)
- M31=Protection Natural flood management / runoff and catchment management, Measures to reduce the flow into natural or artificial drainage systems, such as overland flow interceptors and / or storage, enhancement of infiltration, etc and including in-channel , floodplain works and the reforestation of banks, that restore natural systems to help slow flow and store water.
- M32=Protection, Water flow regulation, Measures involving physical interventions to regulate flows, such as the construction, modification or removal of water retaining structures (e.g., dams or other on-line storage areas or development of existing flow regulation rules), and which have a significant impact on the hydrological regime.
- M33=Protection, Channel, Coastal and Floodplain Works, Measures involving physical interventions in freshwater channels, mountain streams, estuaries, coastal waters and flood- prone areas of land, such as the construction, modification or removal of structures or the alteration of channels, sediment dynamics management, dykes, etc.
- M34=Protection, Surface Water Management, Measures involving physical interventions to reduce surface water flooding, typically, but not exclusively, in an urban environment, such as enhancing artificial drainage capacities or though sustainable drainage systems (SuDS).
- M35=Protection, Other Protection, Other measure to enhance protection against flooding, which may include flood defence asset maintenance programmes or policies
- M41=Preparedness,   Flood Forecasting and Warning,  Measure to establish or enhance a flood forecasting or warning system
- M42=Preparedness, Emergency Event Response Planning / Contingency planning,   Measure to establish or enhance flood event institutional emergency response planning
- M43=Preparedness, Public Awareness and Preparedness, Measure to establish or enhance the public awareness or preparedness for flood events
- M44=Preparedness, Other preparedness, Other measure to establish or enhance preparedness for flood events to reduce adverse consequences
- M51=Recovery and Review (Planning for the recovery and review phase is in principle part of preparedness), Individual and societal recovery, Clean-up and restoration activities (buildings, infrastructure, etc)
- Health and mental health supporting actions, incl. managing stress
- Disaster financial assistance (grants, tax), incl.  disaster legal assistance, disaster unemployment assistance Temporary or permanent relocation
- Other
- M52=Recovery and Review, Environmental recovery, Clean-up and restoration activities (with several sub-topics as mould protection, well-water safety and securing hazardous materials containers)
- M53=Recovery and Review, Other, Other recovery and review Lessons
- learnt from flood events Insurance policies
- M61=Other
source <xs:element name="measureType" type="fd:MeasureType_Enum">
  <xs:annotation>
    <xs:documentation>Required. Choose from the enumeration list

- M11=No Action, No measure is proposed to reduce the flood risk in the APSFR
- or other defined area ,
- M21=Prevention, Avoidance, Measure to prevent the location of new or additional receptors in flood prone areas, such as land use planning policies or regulation
- M22=Prevention, Removal or relocation, Measure to remove receptors from flood prone areas, or to relocate receptors to areas of lower probability of flooding and/or of lower hazard
- M23=Prevention, Reduction, Measure to adapt receptors to reduce the adverse consequences in the event of a flood actions on buildings, public networks, etc...
- M24=Prevention, Other prevention, Other measure to enhance flood risk prevention (may include, flood risk modelling and assessment, flood vulnerability assessment, maintenance programmes or policies etc...)
- M31=Protection Natural flood management / runoff and catchment management, Measures to reduce the flow into natural or artificial drainage systems, such as overland flow interceptors and / or storage, enhancement of infiltration, etc and including in-channel , floodplain works and the reforestation of banks, that restore natural systems to help slow flow and store water.
- M32=Protection, Water flow regulation, Measures involving physical interventions to regulate flows, such as the construction, modification or removal of water retaining structures (e.g., dams or other on-line storage areas or development of existing flow regulation rules), and which have a significant impact on the hydrological regime.
- M33=Protection, Channel, Coastal and Floodplain Works, Measures involving physical interventions in freshwater channels, mountain streams, estuaries, coastal waters and flood- prone areas of land, such as the construction, modification or removal of structures or the alteration of channels, sediment dynamics management, dykes, etc.
- M34=Protection, Surface Water Management, Measures involving physical interventions to reduce surface water flooding, typically, but not exclusively, in an urban environment, such as enhancing artificial drainage capacities or though sustainable drainage systems (SuDS).
- M35=Protection, Other Protection, Other measure to enhance protection against flooding, which may include flood defence asset maintenance programmes or policies
- M41=Preparedness,   Flood Forecasting and Warning,  Measure to establish or enhance a flood forecasting or warning system
- M42=Preparedness, Emergency Event Response Planning / Contingency planning,   Measure to establish or enhance flood event institutional emergency response planning
- M43=Preparedness, Public Awareness and Preparedness, Measure to establish or enhance the public awareness or preparedness for flood events
- M44=Preparedness, Other preparedness, Other measure to establish or enhance preparedness for flood events to reduce adverse consequences
- M51=Recovery and Review (Planning for the recovery and review phase is in principle part of preparedness), Individual and societal recovery, Clean-up and restoration activities (buildings, infrastructure, etc)
- Health and mental health supporting actions, incl. managing stress
- Disaster financial assistance (grants, tax), incl.  disaster legal assistance, disaster unemployment assistance Temporary or permanent relocation
- Other
- M52=Recovery and Review, Environmental recovery, Clean-up and restoration activities (with several sub-topics as mould protection, well-water safety and securing hazardous materials containers)
- M53=Recovery and Review, Other, Other recovery and review Lessons
- learnt from flood events Insurance policies
- M61=Other</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/cost
diagram FRMP_p20.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String2000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 2000
annotation
documentation
Optional. Cost and benefits of the measure(s) (expressed in monetary terms(in €/national currency), quantitative and/or qualitative terms)
source <xs:element name="cost" type="fd:String2000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Cost and benefits of the measure(s) (expressed in monetary terms(in €/national currency), quantitative and/or qualitative terms)</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/costExplanationReference
diagram FRMP_p21.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Optional. Provide document(s) or link(s) to relevant documentation explaining what is included in the cost calculation and/or for providing further details (e.g. whether figures refer to budget allocated or to expenditure to date).
source <xs:element name="costExplanationReference" type="fd:ReferenceType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Provide document(s) or link(s) to relevant documentation explaining what is included in the cost calculation and/or for providing further details (e.g. whether figures refer to budget allocated or to expenditure to date). </xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/otherCommunityAct
diagram FRMP_p22.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String2000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 2000
annotation
documentation
Optional. Other Community Act under which the measure has been implemented (where relevant) (AnnexA.I.4) (less than 2000 characters)
source <xs:element name="otherCommunityAct" type="fd:String2000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Other Community Act under which the measure has been implemented (where relevant) (AnnexA.I.4) (less than 2000 characters)</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/measuresDescriptionAndOtherRelevantInformation
diagram FRMP_p23.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Optional. Other description of the measure or additional useful information of clarification
source <xs:element name="measuresDescriptionAndOtherRelevantInformation" type="fd:ReferenceType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Other description of the measure or additional useful information of clarification </xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/progressReferences
diagram FRMP_p24.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Required. Provide references/links to relevant documentation explaining progress with implementation of measures
source <xs:element name="progressReferences" type="fd:ReferenceType">
  <xs:annotation>
    <xs:documentation>Required. Provide references/links to relevant documentation explaining progress with implementation of measures</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/progressReview
diagram FRMP_p25.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type MeasureCodesProgress_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Not started
enumeration In preparation (e.g. planning)
enumeration On-going (one-off e.g. construction works)
enumeration Completed
annotation
documentation
Required. Please indicate progress made with implementation of measures (more than one option can be selected):


- Not started
- In preparation (e.g. planning)
- On-going (one-off e.g. construction works)
- On-going (recurrent e.g. maintenance works)
- Completed
source <xs:element name="progressReview" type="fd:MeasureCodesProgress_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Please indicate progress made with implementation of measures (more than one option can be selected):


- Not started
- In preparation (e.g. planning)
- On-going (one-off e.g. construction works)
- On-going (recurrent e.g. maintenance works)
- Completed</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/progressReviewDescription
diagram FRMP_p26.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Optional. Provide further explanation of the progress made with implementation of measures and include a timetable for completion where possible
source <xs:element name="progressReviewDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Provide further explanation of the progress made with implementation of measures and include a timetable for completion where possible</xs:documentation>
  </xs:annotation>
</xs:element>

element MeasureCodes/Prioritisation
diagram FRMP_p27.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type Prioritisation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children timetable categoryOfPriority categoryOfPriorityDescription
source <xs:element name="Prioritisation" type="Prioritisation" minOccurs="0"/>

element MeasureCodes/ResponsibleAuthorities
diagram FRMP_p28.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ResponsibleAuthorities
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children nameResponsibleAuthority levelOfResponsibility
source <xs:element name="ResponsibleAuthorities" type="ResponsibleAuthorities" maxOccurs="unbounded"/>

complexType Measures
diagram FRMP_p29.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children wfdMeasureCode MeasureCodes
used by
element FRMP/Measures
annotation
documentation
Optional.
source <xs:complexType name="Measures">
  <xs:annotation>
    <xs:documentation>Optional.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="wfdMeasureCode" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Unique code for the latest version of the WFD Measure Code</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeasureCodes" type="MeasureCodes" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element Measures/wfdMeasureCode
diagram FRMP_p30.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Optional. Unique code for the latest version of the WFD Measure Code
source <xs:element name="wfdMeasureCode" type="fd:String250Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Unique code for the latest version of the WFD Measure Code</xs:documentation>
  </xs:annotation>
</xs:element>

element Measures/MeasureCodes
diagram FRMP_p31.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type MeasureCodes
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children apsfrCode measureCode measureName measureAspect measureLocation geographicCoverage measureType cost costExplanationReference otherCommunityAct measuresDescriptionAndOtherRelevantInformation progressReferences progressReview progressReviewDescription Prioritisation ResponsibleAuthorities
source <xs:element name="MeasureCodes" type="MeasureCodes" maxOccurs="unbounded"/>

complexType Prioritisation
diagram FRMP_p32.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children timetable categoryOfPriority categoryOfPriorityDescription
used by
element MeasureCodes/Prioritisation
annotation
documentation
Optional.
source <xs:complexType name="Prioritisation">
  <xs:annotation>
    <xs:documentation>Optional.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="timetable" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Optional. Timetable for implementation (Annex Part A.II.1 and A.I.4)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="categoryOfPriority" type="fd:PriorityCategories_Enum" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Chosse from list</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="categoryOfPriorityDescription" type="fd:String5000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Provide further explanation in support of the level of priority for the measure.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element Prioritisation/timetable
diagram FRMP_p33.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Optional. Timetable for implementation (Annex Part A.II.1 and A.I.4)
source <xs:element name="timetable" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Optional. Timetable for implementation (Annex Part A.II.1 and A.I.4)</xs:documentation>
  </xs:annotation>
</xs:element>

element Prioritisation/categoryOfPriority
diagram FRMP_p34.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type PriorityCategories_Enum
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
enumeration Very high
enumeration High
enumeration Critical
enumeration Moderate
enumeration Low
annotation
documentation
Optional. Chosse from list
source <xs:element name="categoryOfPriority" type="fd:PriorityCategories_Enum" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Chosse from list</xs:documentation>
  </xs:annotation>
</xs:element>

element Prioritisation/categoryOfPriorityDescription
diagram FRMP_p35.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String5000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 5000
annotation
documentation
Optional. Provide further explanation in support of the level of priority for the measure.
source <xs:element name="categoryOfPriorityDescription" type="fd:String5000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Provide further explanation in support of the level of priority for the measure.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType ResponsibleAuthorities
diagram FRMP_p36.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children nameResponsibleAuthority levelOfResponsibility
used by
element MeasureCodes/ResponsibleAuthorities
annotation
documentation
Required
source <xs:complexType name="ResponsibleAuthorities">
  <xs:annotation>
    <xs:documentation>Required</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="nameResponsibleAuthority" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Provide the international name of responsible authority</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="levelOfResponsibility" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Authority responsible - level of responsibility (e.g; national authority, RBD/UoM authority, regional authorities, municipality/ies, other) or name of authority</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element ResponsibleAuthorities/nameResponsibleAuthority
diagram FRMP_p37.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Optional. Provide the international name of responsible authority
source <xs:element name="nameResponsibleAuthority" type="fd:String250Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Provide the international name of responsible authority</xs:documentation>
  </xs:annotation>
</xs:element>

element ResponsibleAuthorities/levelOfResponsibility
diagram FRMP_p38.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Optional. Authority responsible - level of responsibility (e.g; national authority, RBD/UoM authority, regional authorities, municipality/ies, other) or name of authority
source <xs:element name="levelOfResponsibility" type="fd:String250Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Authority responsible - level of responsibility (e.g; national authority, RBD/UoM authority, regional authorities, municipality/ies, other) or name of authority</xs:documentation>
  </xs:annotation>
</xs:element>

complexType SummaryArticle7.3
diagram FRMP_p39.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children article7.3SummaryAspects article7.3SummaryAspectsDescription
used by
element SummaryOverall/SummaryArticle7.3
annotation
documentation
Required.
source <xs:complexType name="SummaryArticle7.3">
  <xs:annotation>
    <xs:documentation>Required.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="article7.3SummaryAspects" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Do your flood risk management plans take into account the following aspects? Please provide a Yes or No answer</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article7.3SummaryAspectsDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘No’ has been selected from the list for any aspect in the schema element above, provide a reason for this</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element SummaryArticle7.3/article7.3SummaryAspects
diagram FRMP_p40.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type YesNoCode
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Required. Do your flood risk management plans take into account the following aspects? Please provide a Yes or No answer
source <xs:element name="article7.3SummaryAspects" type="fd:YesNoCode">
  <xs:annotation>
    <xs:documentation>Required. Do your flood risk management plans take into account the following aspects? Please provide a Yes or No answer</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryArticle7.3/article7.3SummaryAspectsDescription
diagram FRMP_p41.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Conditional. If ‘No’ has been selected from the list for any aspect in the schema element above, provide a reason for this
source <xs:element name="article7.3SummaryAspectsDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘No’ has been selected from the list for any aspect in the schema element above, provide a reason for this</xs:documentation>
  </xs:annotation>
</xs:element>

complexType SummaryAspects
diagram FRMP_p42.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children anexAspectsIncluded annexAspectsIncludedDescription AnnexA1.5SummaryCostBenefitReference
used by
element SummaryOverall/SummaryAspects
annotation
documentation
Required.
source <xs:complexType name="SummaryAspects">
  <xs:annotation>
    <xs:documentation>Required.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="anexAspectsIncluded" type="fd:YesNoCode" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Indicate which of the following aspects have been taken into account in developing the flood risk management plans (more than one option can be selected).


- Conclusions of PFRA
- Conclusions from FRHM
- Costs and benefits of measures
- The environmental objectives of the Article 4 of the WFD
- Description of objectives
- Summary of measures and their prioritisation
- Planned measures in terms of prevention
- Planned measures in terms of protection
- Planned measures in terms of preparedness including flood forecasts and early warning systems
- Planned measures in terms of the characteristics of the particular river basin or sub-basin
- Cost benefit analysis of measures with transnational effects
- Description of the way in which progress with the plans will be monitored
- Public information and consultation on measures/actions
- Description of coordination process within IRBDs
- Description of coordination process with WFD </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="annexAspectsIncludedDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘No’ has been selected from the list for any aspect in the schema element above, provide a reason for this.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AnnexA1.5SummaryCostBenefitReference" type="fd:ReferenceType"/>
  </xs:sequence>
</xs:complexType>

element SummaryAspects/anexAspectsIncluded
diagram FRMP_p43.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type YesNoCode
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Required. Indicate which of the following aspects have been taken into account in developing the flood risk management plans (more than one option can be selected).


- Conclusions of PFRA
- Conclusions from FRHM
- Costs and benefits of measures
- The environmental objectives of the Article 4 of the WFD
- Description of objectives
- Summary of measures and their prioritisation
- Planned measures in terms of prevention
- Planned measures in terms of protection
- Planned measures in terms of preparedness including flood forecasts and early warning systems
- Planned measures in terms of the characteristics of the particular river basin or sub-basin
- Cost benefit analysis of measures with transnational effects
- Description of the way in which progress with the plans will be monitored
- Public information and consultation on measures/actions
- Description of coordination process within IRBDs
- Description of coordination process with WFD
source <xs:element name="anexAspectsIncluded" type="fd:YesNoCode" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Indicate which of the following aspects have been taken into account in developing the flood risk management plans (more than one option can be selected).


- Conclusions of PFRA
- Conclusions from FRHM
- Costs and benefits of measures
- The environmental objectives of the Article 4 of the WFD
- Description of objectives
- Summary of measures and their prioritisation
- Planned measures in terms of prevention
- Planned measures in terms of protection
- Planned measures in terms of preparedness including flood forecasts and early warning systems
- Planned measures in terms of the characteristics of the particular river basin or sub-basin
- Cost benefit analysis of measures with transnational effects
- Description of the way in which progress with the plans will be monitored
- Public information and consultation on measures/actions
- Description of coordination process within IRBDs
- Description of coordination process with WFD </xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryAspects/annexAspectsIncludedDescription
diagram FRMP_p44.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Conditional. If ‘No’ has been selected from the list for any aspect in the schema element above, provide a reason for this.
source <xs:element name="annexAspectsIncludedDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘No’ has been selected from the list for any aspect in the schema element above, provide a reason for this.</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryAspects/AnnexA1.5SummaryCostBenefitReference
diagram FRMP_p45.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
content complex
children Hyperlink FileName Bookmark DocumentName Subject
source <xs:element name="AnnexA1.5SummaryCostBenefitReference" type="fd:ReferenceType"/>

complexType SummaryClimateChange
diagram FRMP_p46.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children climateChangeImpacts description reference
used by
element SummaryOverall/SummaryClimateChange
annotation
documentation
Required. Definitive table summarising across MS whether the impact of climate change on the occurrence of floods has been considered
source <xs:complexType name="SummaryClimateChange">
  <xs:annotation>
    <xs:documentation>Required. Definitive table summarising across MS whether the impact of climate change on the occurrence of floods has been considered</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="climateChangeImpacts" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Has the impact of climate change on the occurrence of floods been taken into consideration within the FRMP?

Yes/No

If ‘Yes’ provide a reference document or link in the SummaryClimateChange/Reference schema to relevant documentation for example on measures taken to mitigate the expected effects of climate change on the likelihood and potential adverse effects of flooding. If ‘No’, provide a reason/description (text) in  the SummaryClimateChange /Justification schema</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="description" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Provide a reason/description if SummaryClimateChange/ClimateChangeImpacts is set to ‘No’.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. If SummaryClimateChange/ClimateChangeImpacts is set to ‘Yes’ provide document(s) or link(s) to relevant documents describing how the impact of climate change on the occurrence of floods been taken into consideration within the FRMP.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element SummaryClimateChange/climateChangeImpacts
diagram FRMP_p47.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type YesNoCode
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Required. Has the impact of climate change on the occurrence of floods been taken into consideration within the FRMP?

Yes/No

If ‘Yes’ provide a reference document or link in the SummaryClimateChange/Reference schema to relevant documentation for example on measures taken to mitigate the expected effects of climate change on the likelihood and potential adverse effects of flooding. If ‘No’, provide a reason/description (text) in  the SummaryClimateChange /Justification schema
source <xs:element name="climateChangeImpacts" type="fd:YesNoCode">
  <xs:annotation>
    <xs:documentation>Required. Has the impact of climate change on the occurrence of floods been taken into consideration within the FRMP?

Yes/No

If ‘Yes’ provide a reference document or link in the SummaryClimateChange/Reference schema to relevant documentation for example on measures taken to mitigate the expected effects of climate change on the likelihood and potential adverse effects of flooding. If ‘No’, provide a reason/description (text) in  the SummaryClimateChange /Justification schema</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryClimateChange/description
diagram FRMP_p48.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Conditional. Provide a reason/description if SummaryClimateChange/ClimateChangeImpacts is set to ‘No’.
source <xs:element name="description" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. Provide a reason/description if SummaryClimateChange/ClimateChangeImpacts is set to ‘No’.</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryClimateChange/reference
diagram FRMP_p49.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Conditional. If SummaryClimateChange/ClimateChangeImpacts is set to ‘Yes’ provide document(s) or link(s) to relevant documents describing how the impact of climate change on the occurrence of floods been taken into consideration within the FRMP.
source <xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Conditional. If SummaryClimateChange/ClimateChangeImpacts is set to ‘Yes’ provide document(s) or link(s) to relevant documents describing how the impact of climate change on the occurrence of floods been taken into consideration within the FRMP.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType SummaryConsultation
diagram FRMP_p50.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children article10.1PublicConsultationsMechanisms article10.1PublicConsultationsMechanismsOther article10.2ConsultationStakeholdersInvolved article10.2ConsultationStakeholdersInvolvedOther impactPublicParticipation impactPublicParticipationOther article10.2ConsultationStakeholdersInvolvedMechanisms article10.2ConsultationStakeholdersInvolvedMechanismsOther stakeholderConsultationReference
used by
element SummaryOverall/SummaryConsultation
annotation
documentation
Optional. Provide information as to the groups of stakeholders who have been actively involved in the development of the flood risk management plans
source <xs:complexType name="SummaryConsultation">
  <xs:annotation>
    <xs:documentation>Optional. Provide information as to the groups of stakeholders who have been actively involved in the development of the flood risk management plans </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="article10.1PublicConsultationsMechanisms" type="fd:PublicConsultationsMechanisms_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide information as to the mechanism(s) used for informing public and interested parties about the consultation process (more than one option can be selected):


- Media (papers, TV, radio)
- Internet
- Social networking sites
- Printed material
- Direct mailing
- Invitations to stakeholders
- Local Authorities
- Meetings with local population
- Written consultation
- Other   </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article10.1PublicConsultationsMechanismsOther" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other mechanisms used for informing the public and other interested parties about the consultation process.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article10.2ConsultationStakeholdersInvolved" type="fd:ConsultationStakeholdersInvolved_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide information as to the groups of stakeholders who have been actively involved in the development of the flood risk management plans (more than one can be selected):


- Civil Protection Authorities
- Flood Warning/ Defence Authorities
- Drainage Authorities
- Emergency services
- Water supply and sanitation
- Agriculture/farmers
- Energy/hydropower
- Navigation/ports
- Fisheries/aquaculture
- Industry
- NGO's /nature protection
- Consumer Groups
- Local/Regional authorities
- Academia/Research Institutions
- Other  </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article10.2ConsultationStakeholdersInvolvedOther" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other outcome(s) that stakeholder engagement had on the plans groups of stakeholders actively involved in the development of the flood risk management plans.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="impactPublicParticipation" type="fd:ImpactPublicParticipation_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide an indication of the impact of public participation on the final outcome of the plans (more than one option can be selected);


- Changes to selection of measures
- Adjustment to specific measures
- Addition of new information
- Changes to the methodology used
- Commitment to further research
- Commitment to action in the next RBMP cycle
- Other outcome </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="impactPublicParticipationOther" type="fd:String1000Type" minOccurs="0"/>
    <xs:element name="article10.2ConsultationStakeholdersInvolvedMechanisms" type="fd:ConsultationStakeholdersInvolvedMechanisms_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide information as to the mechanisms used to encourage the active involvement of stakeholders (more than one option can be selected).


- Provision of information at relevant public exhibitions or providing notices on public sites
- Establishment of advisory groups
- Stakeholder involvement in drafting
- Formation of alliances
- Other outreach activities with opportunities for discussion and dialogue
- Other  </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article10.2ConsultationStakeholdersInvolvedMechanismsOther" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other mechanisms used to encourage the active involvement of stakeholders.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="stakeholderConsultationReference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to relevant documentation on public information and consultation and on stakeholder engagement.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element SummaryConsultation/article10.1PublicConsultationsMechanisms
diagram FRMP_p51.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type PublicConsultationsMechanisms_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Media (papers, TV, radio)
enumeration Internet
enumeration Social networking sites
enumeration Printed material
enumeration Direct mailing
enumeration Invitations to stakeholders
enumeration Local Authorities
enumeration Meetings with local population
enumeration Written consultation
enumeration Other
annotation
documentation
Required. Provide information as to the mechanism(s) used for informing public and interested parties about the consultation process (more than one option can be selected):


- Media (papers, TV, radio)
- Internet
- Social networking sites
- Printed material
- Direct mailing
- Invitations to stakeholders
- Local Authorities
- Meetings with local population
- Written consultation
- Other
source <xs:element name="article10.1PublicConsultationsMechanisms" type="fd:PublicConsultationsMechanisms_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide information as to the mechanism(s) used for informing public and interested parties about the consultation process (more than one option can be selected):


- Media (papers, TV, radio)
- Internet
- Social networking sites
- Printed material
- Direct mailing
- Invitations to stakeholders
- Local Authorities
- Meetings with local population
- Written consultation
- Other   </xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryConsultation/article10.1PublicConsultationsMechanismsOther
diagram FRMP_p52.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other mechanisms used for informing the public and other interested parties about the consultation process.
source <xs:element name="article10.1PublicConsultationsMechanismsOther" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other mechanisms used for informing the public and other interested parties about the consultation process.</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryConsultation/article10.2ConsultationStakeholdersInvolved
diagram FRMP_p53.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ConsultationStakeholdersInvolved_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Civil Protection Authorities
enumeration Flood Warning/ Defence Authorities
enumeration Drainage Authorities
enumeration Emergency services
enumeration Water supply and sanitation
enumeration Agriculture/farmers
enumeration Energy/hydropower
enumeration Navigation/ports
enumeration Fisheries/aquaculture
enumeration Industry
enumeration NGO's /nature protection
enumeration Consumer Groups
enumeration Local/Regional authorities
enumeration Academia/Research Institutions
enumeration Other
annotation
documentation
Required. Provide information as to the groups of stakeholders who have been actively involved in the development of the flood risk management plans (more than one can be selected):


- Civil Protection Authorities
- Flood Warning/ Defence Authorities
- Drainage Authorities
- Emergency services
- Water supply and sanitation
- Agriculture/farmers
- Energy/hydropower
- Navigation/ports
- Fisheries/aquaculture
- Industry
- NGO's /nature protection
- Consumer Groups
- Local/Regional authorities
- Academia/Research Institutions
- Other
source <xs:element name="article10.2ConsultationStakeholdersInvolved" type="fd:ConsultationStakeholdersInvolved_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide information as to the groups of stakeholders who have been actively involved in the development of the flood risk management plans (more than one can be selected):


- Civil Protection Authorities
- Flood Warning/ Defence Authorities
- Drainage Authorities
- Emergency services
- Water supply and sanitation
- Agriculture/farmers
- Energy/hydropower
- Navigation/ports
- Fisheries/aquaculture
- Industry
- NGO's /nature protection
- Consumer Groups
- Local/Regional authorities
- Academia/Research Institutions
- Other  </xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryConsultation/article10.2ConsultationStakeholdersInvolvedOther
diagram FRMP_p54.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other outcome(s) that stakeholder engagement had on the plans groups of stakeholders actively involved in the development of the flood risk management plans.
source <xs:element name="article10.2ConsultationStakeholdersInvolvedOther" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other outcome(s) that stakeholder engagement had on the plans groups of stakeholders actively involved in the development of the flood risk management plans.</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryConsultation/impactPublicParticipation
diagram FRMP_p55.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ImpactPublicParticipation_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Addition of new information
enumeration Adjustment to specific measures
enumeration Changes to selection of measures
enumeration Changes to the methodology used
enumeration Commitment to action in the next RBMP cycle
enumeration Commitment to further research
enumeration Other outcome
annotation
documentation
Required. Provide an indication of the impact of public participation on the final outcome of the plans (more than one option can be selected);


- Changes to selection of measures
- Adjustment to specific measures
- Addition of new information
- Changes to the methodology used
- Commitment to further research
- Commitment to action in the next RBMP cycle
- Other outcome
source <xs:element name="impactPublicParticipation" type="fd:ImpactPublicParticipation_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide an indication of the impact of public participation on the final outcome of the plans (more than one option can be selected);


- Changes to selection of measures
- Adjustment to specific measures
- Addition of new information
- Changes to the methodology used
- Commitment to further research
- Commitment to action in the next RBMP cycle
- Other outcome </xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryConsultation/impactPublicParticipationOther
diagram FRMP_p56.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
source <xs:element name="impactPublicParticipationOther" type="fd:String1000Type" minOccurs="0"/>

element SummaryConsultation/article10.2ConsultationStakeholdersInvolvedMechanisms
diagram FRMP_p57.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ConsultationStakeholdersInvolvedMechanisms_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Establishment of advisory groups
enumeration Provision of information at relevant public exhibitions or providing notices on public sites
enumeration Stakeholder involvement in drafting
enumeration Formation of alliances
enumeration Other outreach activities with opportunities for discussion and dialogue
enumeration Other
annotation
documentation
Required. Provide information as to the mechanisms used to encourage the active involvement of stakeholders (more than one option can be selected).


- Provision of information at relevant public exhibitions or providing notices on public sites
- Establishment of advisory groups
- Stakeholder involvement in drafting
- Formation of alliances
- Other outreach activities with opportunities for discussion and dialogue
- Other
source <xs:element name="article10.2ConsultationStakeholdersInvolvedMechanisms" type="fd:ConsultationStakeholdersInvolvedMechanisms_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide information as to the mechanisms used to encourage the active involvement of stakeholders (more than one option can be selected).


- Provision of information at relevant public exhibitions or providing notices on public sites
- Establishment of advisory groups
- Stakeholder involvement in drafting
- Formation of alliances
- Other outreach activities with opportunities for discussion and dialogue
- Other  </xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryConsultation/article10.2ConsultationStakeholdersInvolvedMechanismsOther
diagram FRMP_p58.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other mechanisms used to encourage the active involvement of stakeholders.
source <xs:element name="article10.2ConsultationStakeholdersInvolvedMechanismsOther" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other mechanisms used to encourage the active involvement of stakeholders.</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryConsultation/stakeholderConsultationReference
diagram FRMP_p59.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Required. Provide document(s) or link(s) to relevant documentation on public information and consultation and on stakeholder engagement.
source <xs:element name="stakeholderConsultationReference" type="fd:ReferenceType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide document(s) or link(s) to relevant documentation on public information and consultation and on stakeholder engagement.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType SummaryCoordination
diagram FRMP_p60.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children localNationalInternationalCoordination localNationalInternationalCoordinationDescription localNationalInternationalCoordinationReference
used by
element SummaryOverall/SummaryCoordination
annotation
documentation
Required.
source <xs:complexType name="SummaryCoordination">
  <xs:annotation>
    <xs:documentation>Required.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="localNationalInternationalCoordination" type="fd:LocalNationalInternationalCoordination_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide an indication of the level of local and or national or international  coordination (more than one option can be selected):


- Coordination of FRMPs has taken place at the UoM/RBD level within the Member State
- Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries
- There was a need to refer to the solidarity principle*
- UoM/RBD not international
- No Coordination has taken place


If Yes provided for any of the above provide a reference document or link in the LocalNationalInternationalCoordinationReference schema. If No coordination has taken pace’ provide a reason/description (text) in  the LocalNationalInternationalCoordination /Description schema</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="localNationalInternationalCoordinationDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Provide a reason/description if LocalNationalInternationalCoordination is set to ‘No Coordination has taken place’</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="localNationalInternationalCoordinationReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. if LocalNationalInternationalCoordination is set to ‘Yes’ provide document(s) or link(s) to relevant documents describing the coordination process and approach.  </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element SummaryCoordination/localNationalInternationalCoordination
diagram FRMP_p61.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type LocalNationalInternationalCoordination_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries
enumeration Coordination of FRMPs has taken place at the UoM/RBD level within the Member State
enumeration There was a need to refer to the solidarity principle
enumeration UoM/RBD not international
enumeration No Coordination has taken place
annotation
documentation
Required. Provide an indication of the level of local and or national or international  coordination (more than one option can be selected):


- Coordination of FRMPs has taken place at the UoM/RBD level within the Member State
- Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries
- There was a need to refer to the solidarity principle*
- UoM/RBD not international
- No Coordination has taken place


If Yes provided for any of the above provide a reference document or link in the LocalNationalInternationalCoordinationReference schema. If No coordination has taken pace’ provide a reason/description (text) in  the LocalNationalInternationalCoordination /Description schema
source <xs:element name="localNationalInternationalCoordination" type="fd:LocalNationalInternationalCoordination_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide an indication of the level of local and or national or international  coordination (more than one option can be selected):


- Coordination of FRMPs has taken place at the UoM/RBD level within the Member State
- Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries
- There was a need to refer to the solidarity principle*
- UoM/RBD not international
- No Coordination has taken place


If Yes provided for any of the above provide a reference document or link in the LocalNationalInternationalCoordinationReference schema. If No coordination has taken pace’ provide a reason/description (text) in  the LocalNationalInternationalCoordination /Description schema</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryCoordination/localNationalInternationalCoordinationDescription
diagram FRMP_p62.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Conditional. Provide a reason/description if LocalNationalInternationalCoordination is set to ‘No Coordination has taken place’
source <xs:element name="localNationalInternationalCoordinationDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. Provide a reason/description if LocalNationalInternationalCoordination is set to ‘No Coordination has taken place’</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryCoordination/localNationalInternationalCoordinationReference
diagram FRMP_p63.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Conditional. if LocalNationalInternationalCoordination is set to ‘Yes’ provide document(s) or link(s) to relevant documents describing the coordination process and approach.
source <xs:element name="localNationalInternationalCoordinationReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Conditional. if LocalNationalInternationalCoordination is set to ‘Yes’ provide document(s) or link(s) to relevant documents describing the coordination process and approach.  </xs:documentation>
  </xs:annotation>
</xs:element>

complexType SummaryDevelopment
diagram FRMP_p64.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children article9.2CoordinationFRMPandRBMP article9.2CoordinationFRMPandRBMPOther article9.2CoordinationFRMPandRBMPReference
used by
element SummaryOverall/SummaryDevelopment
annotation
documentation
Required.
source <xs:complexType name="SummaryDevelopment">
  <xs:annotation>
    <xs:documentation>Required.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="article9.2CoordinationFRMPandRBMP" type="fd:CoordinationFRMPandRBMP_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Indicate how the development of the FRMPs have been coordinated with the development of the River Basin Management Plan for the WFD (more than one option can be selected):


- Integration of FRMP and RBMP into a single document
- Joint consultation of draft FRMP and RBMP
- Coordination between authorities responsible for developing FRMP and RBMP
- The objectives of the FD have been considered in the WFD RBMPs and PoMs
- Coordination with the environmental objectives in Art.4 of the WFD
- Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures
- Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures
- Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs
- Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure
- The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives
- The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives
- Other   </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article9.2CoordinationFRMPandRBMPOther" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other ways development of the FRMPs have been coordinated with the development of the River Basin Management Plans for the WFD.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article9.2CoordinationFRMPandRBMPReference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to relevant documents referring to how the development of the FRMP has been coordinated with the development of the second River Basin Management Plan.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element SummaryDevelopment/article9.2CoordinationFRMPandRBMP
diagram FRMP_p65.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CoordinationFRMPandRBMP_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Integration of FRMP and RBMP into a single document
enumeration Joint consultation of draft FRMP and RBMP
enumeration Coordination between authorities responsible for developing FRMP and RBMP
enumeration The objectives of the FD have been considered in the WFD RBMPs and PoMs
enumeration Coordination with the environmental objectives in Art.4 of the WFD
enumeration Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures
enumeration Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures
enumeration Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs
enumeration Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure
enumeration The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives
enumeration The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives
enumeration Other
annotation
documentation
Required. Indicate how the development of the FRMPs have been coordinated with the development of the River Basin Management Plan for the WFD (more than one option can be selected):


- Integration of FRMP and RBMP into a single document
- Joint consultation of draft FRMP and RBMP
- Coordination between authorities responsible for developing FRMP and RBMP
- The objectives of the FD have been considered in the WFD RBMPs and PoMs
- Coordination with the environmental objectives in Art.4 of the WFD
- Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures
- Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures
- Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs
- Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure
- The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives
- The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives
- Other
source <xs:element name="article9.2CoordinationFRMPandRBMP" type="fd:CoordinationFRMPandRBMP_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Indicate how the development of the FRMPs have been coordinated with the development of the River Basin Management Plan for the WFD (more than one option can be selected):


- Integration of FRMP and RBMP into a single document
- Joint consultation of draft FRMP and RBMP
- Coordination between authorities responsible for developing FRMP and RBMP
- The objectives of the FD have been considered in the WFD RBMPs and PoMs
- Coordination with the environmental objectives in Art.4 of the WFD
- Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures
- Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures
- Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs
- Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure
- The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives
- The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives
- Other   </xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryDevelopment/article9.2CoordinationFRMPandRBMPOther
diagram FRMP_p66.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other ways development of the FRMPs have been coordinated with the development of the River Basin Management Plans for the WFD.
source <xs:element name="article9.2CoordinationFRMPandRBMPOther" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of the other ways development of the FRMPs have been coordinated with the development of the River Basin Management Plans for the WFD.</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryDevelopment/article9.2CoordinationFRMPandRBMPReference
diagram FRMP_p67.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Required. Provide document(s) or link(s) to relevant documents referring to how the development of the FRMP has been coordinated with the development of the second River Basin Management Plan.
source <xs:element name="article9.2CoordinationFRMPandRBMPReference" type="fd:ReferenceType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide document(s) or link(s) to relevant documents referring to how the development of the FRMP has been coordinated with the development of the second River Basin Management Plan.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType SummaryObjectives
diagram FRMP_p68.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children article7.2References objectives
used by
element SummaryOverall/SummaryObjectives
annotation
documentation
Required.
source <xs:complexType name="SummaryObjectives">
  <xs:annotation>
    <xs:documentation>Required.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="article7.2References" type="xs:int" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to relevant documents covering the following areas related to objectives:


1. Details of the objectives set and how they meet the requirements of Article 7.2 of the FD;
2. The objectives relate to impacts on human health, the environment, cultural heritage and economic activity in terms of nationally consistent indicators to make them measureable (e.g. number of residential properties at risk).
3. The processes for both developing the objectives and selecting and prioritising measures to achieve the stated objectives


As a reminder, If providing documents describe the:


- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 3 above)
- Document name (Provide the name of each reference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the  chapters, sections or page ranges where the relevant information can be found)
- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="objectives" type="fd:ReferenceType"/>
  </xs:sequence>
</xs:complexType>

element SummaryObjectives/article7.2References
diagram FRMP_p69.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type xs:int
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
annotation
documentation
Required. Provide document(s) or link(s) to relevant documents covering the following areas related to objectives:


1. Details of the objectives set and how they meet the requirements of Article 7.2 of the FD;
2. The objectives relate to impacts on human health, the environment, cultural heritage and economic activity in terms of nationally consistent indicators to make them measureable (e.g. number of residential properties at risk).
3. The processes for both developing the objectives and selecting and prioritising measures to achieve the stated objectives


As a reminder, If providing documents describe the:


- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 3 above)
- Document name (Provide the name of each reference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the  chapters, sections or page ranges where the relevant information can be found)
- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).
source <xs:element name="article7.2References" type="xs:int" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide document(s) or link(s) to relevant documents covering the following areas related to objectives:


1. Details of the objectives set and how they meet the requirements of Article 7.2 of the FD;
2. The objectives relate to impacts on human health, the environment, cultural heritage and economic activity in terms of nationally consistent indicators to make them measureable (e.g. number of residential properties at risk).
3. The processes for both developing the objectives and selecting and prioritising measures to achieve the stated objectives


As a reminder, If providing documents describe the:


- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 3 above)
- Document name (Provide the name of each reference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the  chapters, sections or page ranges where the relevant information can be found)
- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryObjectives/objectives
diagram FRMP_p70.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
content complex
children Hyperlink FileName Bookmark DocumentName Subject
source <xs:element name="objectives" type="fd:ReferenceType"/>

complexType SummaryOverall
diagram FRMP_p71.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children SummaryDevelopment SummaryConsultation SummaryAspects SummaryArticle7.3 SummaryClimateChange SummaryObjectives SummaryCoordination
used by
element FRMP/SummaryOverall
annotation
documentation
Required.
source <xs:complexType name="SummaryOverall">
  <xs:annotation>
    <xs:documentation>Required.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="SummaryDevelopment" type="SummaryDevelopment"/>
    <xs:element name="SummaryConsultation" type="SummaryConsultation" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="SummaryAspects" type="SummaryAspects"/>
    <xs:element name="SummaryArticle7.3" type="SummaryArticle7.3"/>
    <xs:element name="SummaryClimateChange" type="SummaryClimateChange"/>
    <xs:element name="SummaryObjectives" type="SummaryObjectives"/>
    <xs:element name="SummaryCoordination" type="SummaryCoordination"/>
  </xs:sequence>
</xs:complexType>

element SummaryOverall/SummaryDevelopment
diagram FRMP_p72.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryDevelopment
properties
isRef 0
content complex
children article9.2CoordinationFRMPandRBMP article9.2CoordinationFRMPandRBMPOther article9.2CoordinationFRMPandRBMPReference
source <xs:element name="SummaryDevelopment" type="SummaryDevelopment"/>

element SummaryOverall/SummaryConsultation
diagram FRMP_p73.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryConsultation
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children article10.1PublicConsultationsMechanisms article10.1PublicConsultationsMechanismsOther article10.2ConsultationStakeholdersInvolved article10.2ConsultationStakeholdersInvolvedOther impactPublicParticipation impactPublicParticipationOther article10.2ConsultationStakeholdersInvolvedMechanisms article10.2ConsultationStakeholdersInvolvedMechanismsOther stakeholderConsultationReference
source <xs:element name="SummaryConsultation" type="SummaryConsultation" minOccurs="0" maxOccurs="unbounded"/>

element SummaryOverall/SummaryAspects
diagram FRMP_p74.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryAspects
properties
isRef 0
content complex
children anexAspectsIncluded annexAspectsIncludedDescription AnnexA1.5SummaryCostBenefitReference
source <xs:element name="SummaryAspects" type="SummaryAspects"/>

element SummaryOverall/SummaryArticle7.3
diagram FRMP_p75.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryArticle7.3
properties
isRef 0
content complex
children article7.3SummaryAspects article7.3SummaryAspectsDescription
source <xs:element name="SummaryArticle7.3" type="SummaryArticle7.3"/>

element SummaryOverall/SummaryClimateChange
diagram FRMP_p76.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryClimateChange
properties
isRef 0
content complex
children climateChangeImpacts description reference
source <xs:element name="SummaryClimateChange" type="SummaryClimateChange"/>

element SummaryOverall/SummaryObjectives
diagram FRMP_p77.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryObjectives
properties
isRef 0
content complex
children article7.2References objectives
source <xs:element name="SummaryObjectives" type="SummaryObjectives"/>

element SummaryOverall/SummaryCoordination
diagram FRMP_p78.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryCoordination
properties
isRef 0
content complex
children localNationalInternationalCoordination localNationalInternationalCoordinationDescription localNationalInternationalCoordinationReference
source <xs:element name="SummaryCoordination" type="SummaryCoordination"/>

complexType SummaryReview
diagram FRMP_p79.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children changesReference summaryFRMPProgress additionalMeasuresReference
used by
element FRMP/SummaryReview
annotation
documentation
Optional.
source <xs:complexType name="SummaryReview">
  <xs:annotation>
    <xs:documentation>Optional.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="changesReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. A summary (less than 10.000 characters) of information on any changes or updates since the publication of the previous version of the FRMP, including a summary of the reviews carried out in compliance with Article 14 (Annex, part B.1).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="summaryFRMPProgress" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. A summary (less than 10.000 characters) of an assessment of progress made toward achievement of the objectives referred to in Article 7.2 - a description of, and explanation for, any measures foreseen in the earlier version of the FRMP which were planned to be undertaken and have not been taken forward (Annex, part B.2 and 3)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="additionalMeasuresReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. A summary (less than 10.000 characters) of any additional measures since publication of the previous version of the FRMP (Annex, part B.4)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element SummaryReview/changesReference
diagram FRMP_p80.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Required. A summary (less than 10.000 characters) of information on any changes or updates since the publication of the previous version of the FRMP, including a summary of the reviews carried out in compliance with Article 14 (Annex, part B.1).
source <xs:element name="changesReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. A summary (less than 10.000 characters) of information on any changes or updates since the publication of the previous version of the FRMP, including a summary of the reviews carried out in compliance with Article 14 (Annex, part B.1).</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryReview/summaryFRMPProgress
diagram FRMP_p81.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Required. A summary (less than 10.000 characters) of an assessment of progress made toward achievement of the objectives referred to in Article 7.2 - a description of, and explanation for, any measures foreseen in the earlier version of the FRMP which were planned to be undertaken and have not been taken forward (Annex, part B.2 and 3)
source <xs:element name="summaryFRMPProgress" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. A summary (less than 10.000 characters) of an assessment of progress made toward achievement of the objectives referred to in Article 7.2 - a description of, and explanation for, any measures foreseen in the earlier version of the FRMP which were planned to be undertaken and have not been taken forward (Annex, part B.2 and 3)</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryReview/additionalMeasuresReference
diagram FRMP_p82.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Required. A summary (less than 10.000 characters) of any additional measures since publication of the previous version of the FRMP (Annex, part B.4)
source <xs:element name="additionalMeasuresReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. A summary (less than 10.000 characters) of any additional measures since publication of the previous version of the FRMP (Annex, part B.4)</xs:documentation>
  </xs:annotation>
</xs:element>

complexType ReferenceType
diagram FRMP_p83.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
children Hyperlink FileName Bookmark DocumentName Subject
used by
elements SummaryReview/additionalMeasuresReference SummaryAspects/AnnexA1.5SummaryCostBenefitReference SummaryDevelopment/article9.2CoordinationFRMPandRBMPReference SummaryReview/changesReference MeasureCodes/costExplanationReference SummaryCoordination/localNationalInternationalCoordinationReference MeasureCodes/measuresDescriptionAndOtherRelevantInformation SummaryObjectives/objectives MeasureCodes/progressReferences SummaryClimateChange/reference SummaryConsultation/stakeholderConsultationReference SummaryReview/summaryFRMPProgress Prioritisation/timetable
annotation
documentation
ReferenceType: Reference Structure
All the references to Methodology
source <xs:complexType name="ReferenceType">
  <xs:annotation>
    <xs:documentation>ReferenceType: Reference Structure
All the references to Methodology</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice>
      <xs:element name="Hyperlink" type="URLType"/>
      <xs:element name="FileName" type="String50Type"/>
    </xs:choice>
    <xs:element name="Bookmark" type="String50Type"/>
    <xs:element name="DocumentName" type="String250Type"/>
    <xs:element name="Subject" type="String250Type"/>
  </xs:sequence>
</xs:complexType>

element ReferenceType/Hyperlink
diagram FRMP_p84.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type URLType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
pattern https?://.*
source <xs:element name="Hyperlink" type="URLType"/>

element ReferenceType/FileName
diagram FRMP_p85.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type String50Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 50
source <xs:element name="FileName" type="String50Type"/>

element ReferenceType/Bookmark
diagram FRMP_p86.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type String50Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 50
source <xs:element name="Bookmark" type="String50Type"/>

element ReferenceType/DocumentName
diagram FRMP_p87.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type String250Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
source <xs:element name="DocumentName" type="String250Type"/>

element ReferenceType/Subject
diagram FRMP_p88.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type String250Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
source <xs:element name="Subject" type="String250Type"/>

simpleType Article_6.6_Justification_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Other justification (please specify)
enumeration Prevention of damage and damge potential through legal regulations for use (e.g. for the embankment foreland)
enumeration Risk of failure of existing defences assessed
enumeration Risk of overtopping of existing flood defences assessed
source <xs:simpleType name="Article_6.6_Justification_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Other justification (please specify)"/>
    <xs:enumeration value="Prevention of damage and damge potential through legal regulations for use (e.g. for the embankment foreland)"/>
    <xs:enumeration value="Risk of failure of existing defences assessed"/>
    <xs:enumeration value="Risk of overtopping of existing flood defences assessed"/>
  </xs:restriction>
</xs:simpleType>

simpleType Article_6.7_Justification_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Groundwater is considered as a contributing source rather than a main source of flooding
enumeration It is difficult to distinguish the impact of groundwater flooding from other sources of flooding
enumeration Only low probability groundwater flooding is assessed to be a hazardous risk
enumeration Other justification
enumeration There is limited information or historical records on groundwater flooding
source <xs:simpleType name="Article_6.7_Justification_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Groundwater is considered as a contributing source rather than a main source of flooding"/>
    <xs:enumeration value="It is difficult to distinguish the impact of groundwater flooding from other sources of flooding"/>
    <xs:enumeration value="Only low probability groundwater flooding is assessed to be a hazardous risk"/>
    <xs:enumeration value="Other justification"/>
    <xs:enumeration value="There is limited information or historical records on groundwater flooding"/>
  </xs:restriction>
</xs:simpleType>

simpleType CategoryFloods_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Past flood
enumeration Potential future floods
annotation
documentation
Can be past flood (past) or potential future flood (future)
source <xs:simpleType name="CategoryFloods_Enum">
  <xs:annotation>
    <xs:documentation>Can be past flood (past) or potential future flood (future)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Past flood"/>
    <xs:enumeration value="Potential future floods"/>
  </xs:restriction>
</xs:simpleType>

simpleType CharacteristicsofFlooding_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration A31 - Flash Flood
enumeration A32 - Snow Melt Flood
enumeration A33 - Other rapid onset
enumeration A34 - Medium onset flood
enumeration A35 - Slow onset flood
enumeration A36 - Debris Flow
enumeration A37 - High Velocity Flow
enumeration A38 - Deep Flood
enumeration A39 - Other
enumeration A40 - No data available on characteristics of flooding
enumeration A41 - Characteristics of flooding uncertain
annotation
documentation
Define relevant characteristics of flooding. The list are in line with table A3 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.

A36=Debris Flow: A flood conveying a high degree of debris.

A39=Other characteristics, or no special characteristics.

A40=No data available on characteristics of flooding,

A41=Characteristics of flooding uncertain.
source <xs:simpleType name="CharacteristicsofFlooding_Enum">
  <xs:annotation>
    <xs:documentation>Define relevant characteristics of flooding. The list are in line with table A3 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.

A36=Debris Flow: A flood conveying a high degree of debris.

A39=Other characteristics, or no special characteristics.

A40=No data available on characteristics of flooding,

A41=Characteristics of flooding uncertain.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="A31 - Flash Flood"/>
    <xs:enumeration value="A32 - Snow Melt Flood"/>
    <xs:enumeration value="A33 - Other rapid onset"/>
    <xs:enumeration value="A34 - Medium onset flood"/>
    <xs:enumeration value="A35 - Slow onset flood"/>
    <xs:enumeration value="A36 - Debris Flow"/>
    <xs:enumeration value="A37 - High Velocity Flow"/>
    <xs:enumeration value="A38 - Deep Flood"/>
    <xs:enumeration value="A39 - Other"/>
    <xs:enumeration value="A40 - No data available on characteristics of flooding"/>
    <xs:enumeration value="A41 - Characteristics of flooding uncertain"/>
  </xs:restriction>
</xs:simpleType>

simpleType ClimateChange_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration No
enumeration Yes
enumeration Yes but not all sources
enumeration Yes but not for all maps
source <xs:simpleType name="ClimateChange_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="No"/>
    <xs:enumeration value="Yes"/>
    <xs:enumeration value="Yes but not all sources"/>
    <xs:enumeration value="Yes but not for all maps"/>
  </xs:restriction>
</xs:simpleType>

simpleType ConsultationStakeholdersInvolved_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element SummaryConsultation/article10.2ConsultationStakeholdersInvolved
facets
Kind Value annotation
enumeration Civil Protection Authorities
enumeration Flood Warning/ Defence Authorities
enumeration Drainage Authorities
enumeration Emergency services
enumeration Water supply and sanitation
enumeration Agriculture/farmers
enumeration Energy/hydropower
enumeration Navigation/ports
enumeration Fisheries/aquaculture
enumeration Industry
enumeration NGO's /nature protection
enumeration Consumer Groups
enumeration Local/Regional authorities
enumeration Academia/Research Institutions
enumeration Other
annotation
documentation
Table summarising across MS, the groups of stakeholders who have been actively involved in the development of the FRMPs
source <xs:simpleType name="ConsultationStakeholdersInvolved_Enum">
  <xs:annotation>
    <xs:documentation>Table summarising across MS, the groups of stakeholders who have been actively involved in the development of the FRMPs</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Civil Protection Authorities"/>
    <xs:enumeration value="Flood Warning/ Defence Authorities"/>
    <xs:enumeration value="Drainage Authorities"/>
    <xs:enumeration value="Emergency services"/>
    <xs:enumeration value="Water supply and sanitation"/>
    <xs:enumeration value="Agriculture/farmers"/>
    <xs:enumeration value="Energy/hydropower"/>
    <xs:enumeration value="Navigation/ports"/>
    <xs:enumeration value="Fisheries/aquaculture"/>
    <xs:enumeration value="Industry"/>
    <xs:enumeration value="NGO's /nature protection"/>
    <xs:enumeration value="Consumer Groups"/>
    <xs:enumeration value="Local/Regional authorities"/>
    <xs:enumeration value="Academia/Research Institutions"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType ConsultationStakeholdersInvolvedMechanisms_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element SummaryConsultation/article10.2ConsultationStakeholdersInvolvedMechanisms
facets
Kind Value annotation
enumeration Establishment of advisory groups
enumeration Provision of information at relevant public exhibitions or providing notices on public sites
enumeration Stakeholder involvement in drafting
enumeration Formation of alliances
enumeration Other outreach activities with opportunities for discussion and dialogue
enumeration Other
annotation
documentation
Table summarising across MS, the mechanisms used to encourage the active involvement of stakeholders in the development of the FRMPs
source <xs:simpleType name="ConsultationStakeholdersInvolvedMechanisms_Enum">
  <xs:annotation>
    <xs:documentation>Table summarising across MS, the mechanisms used to encourage the active involvement of stakeholders in the development of the FRMPs</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Establishment of advisory groups"/>
    <xs:enumeration value="Provision of information at relevant public exhibitions or providing notices on public sites"/>
    <xs:enumeration value="Stakeholder involvement in drafting"/>
    <xs:enumeration value="Formation of alliances"/>
    <xs:enumeration value="Other outreach activities with opportunities for discussion and dialogue"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType CoordinateType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
pattern \-{0,1}[0-9]{1,2}\.[0-9]{1,5}
annotation
documentation
Format Decimal degrees (-)dd.ddddd
source <xs:simpleType name="CoordinateType">
  <xs:annotation>
    <xs:documentation>Format Decimal degrees (-)dd.ddddd</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="\-{0,1}[0-9]{1,2}\.[0-9]{1,5}"/>
  </xs:restriction>
</xs:simpleType>

simpleType CoordinationFRMPandRBMP_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element SummaryDevelopment/article9.2CoordinationFRMPandRBMP
facets
Kind Value annotation
enumeration Integration of FRMP and RBMP into a single document
enumeration Joint consultation of draft FRMP and RBMP
enumeration Coordination between authorities responsible for developing FRMP and RBMP
enumeration The objectives of the FD have been considered in the WFD RBMPs and PoMs
enumeration Coordination with the environmental objectives in Art.4 of the WFD
enumeration Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures
enumeration Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures
enumeration Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs
enumeration Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure
enumeration The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives
enumeration The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives
enumeration Other
source <xs:simpleType name="CoordinationFRMPandRBMP_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Integration of FRMP and RBMP into a single document"/>
    <xs:enumeration value="Joint consultation of draft FRMP and RBMP"/>
    <xs:enumeration value="Coordination between authorities responsible for developing FRMP and RBMP"/>
    <xs:enumeration value="The objectives of the FD have been considered in the WFD RBMPs and PoMs"/>
    <xs:enumeration value="Coordination with the environmental objectives in Art.4 of the WFD"/>
    <xs:enumeration value="Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures"/>
    <xs:enumeration value="Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures"/>
    <xs:enumeration value="Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs"/>
    <xs:enumeration value="Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure"/>
    <xs:enumeration value="The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives"/>
    <xs:enumeration value="The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType CountryCode_enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element FRMP/c_Cd
facets
Kind Value annotation
enumeration AT
enumeration BE
enumeration BG
enumeration CH
enumeration CZ
enumeration CY
enumeration DE
enumeration DK
enumeration EE
enumeration EL
enumeration ES
enumeration FI
enumeration FR
enumeration HR
enumeration HU
enumeration IE
enumeration IS
enumeration IT
enumeration LT
enumeration LU
enumeration LV
enumeration MT
enumeration NO
enumeration NL
enumeration PL
enumeration PT
enumeration RO
enumeration SE
enumeration SI
enumeration SK
enumeration TR
enumeration UK
annotation
documentation
Unique 2 character ISO Code for the EU Member States
source <xs:simpleType name="CountryCode_enum">
  <xs:annotation>
    <xs:documentation>Unique 2 character ISO Code for the EU Member States</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AT"/>
    <xs:enumeration value="BE"/>
    <xs:enumeration value="BG"/>
    <xs:enumeration value="CH"/>
    <xs:enumeration value="CZ"/>
    <xs:enumeration value="CY"/>
    <xs:enumeration value="DE"/>
    <xs:enumeration value="DK"/>
    <xs:enumeration value="EE"/>
    <xs:enumeration value="EL"/>
    <xs:enumeration value="ES"/>
    <xs:enumeration value="FI"/>
    <xs:enumeration value="FR"/>
    <xs:enumeration value="HR"/>
    <xs:enumeration value="HU"/>
    <xs:enumeration value="IE"/>
    <xs:enumeration value="IS"/>
    <xs:enumeration value="IT"/>
    <xs:enumeration value="LT"/>
    <xs:enumeration value="LU"/>
    <xs:enumeration value="LV"/>
    <xs:enumeration value="MT"/>
    <xs:enumeration value="NO"/>
    <xs:enumeration value="NL"/>
    <xs:enumeration value="PL"/>
    <xs:enumeration value="PT"/>
    <xs:enumeration value="RO"/>
    <xs:enumeration value="SE"/>
    <xs:enumeration value="SI"/>
    <xs:enumeration value="SK"/>
    <xs:enumeration value="TR"/>
    <xs:enumeration value="UK"/>
  </xs:restriction>
</xs:simpleType>

simpleType CriteriaForDeterminationFloodRisk_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Flood levels flow velocity depth
enumeration Level of damage caused - High
enumeration Level of damage caused - Low
enumeration Level of damage caused - Medium
enumeration Number of buildings affected
enumeration Number of inhabitants potentially affected
enumeration Number of properties affected
enumeration Specific weighting systems defined to assess significance
enumeration The presence of contaminated sited in flood prone areas
enumeration Number of fatalities
enumeration Value of property affected
enumeration Area of land covered by water
enumeration Economic losses realised
enumeration Area of crops destroyed
enumeration Damage to the environment and WFD protected areas
enumeration Damage to cultural heritage
enumeration Recurrence periods
enumeration Recurrence periods in combination with land use
enumeration Product of velocity and depth
enumeration Whether floods have occurred in the past
enumeration Predictive modelling
enumeration Other
source <xs:simpleType name="CriteriaForDeterminationFloodRisk_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Flood levels flow velocity depth"/>
    <xs:enumeration value="Level of damage caused - High"/>
    <xs:enumeration value="Level of damage caused - Low"/>
    <xs:enumeration value="Level of damage caused - Medium"/>
    <xs:enumeration value="Number of buildings affected"/>
    <xs:enumeration value="Number of inhabitants potentially affected"/>
    <xs:enumeration value="Number of properties affected"/>
    <xs:enumeration value="Specific weighting systems defined to assess significance"/>
    <xs:enumeration value="The presence of contaminated sited in flood prone areas"/>
    <xs:enumeration value="Number of fatalities"/>
    <xs:enumeration value="Value of property affected"/>
    <xs:enumeration value="Area of land covered by water"/>
    <xs:enumeration value="Economic losses realised"/>
    <xs:enumeration value="Area of crops destroyed"/>
    <xs:enumeration value="Damage to the environment and WFD protected areas"/>
    <xs:enumeration value="Damage to cultural heritage"/>
    <xs:enumeration value="Recurrence periods"/>
    <xs:enumeration value="Recurrence periods in combination with land use"/>
    <xs:enumeration value="Product of velocity and depth"/>
    <xs:enumeration value="Whether floods have occurred in the past"/>
    <xs:enumeration value="Predictive modelling"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType CriteriaForExclusionOrInclusion_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Changes in land use hace increased vulnerability of the area to flooding
enumeration engineered system now in place
enumeration Flood defences
enumeration Flood defences not in place of not fully
enumeration High level of damage expected
enumeration Potential risk to cultural heritage
enumeration Potential risk to economic activity
enumeration Potential risk to human health
enumeration Potential risk to the environment
enumeration Risk from a particular source is no longer relevant
enumeration Other non-structural mitigation measures fully implemented
enumeration Drainage systems improved
enumeration Low damage expected
enumeration Risk not significant based on historic record
enumeration Other
source <xs:simpleType name="CriteriaForExclusionOrInclusion_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Changes in land use hace increased vulnerability of the area to flooding"/>
    <xs:enumeration value="engineered system now in place"/>
    <xs:enumeration value="Flood defences"/>
    <xs:enumeration value="Flood defences not in place of not fully"/>
    <xs:enumeration value="High level of damage expected"/>
    <xs:enumeration value="Potential risk to cultural heritage"/>
    <xs:enumeration value="Potential risk to economic activity"/>
    <xs:enumeration value="Potential risk to human health"/>
    <xs:enumeration value="Potential risk to the environment"/>
    <xs:enumeration value="Risk from a particular source is no longer relevant"/>
    <xs:enumeration value="Other non-structural mitigation measures fully implemented"/>
    <xs:enumeration value="Drainage systems improved"/>
    <xs:enumeration value="Low damage expected"/>
    <xs:enumeration value="Risk not significant based on historic record"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType DataConfidentialityClassificationCode_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
attribute FRMP/@classificationCode
facets
Kind Value annotation
enumeration 001 - Unclassified
enumeration 003 - Confidential
annotation
documentation
Codes for data security classification:
001 = Unclassified - available for general circulation and public
003 = Confidential - available for EC reporting only
source <xs:simpleType name="DataConfidentialityClassificationCode_Enum">
  <xs:annotation>
    <xs:documentation>Codes for data security classification:
001 = Unclassified - available for general circulation and public
003 = Confidential - available for EC reporting only
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="001 - Unclassified"/>
    <xs:enumeration value="003 - Confidential"/>
  </xs:restriction>
</xs:simpleType>

simpleType DateTypeYearType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (xs:date, xs:gYear, xs:gYearMonth, NumberExceptionType)
annotation
documentation
Both date type yyyy-mm-dd, yyyy-mm and yyyy allowed and the exception types (-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable)
source <xs:simpleType name="DateTypeYearType">
  <xs:annotation>
    <xs:documentation>Both date type yyyy-mm-dd, yyyy-mm and yyyy allowed and the exception types (-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable)</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="xs:date xs:gYear xs:gYearMonth NumberExceptionType"/>
</xs:simpleType>

simpleType ElementsProbability_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Article 6.6 applied
enumeration Article 6.7 applied
enumeration Flooding Extent
enumeration Other
enumeration Water depth/level
enumeration Water flow/velocity
source <xs:simpleType name="ElementsProbability_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Article 6.6 applied"/>
    <xs:enumeration value="Article 6.7 applied"/>
    <xs:enumeration value="Flooding Extent"/>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="Water depth/level"/>
    <xs:enumeration value="Water flow/velocity"/>
  </xs:restriction>
</xs:simpleType>

simpleType FeatureUniqueCodeType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
simpleType FeatureUniqueCodeTypeEX
facets
Kind Value annotation
minLength 1
maxLength 40
whiteSpace collapse
annotation
documentation
Type for unique code within the Member State for the feature
source <xs:simpleType name="FeatureUniqueCodeType">
  <xs:annotation>
    <xs:documentation>Type for unique code within the Member State for the feature</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="40"/>
    <xs:whiteSpace value="collapse"/>
  </xs:restriction>
</xs:simpleType>

simpleType FeatureUniqueCodeTypeEX
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (FeatureUniqueCodeType, NumberExceptionType)
annotation
documentation
Type for unique code within the Member State for the feature with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.
source <xs:simpleType name="FeatureUniqueCodeTypeEX">
  <xs:annotation>
    <xs:documentation>Type for unique code within the Member State for the feature with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="FeatureUniqueCodeType NumberExceptionType"/>
</xs:simpleType>

simpleType FeatureUniqueEUCodeType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements MeasureCodes/apsfrCode FRMP/euuomCode
facets
Kind Value annotation
minLength 3
maxLength 42
annotation
documentation
Type for EU code, allows up to 42 characters (unique code within MS prefixed with country ISO 2 character code
source <xs:simpleType name="FeatureUniqueEUCodeType">
  <xs:annotation>
    <xs:documentation>Type for EU code, allows up to 42 characters (unique code within MS prefixed with country ISO 2 character code</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="42"/>
  </xs:restriction>
</xs:simpleType>

simpleType FloodSourcesMapped_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Map shows flood extents for a single source
enumeration Map shows flood extent for multiple
enumeration Map shows flood extent for multiple sources resulting from combined modelling of flood sources
source <xs:simpleType name="FloodSourcesMapped_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Map shows flood extents for a single source"/>
    <xs:enumeration value="Map shows flood extent for multiple"/>
    <xs:enumeration value="Map shows flood extent for multiple sources resulting from combined modelling of flood sources"/>
  </xs:restriction>
</xs:simpleType>

simpleType GeographicScale_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element MeasureCodes/geographicCoverage
facets
Kind Value annotation
enumeration A
enumeration B
source <xs:simpleType name="GeographicScale_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="A"/>
    <xs:enumeration value="B"/>
  </xs:restriction>
</xs:simpleType>

simpleType HistorialSignificantFloodsCriteria_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Flooded area
enumeration Level of damage - High
enumeration Level of damage - Low
enumeration Level of damage - Medium
enumeration Number of buildings affected
enumeration Required amount of money in compensation
enumeration Residents in flooded area
enumeration Required common of moeny in compesation
enumeration Return period, extent and duration of occurrence
enumeration Whether a specific flood warning level was triggered
enumeration Specific weighting systems defined to assess significance
enumeration Expert Judgement
enumeration Other
source <xs:simpleType name="HistorialSignificantFloodsCriteria_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Flooded area"/>
    <xs:enumeration value="Level of damage - High"/>
    <xs:enumeration value="Level of damage - Low"/>
    <xs:enumeration value="Level of damage - Medium"/>
    <xs:enumeration value="Number of buildings affected"/>
    <xs:enumeration value="Required amount of money in compensation"/>
    <xs:enumeration value="Residents in flooded area"/>
    <xs:enumeration value="Required common of moeny in compesation"/>
    <xs:enumeration value="Return period, extent and duration of occurrence"/>
    <xs:enumeration value="Whether a specific flood warning level was triggered"/>
    <xs:enumeration value="Specific weighting systems defined to assess significance"/>
    <xs:enumeration value="Expert Judgement"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType ImpactPublicParticipation_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element SummaryConsultation/impactPublicParticipation
facets
Kind Value annotation
enumeration Addition of new information
enumeration Adjustment to specific measures
enumeration Changes to selection of measures
enumeration Changes to the methodology used
enumeration Commitment to action in the next RBMP cycle
enumeration Commitment to further research
enumeration Other outcome
source <xs:simpleType name="ImpactPublicParticipation_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Addition of new information"/>
    <xs:enumeration value="Adjustment to specific measures"/>
    <xs:enumeration value="Changes to selection of measures"/>
    <xs:enumeration value="Changes to the methodology used"/>
    <xs:enumeration value="Commitment to action in the next RBMP cycle"/>
    <xs:enumeration value="Commitment to further research"/>
    <xs:enumeration value="Other outcome"/>
  </xs:restriction>
</xs:simpleType>

simpleType InternationalInformationExchange_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Bilateral border water commissions
enumeration Informal arrangements (groups discussions and exchange of information)
enumeration International coordination and working groups
enumeration International River Commission
enumeration Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration No information exchange
enumeration Other
enumeration Regulations in place to enable exchange of information at international level
enumeration Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
source <xs:simpleType name="InternationalInformationExchange_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Bilateral border water commissions"/>
    <xs:enumeration value="Informal arrangements (groups discussions and exchange of information)"/>
    <xs:enumeration value="International coordination and working groups"/>
    <xs:enumeration value="International River Commission"/>
    <xs:enumeration value="Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action"/>
    <xs:enumeration value="No information exchange"/>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="Regulations in place to enable exchange of information at international level"/>
    <xs:enumeration value="Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)"/>
  </xs:restriction>
</xs:simpleType>

simpleType IssuesArticle4.2.d_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Areas of economic activity
enumeration Floodplains as natural retention areas
enumeration Impacts of climate change on the occurrence of floods
enumeration Long-term developments: development of infrastructure
enumeration Long-term developments: development of settlements
enumeration Long-term developments: rural land-use change
enumeration Position of watercourses and their general hydrological and geomorphological characteristics
enumeration The effectiveness of existing man-made flood defence infrastructures
enumeration The position of populated areas
enumeration Topography
source <xs:simpleType name="IssuesArticle4.2.d_Enum">
  <xs:annotation>
    <xs:documentation/>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Areas of economic activity"/>
    <xs:enumeration value="Floodplains as natural retention areas"/>
    <xs:enumeration value="Impacts of climate change on the occurrence of floods"/>
    <xs:enumeration value="Long-term developments: development of infrastructure"/>
    <xs:enumeration value="Long-term developments: development of settlements"/>
    <xs:enumeration value="Long-term developments: rural land-use change"/>
    <xs:enumeration value="Position of watercourses and their general hydrological and geomorphological characteristics"/>
    <xs:enumeration value="The effectiveness of existing man-made flood defence infrastructures"/>
    <xs:enumeration value="The position of populated areas"/>
    <xs:enumeration value="Topography"/>
  </xs:restriction>
</xs:simpleType>

simpleType LanguageCode_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
attribute FRMP/@languageCode
facets
Kind Value annotation
enumeration bg
enumeration es
enumeration cs
enumeration da
enumeration de
enumeration et
enumeration el
enumeration en
enumeration fr
enumeration ga
enumeration hr
enumeration ic
enumeration it
enumeration lv
enumeration lt
enumeration hu
enumeration mt
enumeration nl
enumeration no
enumeration pl
enumeration pt
enumeration ro
enumeration sk
enumeration sl
enumeration sr
enumeration tr
enumeration fi
enumeration sv
annotation
documentation
Unique 2 character ISO Code for the EU Member States language (the codes used are the ISO codes 639-1 in force, alpha-2 code)

bg=Bulgarian
es=Spanish
cs=Czech
da=Danish
de=German
et=Estonian
el=Greek
en=English
fr=French
ga=Irish
hr=Croatian
ic=Icelandic
it=Italian
lv=Latvian
lt=Lithuanian
hu=Hungarian
mt=Maltese
nl=Dutch
no=Norwegian
pl=Polish
pt=Portuguese
ro=Romanian
sk=Slovak
sl=Slovenian
sr=Serbian
tr=Tyrkish
fi=Finnish
sv=Swedish
source <xs:simpleType name="LanguageCode_Enum">
  <xs:annotation>
    <xs:documentation>Unique 2 character ISO Code for the EU Member States language (the codes used are the ISO codes 639-1 in force, alpha-2 code)

bg=Bulgarian
es=Spanish
cs=Czech
da=Danish
de=German
et=Estonian
el=Greek
en=English
fr=French
ga=Irish
hr=Croatian
ic=Icelandic
it=Italian
lv=Latvian
lt=Lithuanian
hu=Hungarian
mt=Maltese
nl=Dutch
no=Norwegian
pl=Polish
pt=Portuguese
ro=Romanian
sk=Slovak
sl=Slovenian
sr=Serbian
tr=Tyrkish
fi=Finnish
sv=Swedish</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="bg"/>
    <xs:enumeration value="es"/>
    <xs:enumeration value="cs"/>
    <xs:enumeration value="da"/>
    <xs:enumeration value="de"/>
    <xs:enumeration value="et"/>
    <xs:enumeration value="el"/>
    <xs:enumeration value="en"/>
    <xs:enumeration value="fr"/>
    <xs:enumeration value="ga"/>
    <xs:enumeration value="hr"/>
    <xs:enumeration value="ic"/>
    <xs:enumeration value="it"/>
    <xs:enumeration value="lv"/>
    <xs:enumeration value="lt"/>
    <xs:enumeration value="hu"/>
    <xs:enumeration value="mt"/>
    <xs:enumeration value="nl"/>
    <xs:enumeration value="no"/>
    <xs:enumeration value="pl"/>
    <xs:enumeration value="pt"/>
    <xs:enumeration value="ro"/>
    <xs:enumeration value="sk"/>
    <xs:enumeration value="sl"/>
    <xs:enumeration value="sr"/>
    <xs:enumeration value="tr"/>
    <xs:enumeration value="fi"/>
    <xs:enumeration value="sv"/>
  </xs:restriction>
</xs:simpleType>

simpleType LocalNationalInternationalCoordination_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element SummaryCoordination/localNationalInternationalCoordination
facets
Kind Value annotation
enumeration Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries
enumeration Coordination of FRMPs has taken place at the UoM/RBD level within the Member State
enumeration There was a need to refer to the solidarity principle
enumeration UoM/RBD not international
enumeration No Coordination has taken place
annotation
documentation
Table showing whether coordination at the appropriate level has taken place across MS
source <xs:simpleType name="LocalNationalInternationalCoordination_Enum">
  <xs:annotation>
    <xs:documentation>Table showing whether coordination at the appropriate level has taken place across MS</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries"/>
    <xs:enumeration value="Coordination of FRMPs has taken place at the UoM/RBD level within the Member State"/>
    <xs:enumeration value="There was a need to refer to the solidarity principle"/>
    <xs:enumeration value="UoM/RBD not international"/>
    <xs:enumeration value="No Coordination has taken place"/>
  </xs:restriction>
</xs:simpleType>

simpleType MeasureAspect_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element MeasureCodes/measureAspect
facets
Kind Value annotation
enumeration Aggregated
enumeration Individual
source <xs:simpleType name="MeasureAspect_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Aggregated"/>
    <xs:enumeration value="Individual"/>
  </xs:restriction>
</xs:simpleType>

simpleType MeasureCodesProgress_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element MeasureCodes/progressReview
facets
Kind Value annotation
enumeration Not started
enumeration In preparation (e.g. planning)
enumeration On-going (one-off e.g. construction works)
enumeration Completed
source <xs:simpleType name="MeasureCodesProgress_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Not started"/>
    <xs:enumeration value="In preparation (e.g. planning)"/>
    <xs:enumeration value="On-going (one-off e.g. construction works)"/>
    <xs:enumeration value="Completed"/>
  </xs:restriction>
</xs:simpleType>

simpleType MeasureType_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element MeasureCodes/measureType
facets
Kind Value annotation
enumeration M11
enumeration M21
enumeration M22
enumeration M23
enumeration M24
enumeration M31
enumeration M32
enumeration M33
enumeration M34
enumeration M35
enumeration M41
enumeration M42
enumeration M43
enumeration M44
enumeration M51
enumeration M52
enumeration M53
enumeration M61
annotation
documentation

M11=No Action, No measure is proposed to reduce the flood risk in the APSFR  or other defined area ,
M21=Prevention, Avoidance, Measure to prevent the location of new or additional receptors in flood prone areas, such as land use planning policies or regulation
M22=Prevention, Removal or relocation, Measure to remove receptors from flood prone areas, or to relocate receptors to areas of lower probability of flooding and/or of lower hazard
M23=Prevention, Reduction, Measure to adapt receptors to reduce the adverse consequences in the event of a flood actions on buildings, public networks, etc...
M24=Prevention, Other prevention, Other measure to enhance flood risk prevention (may include, flood risk modelling and assessment, flood vulnerability assessment, maintenance programmes or policies etc...)
M31=Protection Natural flood management / runoff and catchment management, Measures to reduce the flow into natural or artificial drainage systems, such as overland flow interceptors and / or storage,  enhancement of infiltration, etc and including in-channel , floodplain works and the reforestation of banks, that restore natural systems to help slow flow and store water.
M32=Protection, Water flow regulation, Measures involving physical interventions to regulate flows, such as the construction, modification or removal of water retaining structures (e.g., dams or other on-line storage areas or development of existing flow regulation rules), and which have a significant impact on the hydrological regime.
M33=Protection, Channel, Coastal and Floodplain Works, Measures involving physical interventions in freshwater channels, mountain streams, estuaries, coastal waters and flood-prone areas of land, such as the construction, modification or removal of structures or the alteration of channels, sediment dynamics management, dykes, etc.
M34=Protection, Surface Water Management, Measures involving physical interventions to reduce surface water flooding, typically, but not exclusively, in an urban environment, such as enhancing artificial drainage capacities or though sustainable drainage systems (SuDS).
M35=Protection, Other Protection, Other measure to enhance protection against flooding, which may include flood defence asset maintenance programmes or policies
M41=Preparedness, Flood Forecasting and Warning, Measure to establish or enhance a flood forecasting or warning system
M42=Preparedness, Emergency Event Response Planning / Contingency planning, Measure to establish or enhance flood event institutional emergency response planning
M43=Preparedness, Public Awareness and Preparedness, Measure to establish or enhance the public awareness or preparedness for flood events
M44=Preparedness, Other preparedness, Other measure to establish or enhance preparedness for flood events to reduce adverse consequences
M51=Recovery and Review (Planning for the recovery and review phase is in principle part of preparedness), Individual and societal recovery, Clean-up and restoration activities (buildings, infrastructure, etc)
Health and mental health supporting actions, incl. managing stress
Disaster financial assistance (grants, tax), incl.  disaster legal assistance, disaster unemployment assistance
Temporary or permanent relocation
Other
M52=Recovery and Review, Environmental recovery, Clean-up and restoration activities (with several sub-topics as mould protection, well-water safety and securing hazardous materials containers)
M53=Recovery and Review, Other, Other recovery and review Lessons learnt from flood events
Insurance policies
M61=Other
source <xs:simpleType name="MeasureType_Enum">
  <xs:annotation>
    <xs:documentation>
M11=No Action, No measure is proposed to reduce the flood risk in the APSFR  or other defined area ,
M21=Prevention, Avoidance, Measure to prevent the location of new or additional receptors in flood prone areas, such as land use planning policies or regulation
M22=Prevention, Removal or relocation, Measure to remove receptors from flood prone areas, or to relocate receptors to areas of lower probability of flooding and/or of lower hazard
M23=Prevention, Reduction, Measure to adapt receptors to reduce the adverse consequences in the event of a flood actions on buildings, public networks, etc...
M24=Prevention, Other prevention, Other measure to enhance flood risk prevention (may include, flood risk modelling and assessment, flood vulnerability assessment, maintenance programmes or policies etc...)
M31=Protection Natural flood management / runoff and catchment management, Measures to reduce the flow into natural or artificial drainage systems, such as overland flow interceptors and / or storage,  enhancement of infiltration, etc and including in-channel , floodplain works and the reforestation of banks, that restore natural systems to help slow flow and store water.
M32=Protection, Water flow regulation, Measures involving physical interventions to regulate flows, such as the construction, modification or removal of water retaining structures (e.g., dams or other on-line storage areas or development of existing flow regulation rules), and which have a significant impact on the hydrological regime.
M33=Protection, Channel, Coastal and Floodplain Works, Measures involving physical interventions in freshwater channels, mountain streams, estuaries, coastal waters and flood-prone areas of land, such as the construction, modification or removal of structures or the alteration of channels, sediment dynamics management, dykes, etc.
M34=Protection, Surface Water Management, Measures involving physical interventions to reduce surface water flooding, typically, but not exclusively, in an urban environment, such as enhancing artificial drainage capacities or though sustainable drainage systems (SuDS).
M35=Protection, Other Protection, Other measure to enhance protection against flooding, which may include flood defence asset maintenance programmes or policies
M41=Preparedness, Flood Forecasting and Warning, Measure to establish or enhance a flood forecasting or warning system
M42=Preparedness, Emergency Event Response Planning / Contingency planning, Measure to establish or enhance flood event institutional emergency response planning
M43=Preparedness, Public Awareness and Preparedness, Measure to establish or enhance the public awareness or preparedness for flood events
M44=Preparedness, Other preparedness, Other measure to establish or enhance preparedness for flood events to reduce adverse consequences
M51=Recovery and Review (Planning for the recovery and review phase is in principle part of preparedness), Individual and societal recovery, Clean-up and restoration activities (buildings, infrastructure, etc)
Health and mental health supporting actions, incl. managing stress
Disaster financial assistance (grants, tax), incl.  disaster legal assistance, disaster unemployment assistance
Temporary or permanent relocation
Other
M52=Recovery and Review, Environmental recovery, Clean-up and restoration activities (with several sub-topics as mould protection, well-water safety and securing hazardous materials containers)
M53=Recovery and Review, Other, Other recovery and review Lessons learnt from flood events
Insurance policies
M61=Other
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="M11"/>
    <xs:enumeration value="M21"/>
    <xs:enumeration value="M22"/>
    <xs:enumeration value="M23"/>
    <xs:enumeration value="M24"/>
    <xs:enumeration value="M31"/>
    <xs:enumeration value="M32"/>
    <xs:enumeration value="M33"/>
    <xs:enumeration value="M34"/>
    <xs:enumeration value="M35"/>
    <xs:enumeration value="M41"/>
    <xs:enumeration value="M42"/>
    <xs:enumeration value="M43"/>
    <xs:enumeration value="M44"/>
    <xs:enumeration value="M51"/>
    <xs:enumeration value="M52"/>
    <xs:enumeration value="M53"/>
    <xs:enumeration value="M61"/>
  </xs:restriction>
</xs:simpleType>

simpleType MechanismofFlooding_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration A21 - Natural Exceedance
enumeration A22 - Defence Exceedance
enumeration A23 - Defence or Infrastructural Failure
enumeration A24 - Blockage / Restriction
enumeration A25 - Other
enumeration A26 - No data available on the mechanism of flooding
enumeration A27 - Mechanism of flooding uncertain
annotation
documentation
Define relevant mechanism of flooding. The list are in line with table A2 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.

A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.

A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.

A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.

A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.

A26= No data available on the mechanism of flooding
A27=Mechanism of flooding uncertain
source <xs:simpleType name="MechanismofFlooding_Enum">
  <xs:annotation>
    <xs:documentation>Define relevant mechanism of flooding. The list are in line with table A2 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.

A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.

A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.

A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.

A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.

A26= No data available on the mechanism of flooding
A27=Mechanism of flooding uncertain</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="A21 - Natural Exceedance"/>
    <xs:enumeration value="A22 - Defence Exceedance"/>
    <xs:enumeration value="A23 - Defence or Infrastructural Failure"/>
    <xs:enumeration value="A24 - Blockage / Restriction"/>
    <xs:enumeration value="A25 - Other"/>
    <xs:enumeration value="A26 - No data available on the mechanism of flooding"/>
    <xs:enumeration value="A27 - Mechanism of flooding uncertain"/>
  </xs:restriction>
</xs:simpleType>

simpleType MechanismsOfInternationalCoordination_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Bilateral border water commissions
enumeration Informal arrangements (groups discussions and exchange of information)
enumeration International coordination and working groups
enumeration International River Commission
enumeration Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration Regulations in place to enable exchange of information at international level
enumeration Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration Other
source <xs:simpleType name="MechanismsOfInternationalCoordination_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Bilateral border water commissions"/>
    <xs:enumeration value="Informal arrangements (groups discussions and exchange of information)"/>
    <xs:enumeration value="International coordination and working groups"/>
    <xs:enumeration value="International River Commission"/>
    <xs:enumeration value="Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action"/>
    <xs:enumeration value="Regulations in place to enable exchange of information at international level"/>
    <xs:enumeration value="Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType NumberDecimalBaseType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:decimal
used by
simpleType NumberDecimalType
facets
Kind Value annotation
minInclusive 0
source <xs:simpleType name="NumberDecimalBaseType">
  <xs:restriction base="xs:decimal">
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>

simpleType NumberDecimalType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (NumberDecimalBaseType, NumberExceptionType)
annotation
documentation
Decimal with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.
source <xs:simpleType name="NumberDecimalType">
  <xs:annotation>
    <xs:documentation>Decimal with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="NumberDecimalBaseType NumberExceptionType"/>
</xs:simpleType>

simpleType NumberExceptionType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
simpleTypes DateTypeYearType FeatureUniqueCodeTypeEX NumberDecimalType NumberNonNegativeIntegerType NumberPercentageType
facets
Kind Value annotation
minLength 3
maxLength 42
annotation
documentation
Numerical codes for data exceptions: -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable
source <xs:simpleType name="NumberExceptionType">
  <xs:annotation>
    <xs:documentation>Numerical codes for data exceptions: -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="42"/>
  </xs:restriction>
</xs:simpleType>

simpleType NumberNonNegativeIntegerType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (xs:nonNegativeInteger, NumberExceptionType)
annotation
documentation
Non-negative integer with option for exceptions
source <xs:simpleType name="NumberNonNegativeIntegerType">
  <xs:annotation>
    <xs:documentation>Non-negative integer with option for exceptions</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="xs:nonNegativeInteger NumberExceptionType"/>
</xs:simpleType>

simpleType NumberPercentageBaseType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:decimal
used by
simpleType NumberPercentageType
facets
Kind Value annotation
minInclusive 0
maxInclusive 100
fractionDigits 3
annotation
documentation
Percentage with 3 decimal places
source <xs:simpleType name="NumberPercentageBaseType">
  <xs:annotation>
    <xs:documentation>Percentage with 3 decimal places</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="3"/>
    <xs:maxInclusive value="100"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>

simpleType NumberPercentageType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (NumberPercentageBaseType, NumberExceptionType)
annotation
documentation
Percentage with option for exceptions
source <xs:simpleType name="NumberPercentageType">
  <xs:annotation>
    <xs:documentation>Percentage with option for exceptions</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="NumberPercentageBaseType NumberExceptionType"/>
</xs:simpleType>

simpleType PotentialAdverseConsequencesCriteria_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Damage potential exceeds specific threshold (area)
enumeration Expert Judgement
enumeration Number of buildings affected (residential and non-residential)
enumeration Other
enumeration Potential adverse consequences on water bodiesSources of pollution triggered from industrial installations
enumeration Potential adverse consequences to economic activity
enumeration Potential adverse consequences to infrastructural assets
enumeration Potential adverse consequences to rural land use
enumeration Potential adverse impacts on cultural assets and cultural landscapes
enumeration Recurrence periods
enumeration Recurrence periods in combination with land use
enumeration Specific weighting systems defined to assess significance
enumeration The number of permanent residents affected by the flood extent in flood plains
enumeration Value of property affected (residential and non-residential)
enumeration Water level or depth
enumeration Water velocity
enumeration Whether floods have occurred in the past
source <xs:simpleType name="PotentialAdverseConsequencesCriteria_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Damage potential exceeds specific threshold (area)"/>
    <xs:enumeration value="Expert Judgement"/>
    <xs:enumeration value="Number of buildings affected (residential and non-residential)"/>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="Potential adverse consequences on water bodiesSources of pollution triggered from industrial installations"/>
    <xs:enumeration value="Potential adverse consequences to economic activity"/>
    <xs:enumeration value="Potential adverse consequences to infrastructural assets"/>
    <xs:enumeration value="Potential adverse consequences to rural land use"/>
    <xs:enumeration value="Potential adverse impacts on cultural assets and cultural landscapes"/>
    <xs:enumeration value="Recurrence periods"/>
    <xs:enumeration value="Recurrence periods in combination with land use"/>
    <xs:enumeration value="Specific weighting systems defined to assess significance"/>
    <xs:enumeration value="The number of permanent residents affected by the flood extent in flood plains"/>
    <xs:enumeration value="Value of property affected (residential and non-residential)"/>
    <xs:enumeration value="Water level or depth"/>
    <xs:enumeration value="Water velocity"/>
    <xs:enumeration value="Whether floods have occurred in the past"/>
  </xs:restriction>
</xs:simpleType>

simpleType PriorityCategories_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element Prioritisation/categoryOfPriority
facets
Kind Value annotation
enumeration Very high
enumeration High
enumeration Critical
enumeration Moderate
enumeration Low
source <xs:simpleType name="PriorityCategories_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Very high"/>
    <xs:enumeration value="High"/>
    <xs:enumeration value="Critical"/>
    <xs:enumeration value="Moderate"/>
    <xs:enumeration value="Low"/>
  </xs:restriction>
</xs:simpleType>

simpleType ProtectedAreaType_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Bathing
enumeration Birds
enumeration Habitats
enumeration Nitrates
enumeration UWWT
enumeration Article 7 Abstraction for drinking water
enumeration WFD_WaterBodies
enumeration EuropeanOther
enumeration National
enumeration Local
annotation
documentation
Defines all Protected Area types for use in the Register of Protected Areas (Article 6)
source <xs:simpleType name="ProtectedAreaType_Enum">
  <xs:annotation>
    <xs:documentation>Defines all Protected Area types for use in the Register of Protected Areas (Article 6)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Bathing"/>
    <xs:enumeration value="Birds"/>
    <xs:enumeration value="Habitats"/>
    <xs:enumeration value="Nitrates"/>
    <xs:enumeration value="UWWT"/>
    <xs:enumeration value="Article 7 Abstraction for drinking water"/>
    <xs:enumeration value="WFD_WaterBodies"/>
    <xs:enumeration value="EuropeanOther"/>
    <xs:enumeration value="National"/>
    <xs:enumeration value="Local"/>
  </xs:restriction>
</xs:simpleType>

simpleType PublicConsultationsMechanisms_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element SummaryConsultation/article10.1PublicConsultationsMechanisms
facets
Kind Value annotation
enumeration Media (papers, TV, radio)
enumeration Internet
enumeration Social networking sites
enumeration Printed material
enumeration Direct mailing
enumeration Invitations to stakeholders
enumeration Local Authorities
enumeration Meetings with local population
enumeration Written consultation
enumeration Other
annotation
documentation
Table summarising the key mechanisms used for consultation across MS
source <xs:simpleType name="PublicConsultationsMechanisms_Enum">
  <xs:annotation>
    <xs:documentation>Table summarising the key mechanisms used for consultation across MS</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Media (papers, TV, radio)"/>
    <xs:enumeration value="Internet"/>
    <xs:enumeration value="Social networking sites"/>
    <xs:enumeration value="Printed material"/>
    <xs:enumeration value="Direct mailing"/>
    <xs:enumeration value="Invitations to stakeholders"/>
    <xs:enumeration value="Local Authorities"/>
    <xs:enumeration value="Meetings with local population"/>
    <xs:enumeration value="Written consultation"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType RelavantSources_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Fluvial
enumeration Pluvial
enumeration Groundwater
enumeration Seawater
enumeration Artificial Water Bearing Infrastructure
enumeration Other Source
source <xs:simpleType name="RelavantSources_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Fluvial"/>
    <xs:enumeration value="Pluvial"/>
    <xs:enumeration value="Groundwater"/>
    <xs:enumeration value="Seawater"/>
    <xs:enumeration value="Artificial Water Bearing Infrastructure"/>
    <xs:enumeration value="Other Source"/>
  </xs:restriction>
</xs:simpleType>

simpleType ReturnperiondandprobabiltiesApproach_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Expert judgment
enumeration Other
enumeration Statistical analysis on historical countsdata
enumeration Statistical analysis on hydraulic modelling
enumeration Statistical analysis on hydrological modelling
enumeration Statistical analysis on observed/ gauging data
enumeration Statistical analysis on rainfall data
annotation
documentation
If ‘no information’ is selected justification must be provided
source <xs:simpleType name="ReturnperiondandprobabiltiesApproach_Enum">
  <xs:annotation>
    <xs:documentation>If ‘no information’ is selected justification must be provided</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Expert judgment"/>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="Statistical analysis on historical countsdata"/>
    <xs:enumeration value="Statistical analysis on hydraulic modelling"/>
    <xs:enumeration value="Statistical analysis on hydrological modelling"/>
    <xs:enumeration value="Statistical analysis on observed/ gauging data"/>
    <xs:enumeration value="Statistical analysis on rainfall data"/>
  </xs:restriction>
</xs:simpleType>

simpleType SourceofFlooding_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration A11 - Fluvial
enumeration A12 - Pluvial
enumeration A13 - Groundwater
enumeration A14 - Sea Water
enumeration A15 - Artificial Water-Bearing Infrastructure
enumeration A16 - Other
enumeration A17 - No data available on the source of flooding
enumeration A18 - Source of flooding uncertain
annotation
documentation
Define relevant source of flooding. The list are in line with table A1 from list of flood types from February 2011 (version 6).

One or more options can be selected.

A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.

A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.

A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.

A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.

A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).

A16=Other: Flooding of land by water due to other sources, can include other tsunamis.


- A17=No data available on the source of flooding
- A18=Source of flooding uncertain
source <xs:simpleType name="SourceofFlooding_Enum">
  <xs:annotation>
    <xs:documentation>Define relevant source of flooding. The list are in line with table A1 from list of flood types from February 2011 (version 6).

One or more options can be selected.

A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.

A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.

A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.

A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.

A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).

A16=Other: Flooding of land by water due to other sources, can include other tsunamis.


- A17=No data available on the source of flooding
- A18=Source of flooding uncertain</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="A11 - Fluvial"/>
    <xs:enumeration value="A12 - Pluvial"/>
    <xs:enumeration value="A13 - Groundwater"/>
    <xs:enumeration value="A14 - Sea Water"/>
    <xs:enumeration value="A15 - Artificial Water-Bearing Infrastructure"/>
    <xs:enumeration value="A16 - Other"/>
    <xs:enumeration value="A17 - No data available on the source of flooding"/>
    <xs:enumeration value="A18 - Source of flooding uncertain"/>
  </xs:restriction>
</xs:simpleType>

simpleType String1000Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements SummaryAspects/annexAspectsIncludedDescription SummaryConsultation/article10.1PublicConsultationsMechanismsOther SummaryConsultation/article10.2ConsultationStakeholdersInvolvedMechanismsOther SummaryConsultation/article10.2ConsultationStakeholdersInvolvedOther SummaryArticle7.3/article7.3SummaryAspectsDescription SummaryDevelopment/article9.2CoordinationFRMPandRBMPOther SummaryClimateChange/description Hyperlinks/descriptionOfHyperlink SummaryConsultation/impactPublicParticipationOther SummaryCoordination/localNationalInternationalCoordinationDescription MeasureCodes/progressReviewDescription
facets
Kind Value annotation
minLength 1
maxLength 1000
annotation
documentation
String of up to 1000 characters
source <xs:simpleType name="String1000Type">
  <xs:annotation>
    <xs:documentation>String of up to 1000 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="1000"/>
  </xs:restriction>
</xs:simpleType>

simpleType String100Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
minLength 1
maxLength 100
annotation
documentation
String of up to 100 characters
source <xs:simpleType name="String100Type">
  <xs:annotation>
    <xs:documentation>String of up to 100 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>

simpleType String2000Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements MeasureCodes/cost MeasureCodes/otherCommunityAct
facets
Kind Value annotation
minLength 1
maxLength 2000
annotation
documentation
Type to enter string of 1 to 2000 characters
source <xs:simpleType name="String2000Type">
  <xs:annotation>
    <xs:documentation>Type to enter string of 1 to 2000 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="2000"/>
  </xs:restriction>
</xs:simpleType>

simpleType String250Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements ReferenceType/DocumentName ResponsibleAuthorities/levelOfResponsibility MeasureCodes/measureCode MeasureCodes/measureLocation MeasureCodes/measureName ResponsibleAuthorities/nameResponsibleAuthority ReferenceType/Subject Measures/wfdMeasureCode
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
String of up to 250 characters
source <xs:simpleType name="String250Type">
  <xs:annotation>
    <xs:documentation>String of up to 250 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="250"/>
  </xs:restriction>
</xs:simpleType>

simpleType String5000Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element Prioritisation/categoryOfPriorityDescription
facets
Kind Value annotation
minLength 1
maxLength 5000
annotation
documentation
Type to enter string of 1 to 5000 characters
source <xs:simpleType name="String5000Type">
  <xs:annotation>
    <xs:documentation>Type to enter string of 1 to 5000 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="5000"/>
  </xs:restriction>
</xs:simpleType>

simpleType String50Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements ReferenceType/Bookmark ReferenceType/FileName
facets
Kind Value annotation
minLength 1
maxLength 50
annotation
documentation
String of up to 50 characters
source <xs:simpleType name="String50Type">
  <xs:annotation>
    <xs:documentation>String of up to 50 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>

simpleType TotalDamageClass_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration H - High
enumeration I - Insignificnt
enumeration L - Low
enumeration M - Medium
enumeration NA - Not Applicable
enumeration U - Unknown
enumeration VH - Very high
annotation
documentation
For Insignificnt, Low, Medium, High, Very high, Not Applicable, Unknown:
U=Unknown
NA=Not Applicable
I=Insignificnt;
L=Low;
    M=Medium
    H=High
    VH=Very high
source <xs:simpleType name="TotalDamageClass_Enum">
  <xs:annotation>
    <xs:documentation>For Insignificnt, Low, Medium, High, Very high, Not Applicable, Unknown:
U=Unknown
NA=Not Applicable
I=Insignificnt;
L=Low;
    M=Medium
    H=High
    VH=Very high
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="H - High"/>
    <xs:enumeration value="I - Insignificnt"/>
    <xs:enumeration value="L - Low"/>
    <xs:enumeration value="M - Medium"/>
    <xs:enumeration value="NA - Not Applicable"/>
    <xs:enumeration value="U - Unknown"/>
    <xs:enumeration value="VH - Very high"/>
  </xs:restriction>
</xs:simpleType>

simpleType TypeCulturalHeritage_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration B31 - Cultural Assets
enumeration B32 - Landscape
enumeration B33 - Other
enumeration B34 - Not applicable
annotation
documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.

B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of  traditional landscapes, anchor locations or zones.

B33=Other

B34=Not applicable
source <xs:simpleType name="TypeCulturalHeritage_Enum">
  <xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.

B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of  traditional landscapes, anchor locations or zones.

B33=Other

B34=Not applicable

</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="B31 - Cultural Assets"/>
    <xs:enumeration value="B32 - Landscape"/>
    <xs:enumeration value="B33 - Other"/>
    <xs:enumeration value="B34 - Not applicable"/>
  </xs:restriction>
</xs:simpleType>

simpleType TypeEconomicActivity_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration B40
enumeration B41 - Property
enumeration B42 - Infrastructure
enumeration B43 - Rural Land Use
enumeration B44 - Economic Activity
enumeration B45 - Other
enumeration B46 - Not applicable
annotation
documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B41=Property: Adverse consequences to property, which could include homes.

B42=Infrastructure: Adverse consequences to infrastructural assets such as utilities, power generation, transport, storage and communication.

B43=Rural Land Use: Adverse consequences to uses of the land, such as agricultural activity (livestock, arable and horticulture), forestry, mineral extraction and fishing.

B44=Economic Activity: Adverse consequences to sectors of economic activity, such as manufacturing, construction, retail, services and other sources of employment.

B45=Other

B46=Not applicable
source <xs:simpleType name="TypeEconomicActivity_Enum">
  <xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B41=Property: Adverse consequences to property, which could include homes.

B42=Infrastructure: Adverse consequences to infrastructural assets such as utilities, power generation, transport, storage and communication.

B43=Rural Land Use: Adverse consequences to uses of the land, such as agricultural activity (livestock, arable and horticulture), forestry, mineral extraction and fishing.

B44=Economic Activity: Adverse consequences to sectors of economic activity, such as manufacturing, construction, retail, services and other sources of employment.

B45=Other

B46=Not applicable
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="B40"/>
    <xs:enumeration value="B41 - Property"/>
    <xs:enumeration value="B42 - Infrastructure"/>
    <xs:enumeration value="B43 - Rural Land Use"/>
    <xs:enumeration value="B44 - Economic Activity"/>
    <xs:enumeration value="B45 - Other"/>
    <xs:enumeration value="B46 - Not applicable"/>
  </xs:restriction>
</xs:simpleType>

simpleType TypeEnvironment_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration B20
enumeration B21 - Waterbody Status
enumeration B22 - Protected Areas
enumeration B23 - Pollution Sources
enumeration B24 - Other potential adverse environmental impacts
enumeration B25 - Not applicable
annotation
documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.


B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.

B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.

B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.

B24=Other potential adverse environmental impacts, such as those on soil, biodiversity, flora and fauna, etc.

B25=Not applicable

.
source <xs:simpleType name="TypeEnvironment_Enum">
  <xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.


B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.

B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.

B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.

B24=Other potential adverse environmental impacts, such as those on soil, biodiversity, flora and fauna, etc.

B25=Not applicable

.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="B20"/>
    <xs:enumeration value="B21 - Waterbody Status"/>
    <xs:enumeration value="B22 - Protected Areas"/>
    <xs:enumeration value="B23 - Pollution Sources"/>
    <xs:enumeration value="B24 - Other potential adverse environmental impacts"/>
    <xs:enumeration value="B25 - Not applicable"/>
  </xs:restriction>
</xs:simpleType>

simpleType TypeHumanHealth_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration B10
enumeration B11 - Human Health
enumeration B12 - Community
enumeration B13 - Other
enumeration B14 - Not applicaple
annotation
documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.

B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

B13=Other

B14=Not applicaple
source <xs:simpleType name="TypeHumanHealth_Enum">
  <xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.

B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

B13=Other

B14=Not applicaple

</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="B10"/>
    <xs:enumeration value="B11 - Human Health"/>
    <xs:enumeration value="B12 - Community"/>
    <xs:enumeration value="B13 - Other"/>
    <xs:enumeration value="B14 - Not applicaple"/>
  </xs:restriction>
</xs:simpleType>

simpleType URLType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element ReferenceType/Hyperlink
facets
Kind Value annotation
minLength 1
maxLength 250
pattern https?://.*
annotation
documentation
URL string of up to 250 characters
source <xs:simpleType name="URLType">
  <xs:annotation>
    <xs:documentation>URL string of up to 250 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="250"/>
    <xs:pattern value="https?://.*"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseDate
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:date
used by
simpleType WiseDateTimeType
facets
Kind Value annotation
pattern \d{4}-\d{2}-\d{2}
source <xs:simpleType name="WiseDate">
  <xs:restriction base="xs:date">
    <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseDateTime
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:dateTime
used by
simpleType WiseDateTimeType
facets
Kind Value annotation
pattern \d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}
source <xs:simpleType name="WiseDateTime">
  <xs:restriction base="xs:dateTime">
    <xs:pattern value="\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseDateTimeType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (WiseDate, WiseDateTime, WiseYear, WiseYearMonth)
annotation
documentation
Dates must be reported using the ISO 8601 extended format:  YYYY-MM-DD, for days; YYYY-MM, for months; YYYY, for years. (If necessary, or convenient, time values can be reported. The ISO 8601 extended format for UTC time should be used.)
source <xs:simpleType name="WiseDateTimeType">
  <xs:annotation>
    <xs:documentation>Dates must be reported using the ISO 8601 extended format:  YYYY-MM-DD, for days; YYYY-MM, for months; YYYY, for years. (If necessary, or convenient, time values can be reported. The ISO 8601 extended format for UTC time should be used.)</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="WiseDate WiseDateTime WiseYear WiseYearMonth"/>
</xs:simpleType>

simpleType WiseEvolutionTypeValue
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration aggregation
enumeration change
enumeration changeBothAggregationAndSplitting
enumeration changeCode
enumeration changeExtendedArea
enumeration changeReducedArea
enumeration creation
enumeration deletion
enumeration noChange
enumeration other
enumeration splitting
source <xs:simpleType name="WiseEvolutionTypeValue">
  <xs:restriction base="xs:string">
    <xs:enumeration value="aggregation"/>
    <xs:enumeration value="change"/>
    <xs:enumeration value="changeBothAggregationAndSplitting"/>
    <xs:enumeration value="changeCode"/>
    <xs:enumeration value="changeExtendedArea"/>
    <xs:enumeration value="changeReducedArea"/>
    <xs:enumeration value="creation"/>
    <xs:enumeration value="deletion"/>
    <xs:enumeration value="noChange"/>
    <xs:enumeration value="other"/>
    <xs:enumeration value="splitting"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseLanguageCode_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration alb
enumeration arm
enumeration baq
enumeration bel
enumeration bul
enumeration cat
enumeration cze
enumeration dan
enumeration dut
enumeration eng
enumeration est
enumeration fao
enumeration fin
enumeration fre
enumeration geo
enumeration ger
enumeration gle
enumeration glg
enumeration gre
enumeration hrv
enumeration hun
enumeration ice
enumeration ita
enumeration lav
enumeration lit
enumeration ltz
enumeration mac
enumeration mis
enumeration mlt
enumeration nor
enumeration pol
enumeration por
enumeration roh
enumeration rum
enumeration rus
enumeration slo
enumeration slv
enumeration spa
enumeration srp
enumeration swe
enumeration tur
enumeration ukr
source <xs:simpleType name="WiseLanguageCode_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="alb"/>
    <xs:enumeration value="arm"/>
    <xs:enumeration value="baq"/>
    <xs:enumeration value="bel"/>
    <xs:enumeration value="bul"/>
    <xs:enumeration value="cat"/>
    <xs:enumeration value="cze"/>
    <xs:enumeration value="dan"/>
    <xs:enumeration value="dut"/>
    <xs:enumeration value="eng"/>
    <xs:enumeration value="est"/>
    <xs:enumeration value="fao"/>
    <xs:enumeration value="fin"/>
    <xs:enumeration value="fre"/>
    <xs:enumeration value="geo"/>
    <xs:enumeration value="ger"/>
    <xs:enumeration value="gle"/>
    <xs:enumeration value="glg"/>
    <xs:enumeration value="gre"/>
    <xs:enumeration value="hrv"/>
    <xs:enumeration value="hun"/>
    <xs:enumeration value="ice"/>
    <xs:enumeration value="ita"/>
    <xs:enumeration value="lav"/>
    <xs:enumeration value="lit"/>
    <xs:enumeration value="ltz"/>
    <xs:enumeration value="mac"/>
    <xs:enumeration value="mis"/>
    <xs:enumeration value="mlt"/>
    <xs:enumeration value="nor"/>
    <xs:enumeration value="pol"/>
    <xs:enumeration value="por"/>
    <xs:enumeration value="roh"/>
    <xs:enumeration value="rum"/>
    <xs:enumeration value="rus"/>
    <xs:enumeration value="slo"/>
    <xs:enumeration value="slv"/>
    <xs:enumeration value="spa"/>
    <xs:enumeration value="srp"/>
    <xs:enumeration value="swe"/>
    <xs:enumeration value="tur"/>
    <xs:enumeration value="ukr"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseYear
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:gYear
used by
simpleType WiseDateTimeType
facets
Kind Value annotation
pattern \d{4}
source <xs:simpleType name="WiseYear">
  <xs:restriction base="xs:gYear">
    <xs:pattern value="\d{4}"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseYearMonth
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:gYearMonth
used by
simpleType WiseDateTimeType
facets
Kind Value annotation
pattern \d{4}-\d{2}
source <xs:simpleType name="WiseYearMonth">
  <xs:restriction base="xs:gYearMonth">
    <xs:pattern value="\d{4}-\d{2}"/>
  </xs:restriction>
</xs:simpleType>

simpleType YearMonthType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
length 7
pattern ([0-9]{4}-[0-1]{1}[0-9]{1})
annotation
documentation
2016 Date in the format YYYY-MM
source <xs:simpleType name="YearMonthType">
  <xs:annotation>
    <xs:documentation>2016 Date in the format YYYY-MM</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="7"/>
    <xs:pattern value="([0-9]{4}-[0-1]{1}[0-9]{1})"/>
  </xs:restriction>
</xs:simpleType>

simpleType YesCode
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Y
enumeration
annotation
documentation
Yes Code: Yes=Y
source <xs:simpleType name="YesCode">
  <xs:annotation>
    <xs:documentation>Yes Code: Yes=Y</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Y"/>
    <xs:enumeration value=""/>
  </xs:restriction>
</xs:simpleType>

simpleType YesNoCode
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements SummaryAspects/anexAspectsIncluded SummaryArticle7.3/article7.3SummaryAspects SummaryClimateChange/climateChangeImpacts
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Yes/No Code: Yes=Y; No=N
source <xs:simpleType name="YesNoCode">
  <xs:annotation>
    <xs:documentation>Yes/No Code: Yes=Y; No=N</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Y"/>
    <xs:enumeration value="N"/>
    <xs:enumeration value=""/>
  </xs:restriction>
</xs:simpleType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
NameSymDatumZeitSize
FDcommon.xsd 2017.11.15 13:23:28 49487
FRMP.html 2017.11.15 13:23:28 1349647
FRMP.xsd 2017.11.15 13:23:28 34709
Alle Dateien herunterladen Sym Datum Zeit Size
