APSFR
Schema APSFR.xsd


schema location:  ..\..\mods\APSFR.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://water.eionet.europa.eu/schemas/dir200760ec

Elements  Complex types
APSFR  APSFR
AreasOfFloodRisk
ConsiderationsOfConsequences
CriteriaForDeterminationSignificantFloodRisk
CriteriaForInclusion
CulturalHeritage
EconomicActivity
Environment
HumanHealthSocial

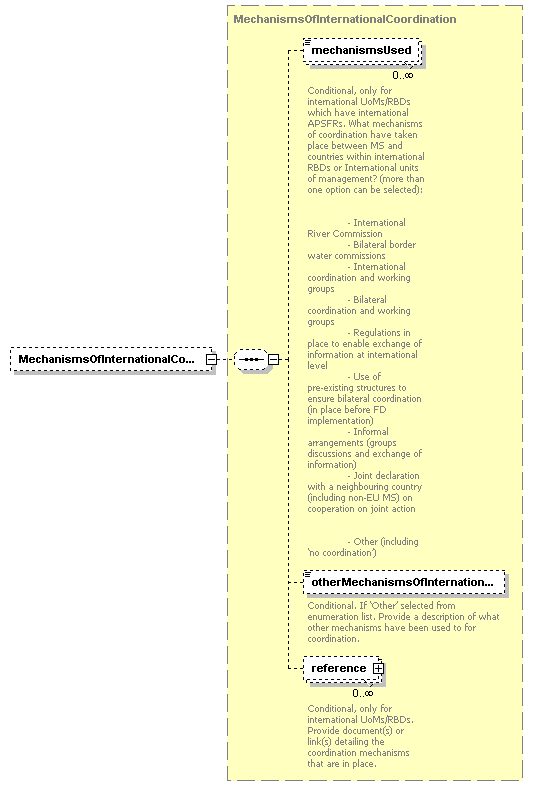

MechanismsOfInternationalCoordination
SummaryInformation
TypeOfFloods
TypeofPotentialConsequences


schema location:  ..\..\mods\FDCommon.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

Complex types  Simple types
ReferenceType  AnnexAspectsIncluded_enum
Article_6.6_Justification_Enum
Article_6.7_Justification_Enum
AspectsIncluded_Enum
CategoryFloods_Enum
CharacteristicsofFlooding_Enum
ClimateChange_Enum
ConsultationStakeholdersInvolved_Enum
ConsultationStakeholdersInvolvedMechanisms_Enum
CoordinateType
CoordinationFRMPandRBMP_Enum
CountryCode_enum
CriteriaForDeterminationFloodRisk_Enum
CriteriaForInclusion_Enum
DataConfidentialityClassificationCode_Enum
DateTypeYearType
ElementsProbability6.6_Enum
ElementsProbability6.7_Enum
ElementsProbability_Enum
FeatureUniqueCodeType
FeatureUniqueCodeTypeEX
FeatureUniqueEUCodeType
FloodSourcesMapped_Enum
GeographicScale_Enum
HistorialSignificantFloodsCriteria_Enum
ImpactPublicParticipation_Enum
InternationalInformationExchange_Enum
IssuesArticle4.2_d_Enum
LanguageCode_Enum
LocalNationalInternationalCoordination_Enum
MeasureAspect_Enum
MeasureCodesProgress_Enum
MeasureType_Enum
MechanismofFlooding_Enum
MechanismsOfInternationalCoordination_Enum
NumberDecimalBaseType
NumberDecimalType
NumberExceptionType
NumberNonNegativeIntegerType
NumberPercentageBaseType
NumberPercentageType
PotentialAdverseConsequencesCriteria_Enum
PriorInformationExchange_Enum
PriorityCategories_Enum
ProtectedAreaType_Enum
PublicConsultationsMechanisms_Enum
RelevantSources_Enum
ReturnperiodandprobabilitiesApproach_Enum
RoleCode_Enum
SourceofFlooding_Enum
String1000Type
String100Type
String2000Type
String250Type
String5000Type
String50Type
TotalDamageClass_Enum
TypeCulturalHeritage_Enum
TypeEconomicActivity_Enum
TypeEnvironment_Enum
TypeHumanHealth_Enum
TypeIEDInstallation_Enum
URLType
WFDAssociationType_Enum
WiseDate
WiseDateTime
WiseDateTimeType
WiseEvolutionTypeValue
WiseLanguageCode_Enum
WiseYear
WiseYearMonth
YearMonthType
YesCode
YesNoArticle66_67_enum
YesNoCode


element APSFR
diagram APSFR_p1.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type APSFR
properties
content complex
children c_Cd euUOMCode metaData url internationalUoM MechanismsOfInternationalCoordination AreasOfFloodRisk SummaryInformation
attributes
Name  Type  Use  Default  Fixed  annotation
classificationCodeDataConfidentialityClassificationCode_Enumoptional
documentation
Optional. Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only
creationDatexs:stringoptional
documentation
Required. To be provided as year, month, date (e.g. “2012-03-20”)
creatorxs:stringoptional
documentation
Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))
descriptionxs:stringoptional
documentation
Optional. For example: “Floods Directive APSFR Information”
emailxs:stringoptional
documentation
Optional. For example “frmplanning@sepa.org.uk”
generatedByxs:stringoptional
documentation
Optional. For example “Through the use of an IT database system using Oracle scripts”
languageLanguageCode_Enumoptional
documentation
Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.
source <xs:element name="APSFR" type="APSFR"/>

complexType APSFR
diagram APSFR_p2.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children c_Cd euUOMCode metaData url internationalUoM MechanismsOfInternationalCoordination AreasOfFloodRisk SummaryInformation
used by
element APSFR
attributes
Name  Type  Use  Default  Fixed  annotation
classificationCodeDataConfidentialityClassificationCode_Enumoptional
documentation
Optional. Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only
creationDatexs:stringoptional
documentation
Required. To be provided as year, month, date (e.g. “2012-03-20”)
creatorxs:stringoptional
documentation
Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))
descriptionxs:stringoptional
documentation
Optional. For example: “Floods Directive APSFR Information”
emailxs:stringoptional
documentation
Optional. For example “frmplanning@sepa.org.uk”
generatedByxs:stringoptional
documentation
Optional. For example “Through the use of an IT database system using Oracle scripts”
languageLanguageCode_Enumoptional
documentation
Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.
annotation
documentation
Required.
source <xs:complexType name="APSFR">
  <xs:annotation>
    <xs:documentation>Required.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="c_Cd" type="fd:CountryCode_enum">
      <xs:annotation>
        <xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="euUOMCode" type="fd:FeatureUniqueEUCodeType">
      <xs:annotation>
        <xs:documentation>Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="metaData" type="fd:String2000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Hyperlink or reference to associated metadata statement or file. Metadata is data that describes other data, summarising basic information about data, which can make finding and working with particular types of data easier. In addition to document files, metadata can be used for images, spreadsheets and web pages). This allows up to 2000 characters to be specified or alternatively may be used to provide a hyperlink or description of an associated metadata file. This should be used to define any restrictions on the data.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="url" type="xs:anyURI" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. URL for integration of your own internet-based information that provides access to further relevant details on the nature and characteristics of the APSFR that will help in the interpretation of flood risk and flood risk management.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="internationalUoM" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Is the UoM international?

- Yes
- No

If ‘Yes’, please provide the information requested in the schema elements below relating to mechanisms of coordination.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MechanismsOfInternationalCoordination" type="MechanismsOfInternationalCoordination" minOccurs="0"/>
    <xs:element name="AreasOfFloodRisk" type="AreasOfFloodRisk"/>
    <xs:element name="SummaryInformation" type="SummaryInformation"/>
  </xs:sequence>
  <xs:attribute name="classificationCode" type="fd:DataConfidentialityClassificationCode_Enum" use="optional">
    <xs:annotation>
      <xs:documentation>Optional. Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only </xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="creationDate" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Required. To be provided as year, month, date (e.g. “2012-03-20”)</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="creator" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="description" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Optional. For example: “Floods Directive APSFR Information”</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="email" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Optional. For example “frmplanning@sepa.org.uk”</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="generatedBy" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Optional. For example “Through the use of an IT database system using Oracle scripts”</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="language" type="fd:LanguageCode_Enum" use="optional">
    <xs:annotation>
      <xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

attribute APSFR/@classificationCode
type DataConfidentialityClassificationCode_Enum
properties
isRef 0
use optional
facets
Kind Value annotation
enumeration 001 - Unclassified
enumeration 003 - Confidential
annotation
documentation
Optional. Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only
source <xs:attribute name="classificationCode" type="fd:DataConfidentialityClassificationCode_Enum" use="optional">
  <xs:annotation>
    <xs:documentation>Optional. Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only </xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute APSFR/@creationDate
type xs:string
properties
isRef 0
use optional
annotation
documentation
Required. To be provided as year, month, date (e.g. “2012-03-20”)
source <xs:attribute name="creationDate" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Required. To be provided as year, month, date (e.g. “2012-03-20”)</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute APSFR/@creator
type xs:string
properties
isRef 0
use optional
annotation
documentation
Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))
source <xs:attribute name="creator" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute APSFR/@description
type xs:string
properties
isRef 0
use optional
annotation
documentation
Optional. For example: “Floods Directive APSFR Information”
source <xs:attribute name="description" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Optional. For example: “Floods Directive APSFR Information”</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute APSFR/@email
type xs:string
properties
isRef 0
use optional
annotation
documentation
Optional. For example “frmplanning@sepa.org.uk”
source <xs:attribute name="email" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Optional. For example “frmplanning@sepa.org.uk”</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute APSFR/@generatedBy
type xs:string
properties
isRef 0
use optional
annotation
documentation
Optional. For example “Through the use of an IT database system using Oracle scripts”
source <xs:attribute name="generatedBy" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Optional. For example “Through the use of an IT database system using Oracle scripts”</xs:documentation>
  </xs:annotation>
</xs:attribute>

attribute APSFR/@language
type LanguageCode_Enum
properties
isRef 0
use optional
facets
Kind Value annotation
enumeration bg
enumeration es
enumeration cs
enumeration da
enumeration de
enumeration et
enumeration el
enumeration en
enumeration fr
enumeration ga
enumeration hr
enumeration ic
enumeration it
enumeration lv
enumeration lt
enumeration hu
enumeration mt
enumeration nl
enumeration no
enumeration pl
enumeration pt
enumeration ro
enumeration sk
enumeration sl
enumeration sr
enumeration tr
enumeration fi
enumeration sv
annotation
documentation
Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.
source <xs:attribute name="language" type="fd:LanguageCode_Enum" use="optional">
  <xs:annotation>
    <xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
  </xs:annotation>
</xs:attribute>

element APSFR/c_Cd
diagram APSFR_p3.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CountryCode_enum
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration AT
enumeration BE
enumeration BG
enumeration CH
enumeration CZ
enumeration CY
enumeration DE
enumeration DK
enumeration EE
enumeration EL
enumeration ES
enumeration FI
enumeration FR
enumeration HR
enumeration HU
enumeration IE
enumeration IS
enumeration IT
enumeration LT
enumeration LU
enumeration LV
enumeration MT
enumeration NO
enumeration NL
enumeration PL
enumeration PT
enumeration RO
enumeration SE
enumeration SI
enumeration SK
enumeration TR
enumeration UK
annotation
documentation
Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.
source <xs:element name="c_Cd" type="fd:CountryCode_enum">
  <xs:annotation>
    <xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
  </xs:annotation>
</xs:element>

element APSFR/euUOMCode
diagram APSFR_p4.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type FeatureUniqueEUCodeType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 3
maxLength 42
annotation
documentation
Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total
source <xs:element name="euUOMCode" type="fd:FeatureUniqueEUCodeType">
  <xs:annotation>
    <xs:documentation>Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total</xs:documentation>
  </xs:annotation>
</xs:element>

element APSFR/metaData
diagram APSFR_p5.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String2000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 2000
annotation
documentation
Optional. Hyperlink or reference to associated metadata statement or file. Metadata is data that describes other data, summarising basic information about data, which can make finding and working with particular types of data easier. In addition to document files, metadata can be used for images, spreadsheets and web pages). This allows up to 2000 characters to be specified or alternatively may be used to provide a hyperlink or description of an associated metadata file. This should be used to define any restrictions on the data.
source <xs:element name="metaData" type="fd:String2000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Hyperlink or reference to associated metadata statement or file. Metadata is data that describes other data, summarising basic information about data, which can make finding and working with particular types of data easier. In addition to document files, metadata can be used for images, spreadsheets and web pages). This allows up to 2000 characters to be specified or alternatively may be used to provide a hyperlink or description of an associated metadata file. This should be used to define any restrictions on the data.</xs:documentation>
  </xs:annotation>
</xs:element>

element APSFR/url
diagram APSFR_p6.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type xs:anyURI
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Optional. URL for integration of your own internet-based information that provides access to further relevant details on the nature and characteristics of the APSFR that will help in the interpretation of flood risk and flood risk management.
source <xs:element name="url" type="xs:anyURI" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. URL for integration of your own internet-based information that provides access to further relevant details on the nature and characteristics of the APSFR that will help in the interpretation of flood risk and flood risk management.</xs:documentation>
  </xs:annotation>
</xs:element>

element APSFR/internationalUoM
diagram APSFR_p7.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type YesNoCode
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Required. Is the UoM international?

- Yes
- No

If ‘Yes’, please provide the information requested in the schema elements below relating to mechanisms of coordination.
source <xs:element name="internationalUoM" type="fd:YesNoCode">
  <xs:annotation>
    <xs:documentation>Required. Is the UoM international?

- Yes
- No

If ‘Yes’, please provide the information requested in the schema elements below relating to mechanisms of coordination.</xs:documentation>
  </xs:annotation>
</xs:element>

element APSFR/MechanismsOfInternationalCoordination
diagram APSFR_p8.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type MechanismsOfInternationalCoordination
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children mechanismsUsed otherMechanismsOfInternationalCoordination reference
source <xs:element name="MechanismsOfInternationalCoordination" type="MechanismsOfInternationalCoordination" minOccurs="0"/>

element APSFR/AreasOfFloodRisk
diagram APSFR_p9.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type AreasOfFloodRisk
properties
isRef 0
content complex
children apsfrCode nameOfAPSFR crossBorderRelationship crossBorderAPSFRCode generalAdditionalCommentsReference lat lon hazardAreaCode hazardAreaDescription TypeOfFloods TypeofPotentialConsequences
source <xs:element name="AreasOfFloodRisk" type="AreasOfFloodRisk"/>

element APSFR/SummaryInformation
diagram APSFR_p10.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SummaryInformation
properties
isRef 0
content complex
children overallApproachReviewReference CriteriaForInclusion ConsiderationsOfConsequences CriteriaForDeterminationSignificantFloodRisk
source <xs:element name="SummaryInformation" type="SummaryInformation"/>

complexType AreasOfFloodRisk
diagram APSFR_p11.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children apsfrCode nameOfAPSFR crossBorderRelationship crossBorderAPSFRCode generalAdditionalCommentsReference lat lon hazardAreaCode hazardAreaDescription TypeOfFloods TypeofPotentialConsequences
used by
element APSFR/AreasOfFloodRisk
source <xs:complexType name="AreasOfFloodRisk">
  <xs:sequence>
    <xs:element name="apsfrCode" type="fd:FeatureUniqueEUCodeType">
      <xs:annotation>
        <xs:documentation>Required. Unique EU code for the area of potential significant flood risk. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="nameOfAPSFR" type="fd:String250Type">
      <xs:annotation>
        <xs:documentation>Required. Name of the river basin, sub-basin and/or coastal area or other areas associated with each area of potential significant flood risk</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="crossBorderRelationship" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Please indicate whether the APSFR crosses the national border.


- Yes
- No</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="crossBorderAPSFRCode" type="fd:FeatureUniqueCodeTypeEX" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If the APSFR cross the border to either a national or international unit of management please indicate the unique code for the related APSFR. The exception types:


- -9999=Unknown
- -8888=Yet to be measured
- -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="generalAdditionalCommentsReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Optional. Provide a reference or references to document(s) that will be helpful to explain the data and information provided </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lat" type="fd:CoordinateType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Latitude in ETRS89 of the centroid of the area with potential significant flood risk. When linear or area entities  are represented as points (centroids) these should be ‘geometric’ centroids in the sense that the point should fall inside a polygon representation or for linear features be a point on the line</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lon" type="fd:CoordinateType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Longitude in ETRS89 of the centroid of the area with potential significant flood risk. When linear or area entities are represented as points (centroids) these should be ‘geometric’ centroids in the sense that the point should fall inside a polygon representation or for linear features be a point on the line</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="hazardAreaCode" type="fd:FeatureUniqueEUCodeType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Unique EU code for the hazard area linked to an APSFR. Add the two-letter ISO Country code to the Member State unique id to the APSFR code - up to 150 characters in total</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="hazardAreaDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Provide a description of the Hazard Area and how it is related to the APSFR.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TypeOfFloods" type="TypeOfFloods"/>
    <xs:element name="TypeofPotentialConsequences" type="TypeofPotentialConsequences"/>
  </xs:sequence>
</xs:complexType>

element AreasOfFloodRisk/apsfrCode
diagram APSFR_p12.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type FeatureUniqueEUCodeType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 3
maxLength 42
annotation
documentation
Required. Unique EU code for the area of potential significant flood risk. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total
source <xs:element name="apsfrCode" type="fd:FeatureUniqueEUCodeType">
  <xs:annotation>
    <xs:documentation>Required. Unique EU code for the area of potential significant flood risk. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total</xs:documentation>
  </xs:annotation>
</xs:element>

element AreasOfFloodRisk/nameOfAPSFR
diagram APSFR_p13.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Required. Name of the river basin, sub-basin and/or coastal area or other areas associated with each area of potential significant flood risk
source <xs:element name="nameOfAPSFR" type="fd:String250Type">
  <xs:annotation>
    <xs:documentation>Required. Name of the river basin, sub-basin and/or coastal area or other areas associated with each area of potential significant flood risk</xs:documentation>
  </xs:annotation>
</xs:element>

element AreasOfFloodRisk/crossBorderRelationship
diagram APSFR_p14.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type YesNoCode
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Required. Please indicate whether the APSFR crosses the national border.


- Yes
- No
source <xs:element name="crossBorderRelationship" type="fd:YesNoCode">
  <xs:annotation>
    <xs:documentation>Required. Please indicate whether the APSFR crosses the national border.


- Yes
- No</xs:documentation>
  </xs:annotation>
</xs:element>

element AreasOfFloodRisk/crossBorderAPSFRCode
diagram APSFR_p15.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type FeatureUniqueCodeTypeEX
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Conditional. If the APSFR cross the border to either a national or international unit of management please indicate the unique code for the related APSFR. The exception types:


- -9999=Unknown
- -8888=Yet to be measured
- -7777=Not Applicable can be used.
source <xs:element name="crossBorderAPSFRCode" type="fd:FeatureUniqueCodeTypeEX" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If the APSFR cross the border to either a national or international unit of management please indicate the unique code for the related APSFR. The exception types:


- -9999=Unknown
- -8888=Yet to be measured
- -7777=Not Applicable can be used.</xs:documentation>
  </xs:annotation>
</xs:element>

element AreasOfFloodRisk/generalAdditionalCommentsReference
diagram APSFR_p16.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Optional. Provide a reference or references to document(s) that will be helpful to explain the data and information provided
source <xs:element name="generalAdditionalCommentsReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Optional. Provide a reference or references to document(s) that will be helpful to explain the data and information provided </xs:documentation>
  </xs:annotation>
</xs:element>

element AreasOfFloodRisk/lat
diagram APSFR_p17.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CoordinateType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern \-{0,1}[0-9]{1,2}\.[0-9]{1,5}
annotation
documentation
Optional. Latitude in ETRS89 of the centroid of the area with potential significant flood risk. When linear or area entities  are represented as points (centroids) these should be ‘geometric’ centroids in the sense that the point should fall inside a polygon representation or for linear features be a point on the line
source <xs:element name="lat" type="fd:CoordinateType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Latitude in ETRS89 of the centroid of the area with potential significant flood risk. When linear or area entities  are represented as points (centroids) these should be ‘geometric’ centroids in the sense that the point should fall inside a polygon representation or for linear features be a point on the line</xs:documentation>
  </xs:annotation>
</xs:element>

element AreasOfFloodRisk/lon
diagram APSFR_p18.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CoordinateType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern \-{0,1}[0-9]{1,2}\.[0-9]{1,5}
annotation
documentation
Optional. Longitude in ETRS89 of the centroid of the area with potential significant flood risk. When linear or area entities are represented as points (centroids) these should be ‘geometric’ centroids in the sense that the point should fall inside a polygon representation or for linear features be a point on the line
source <xs:element name="lon" type="fd:CoordinateType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Longitude in ETRS89 of the centroid of the area with potential significant flood risk. When linear or area entities are represented as points (centroids) these should be ‘geometric’ centroids in the sense that the point should fall inside a polygon representation or for linear features be a point on the line</xs:documentation>
  </xs:annotation>
</xs:element>

element AreasOfFloodRisk/hazardAreaCode
diagram APSFR_p19.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type FeatureUniqueEUCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 3
maxLength 42
annotation
documentation
Optional. Unique EU code for the hazard area linked to an APSFR. Add the two-letter ISO Country code to the Member State unique id to the APSFR code - up to 150 characters in total
source <xs:element name="hazardAreaCode" type="fd:FeatureUniqueEUCodeType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Optional. Unique EU code for the hazard area linked to an APSFR. Add the two-letter ISO Country code to the Member State unique id to the APSFR code - up to 150 characters in total</xs:documentation>
  </xs:annotation>
</xs:element>

element AreasOfFloodRisk/hazardAreaDescription
diagram APSFR_p20.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. Provide a description of the Hazard Area and how it is related to the APSFR.
source <xs:element name="hazardAreaDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. Provide a description of the Hazard Area and how it is related to the APSFR.</xs:documentation>
  </xs:annotation>
</xs:element>

element AreasOfFloodRisk/TypeOfFloods
diagram APSFR_p21.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type TypeOfFloods
properties
isRef 0
content complex
children sourceOfFlooding otherSourceDescription sourceUncertainDescription mechanismOfFlooding otherMechanismDescription mechanismUncertainDescription characteristicsOfFlooding otherCharacteristicsDescription characteristicsUncertainDescription
source <xs:element name="TypeOfFloods" type="TypeOfFloods"/>

element AreasOfFloodRisk/TypeofPotentialConsequences
diagram APSFR_p22.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type TypeofPotentialConsequences
properties
isRef 0
content complex
children Environment HumanHealthSocial CulturalHeritage EconomicActivity
source <xs:element name="TypeofPotentialConsequences" type="TypeofPotentialConsequences"/>

complexType ConsiderationsOfConsequences
diagram APSFR_p23.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children considerationsHumanHealth considerationsEnvironment considerationsCulturalHeritage considerationsEconomicActivity methodologyReference
used by
element SummaryInformation/ConsiderationsOfConsequences
annotation
documentation
MS are required to provide information on the methodology (including criteria for the determination of significant flood risk, reasons and criteria for the exclusion or inclusion of areas and how the consequences to human health, environment, cultural heritage and economic activity have been considered for the identification of potential significant flood risk areas. The next group of schema elements therefore cover


- Criteria for determining significant flood risk


- Criteria for inclusion of floods risk areas as APSFRs


- Criteria relating to how human health, environment, cultural heritage and economic activity have been considered in the identification of APSFRs

MS should consider these criteria sequentially as, although they appear to be fairly similar, they each provide useful information as to the process that MS have used to define their APSFRs
source <xs:complexType name="ConsiderationsOfConsequences">
  <xs:annotation>
    <xs:documentation>MS are required to provide information on the methodology (including criteria for the determination of significant flood risk, reasons and criteria for the exclusion or inclusion of areas and how the consequences to human health, environment, cultural heritage and economic activity have been considered for the identification of potential significant flood risk areas. The next group of schema elements therefore cover


- Criteria for determining significant flood risk


- Criteria for inclusion of floods risk areas as APSFRs


- Criteria relating to how human health, environment, cultural heritage and economic activity have been considered in the identification of APSFRs

MS should consider these criteria sequentially as, although they appear to be fairly similar, they each provide useful information as to the process that MS have used to define their APSFRs</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="considerationsHumanHealth" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Please indicate whether specific criteria relating to human health have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="considerationsEnvironment" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Please indicate whether specific criteria relating to environment have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="considerationsCulturalHeritage" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Please indicate whether specific criteria relating to cultural heritage have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="considerationsEconomicActivity" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Please indicate whether specific criteria relating to economic activity have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="methodologyReference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. If ‘yes’ to ‘ConsiderationOfConsequences’ for any of the elements above (Human Health, Environment, Cultural Heritage or Economic Activity), provide document(s) or link(s) detailing the overall methodology used to determine flood risk with respect to the definition of an APSFR. If ‘no’, provide reasons for not including any of these elements (this can include a link to a reference document(s) or simply a link to reference in the form of a summary document.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element ConsiderationsOfConsequences/considerationsHumanHealth
diagram APSFR_p24.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type YesNoCode
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Required. Please indicate whether specific criteria relating to human health have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.
source <xs:element name="considerationsHumanHealth" type="fd:YesNoCode">
  <xs:annotation>
    <xs:documentation>Required. Please indicate whether specific criteria relating to human health have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.</xs:documentation>
  </xs:annotation>
</xs:element>

element ConsiderationsOfConsequences/considerationsEnvironment
diagram APSFR_p25.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type YesNoCode
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Required. Please indicate whether specific criteria relating to environment have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.
source <xs:element name="considerationsEnvironment" type="fd:YesNoCode">
  <xs:annotation>
    <xs:documentation>Required. Please indicate whether specific criteria relating to environment have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.</xs:documentation>
  </xs:annotation>
</xs:element>

element ConsiderationsOfConsequences/considerationsCulturalHeritage
diagram APSFR_p26.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type YesNoCode
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Required. Please indicate whether specific criteria relating to cultural heritage have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.
source <xs:element name="considerationsCulturalHeritage" type="fd:YesNoCode">
  <xs:annotation>
    <xs:documentation>Required. Please indicate whether specific criteria relating to cultural heritage have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.</xs:documentation>
  </xs:annotation>
</xs:element>

element ConsiderationsOfConsequences/considerationsEconomicActivity
diagram APSFR_p27.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type YesNoCode
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Required. Please indicate whether specific criteria relating to economic activity have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.
source <xs:element name="considerationsEconomicActivity" type="fd:YesNoCode">
  <xs:annotation>
    <xs:documentation>Required. Please indicate whether specific criteria relating to economic activity have been used in the identification of APSFRs:


- Yes
- No


Whether Yes or No, please provide a reference in ‘APSFR/SummaryInfromation/ConsiderationOfConsequences/MethodologyReference’ to the overall methodology.</xs:documentation>
  </xs:annotation>
</xs:element>

element ConsiderationsOfConsequences/methodologyReference
diagram APSFR_p28.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Required. If ‘yes’ to ‘ConsiderationOfConsequences’ for any of the elements above (Human Health, Environment, Cultural Heritage or Economic Activity), provide document(s) or link(s) detailing the overall methodology used to determine flood risk with respect to the definition of an APSFR. If ‘no’, provide reasons for not including any of these elements (this can include a link to a reference document(s) or simply a link to reference in the form of a summary document.
source <xs:element name="methodologyReference" type="fd:ReferenceType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. If ‘yes’ to ‘ConsiderationOfConsequences’ for any of the elements above (Human Health, Environment, Cultural Heritage or Economic Activity), provide document(s) or link(s) detailing the overall methodology used to determine flood risk with respect to the definition of an APSFR. If ‘no’, provide reasons for not including any of these elements (this can include a link to a reference document(s) or simply a link to reference in the form of a summary document.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType CriteriaForDeterminationSignificantFloodRisk
diagram APSFR_p29.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children criteriaUsed expertJudgementDescription otherCriteriaDescription reference
used by
element SummaryInformation/CriteriaForDeterminationSignificantFloodRisk
annotation
documentation
MS are required to provide information on the methodology (including criteria for the determination of significant flood risk, reasons and criteria for the exclusion or inclusion of areas and how the consequences to human health, environment, cultural heritage and economic activity have been considered for the identification of potential significant flood risk areas. The next group of schema elements therefore cover.

- Criteria for determining significant flood risk
- Criteria for inclusion of floods risk areas as APSFRs, and:
- Criteria relating to how human health, environment, cultural heritage and economic activity have been considered in the identification of APSFRs

MS should consider these criteria sequentially as, although they appear to be fairly similar, they each provide useful information as to the process that MS have used to define their APSFRs.
source <xs:complexType name="CriteriaForDeterminationSignificantFloodRisk">
  <xs:annotation>
    <xs:documentation>MS are required to provide information on the methodology (including criteria for the determination of significant flood risk, reasons and criteria for the exclusion or inclusion of areas and how the consequences to human health, environment, cultural heritage and economic activity have been considered for the identification of potential significant flood risk areas. The next group of schema elements therefore cover.

- Criteria for determining significant flood risk
- Criteria for inclusion of floods risk areas as APSFRs, and:
- Criteria relating to how human health, environment, cultural heritage and economic activity have been considered in the identification of APSFRs

MS should consider these criteria sequentially as, although they appear to be fairly similar, they each provide useful information as to the process that MS have used to define their APSFRs. </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="criteriaUsed" type="fd:CriteriaForDeterminationFloodRisk_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide the criteria used for determination of significant flood risk (more than one option can be selected):



- Number of permanent residents affected by the flood extent
- Value or area of property affected (residential and non-residential)
- Area of property affected
- Number of buildings affected (residential and non-residential)
- Adverse consequences to infrastructural assets
- Damage exceeds specific threshold (area)
- Adverse consequences on water bodies
- Sources of pollution triggered from industrial installations
- Adverse consequences to rural land use
- Adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
- Potential adverse consequences to properties
- Adverse impacts on cultural assets and cultural landscapes
- Recurrence periods
- Recurrence periods in combination with land use
- Flood extent
- Flood duration
- Water level or depth
- Water velocity
- Whether floods have occurred in the past
- Specific weighting systems defined to assess significance
- Expert Judgement
- Number of past flood events
- Damage caused in past flood events
- Other</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="expertJudgementDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Expert Judgement’ has been selected from enumeration list, provide a brief description as to how expert judgement was used to determine significant flood risk.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherCriteriaDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria have been used to determine significant flood risk.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) detailing the overall methodology used to determine flood risk. </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element CriteriaForDeterminationSignificantFloodRisk/criteriaUsed
diagram APSFR_p30.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CriteriaForDeterminationFloodRisk_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Area of property affected
enumeration Number of permanent residents affected by the flood extent
enumeration Value or area of property affected (residential and non-residential)
enumeration Number of buildings affected (residential and non-residential)
enumeration Adverse consequences to infrastructural assets
enumeration Damage exceeds specific threshold (area)
enumeration Adverse consequences on water bodies
enumeration Sources of pollution triggered from industrial installations
enumeration Adverse consequences to rural land use
enumeration Adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
enumeration Potential adverse consequences to properties
enumeration Adverse impacts on cultural assets and cultural landscapes
enumeration Recurrence periods
enumeration Recurrence periods in combination with land use
enumeration Flood extent
enumeration Flood duration
enumeration Water level or depth
enumeration Water velocity
enumeration Whether floods have occurred in the past
enumeration Specific weighting systems defined to assess significance
enumeration Expert Judgement
enumeration Number of past flood events
enumeration Damage caused in past flood events
enumeration Other
annotation
documentation
Required. Provide the criteria used for determination of significant flood risk (more than one option can be selected):



- Number of permanent residents affected by the flood extent
- Value or area of property affected (residential and non-residential)
- Area of property affected
- Number of buildings affected (residential and non-residential)
- Adverse consequences to infrastructural assets
- Damage exceeds specific threshold (area)
- Adverse consequences on water bodies
- Sources of pollution triggered from industrial installations
- Adverse consequences to rural land use
- Adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
- Potential adverse consequences to properties
- Adverse impacts on cultural assets and cultural landscapes
- Recurrence periods
- Recurrence periods in combination with land use
- Flood extent
- Flood duration
- Water level or depth
- Water velocity
- Whether floods have occurred in the past
- Specific weighting systems defined to assess significance
- Expert Judgement
- Number of past flood events
- Damage caused in past flood events
- Other
source <xs:element name="criteriaUsed" type="fd:CriteriaForDeterminationFloodRisk_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide the criteria used for determination of significant flood risk (more than one option can be selected):



- Number of permanent residents affected by the flood extent
- Value or area of property affected (residential and non-residential)
- Area of property affected
- Number of buildings affected (residential and non-residential)
- Adverse consequences to infrastructural assets
- Damage exceeds specific threshold (area)
- Adverse consequences on water bodies
- Sources of pollution triggered from industrial installations
- Adverse consequences to rural land use
- Adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
- Potential adverse consequences to properties
- Adverse impacts on cultural assets and cultural landscapes
- Recurrence periods
- Recurrence periods in combination with land use
- Flood extent
- Flood duration
- Water level or depth
- Water velocity
- Whether floods have occurred in the past
- Specific weighting systems defined to assess significance
- Expert Judgement
- Number of past flood events
- Damage caused in past flood events
- Other</xs:documentation>
  </xs:annotation>
</xs:element>

element CriteriaForDeterminationSignificantFloodRisk/expertJudgementDescription
diagram APSFR_p31.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘Expert Judgement’ has been selected from enumeration list, provide a brief description as to how expert judgement was used to determine significant flood risk.
source <xs:element name="expertJudgementDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘Expert Judgement’ has been selected from enumeration list, provide a brief description as to how expert judgement was used to determine significant flood risk.</xs:documentation>
  </xs:annotation>
</xs:element>

element CriteriaForDeterminationSignificantFloodRisk/otherCriteriaDescription
diagram APSFR_p32.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria have been used to determine significant flood risk.
source <xs:element name="otherCriteriaDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria have been used to determine significant flood risk.</xs:documentation>
  </xs:annotation>
</xs:element>

element CriteriaForDeterminationSignificantFloodRisk/reference
diagram APSFR_p33.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Required. Provide document(s) or link(s) detailing the overall methodology used to determine flood risk.
source <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide document(s) or link(s) detailing the overall methodology used to determine flood risk. </xs:documentation>
  </xs:annotation>
</xs:element>

complexType CriteriaForInclusion
diagram APSFR_p34.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children criteriaUsed otherCriteriaDescription
used by
element SummaryInformation/CriteriaForInclusion
annotation
documentation
MS are required to provide information on the methodology (including criteria for the determination of significant flood risk, reasons and criteria for the exclusion or inclusion of areas and how the consequences to human health, environment, cultural heritage and economic activity have been considered for the identification of potential significant flood risk areas. The next group of schema elements therefore cover


- Criteria for determining significant flood risk


- Criteria for inclusion of floods risk areas as APSFRs


- Criteria relating to how human health, environment, cultural heritage and economic activity have been considered in the identification of APSFRs

MS should consider these criteria sequentially as, although they appear to be fairly similar, they each provide useful information as to the process that MS have used to define their APSFRs
source <xs:complexType name="CriteriaForInclusion">
  <xs:annotation>
    <xs:documentation>MS are required to provide information on the methodology (including criteria for the determination of significant flood risk, reasons and criteria for the exclusion or inclusion of areas and how the consequences to human health, environment, cultural heritage and economic activity have been considered for the identification of potential significant flood risk areas. The next group of schema elements therefore cover


- Criteria for determining significant flood risk


- Criteria for inclusion of floods risk areas as APSFRs


- Criteria relating to how human health, environment, cultural heritage and economic activity have been considered in the identification of APSFRs

MS should consider these criteria sequentially as, although they appear to be fairly similar, they each provide useful information as to the process that MS have used to define their APSFRs</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="criteriaUsed" type="fd:CriteriaForInclusion_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide the criteria used for inclusion of areas as APSFRs (more than one option can be selected):

- Magnitude of risk to human health
- Magnitude of risk to economic activity
- Magnitude of risk to the environment
- Magnitude of risk to cultural heritage
- Flood defences not in place or not fully implemented
- Possible failure of flood defences
- In agreement with neighboring countries
- Frequency of past events
- Local knowledge and/or public opinion
- Changes in land use have increased vulnerability of the area to flooding
- High level of damage expected
- Other</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherCriteriaDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria has been used to determine inclusion of areas as APSFRs.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element CriteriaForInclusion/criteriaUsed
diagram APSFR_p35.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CriteriaForInclusion_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Flood defences not in place or not fully implemented
enumeration Frequency
enumeration Frequency or number of past events
enumeration In agreement with neighboring countries
enumeration Local knowledge and/or public opinion
enumeration Magnitude of risk to cultural heritage
enumeration Magnitude of risk to economic activity
enumeration Magnitude of risk to human health
enumeration Magnitude of risk to the environment
enumeration number or Iimpact of past events
enumeration Possible failure of flood defences
enumeration Changes in land use have increased vulnerability of the area to flooding
enumeration Exceeding thresholds under specific weighting systems defined to assess significance
enumeration Expert judgement
enumeration High level of damage expected
enumeration Other
enumeration Impact of past events
annotation
documentation
Required. Provide the criteria used for inclusion of areas as APSFRs (more than one option can be selected):

- Magnitude of risk to human health
- Magnitude of risk to economic activity
- Magnitude of risk to the environment
- Magnitude of risk to cultural heritage
- Flood defences not in place or not fully implemented
- Possible failure of flood defences
- In agreement with neighboring countries
- Frequency of past events
- Local knowledge and/or public opinion
- Changes in land use have increased vulnerability of the area to flooding
- High level of damage expected
- Other
source <xs:element name="criteriaUsed" type="fd:CriteriaForInclusion_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide the criteria used for inclusion of areas as APSFRs (more than one option can be selected):

- Magnitude of risk to human health
- Magnitude of risk to economic activity
- Magnitude of risk to the environment
- Magnitude of risk to cultural heritage
- Flood defences not in place or not fully implemented
- Possible failure of flood defences
- In agreement with neighboring countries
- Frequency of past events
- Local knowledge and/or public opinion
- Changes in land use have increased vulnerability of the area to flooding
- High level of damage expected
- Other</xs:documentation>
  </xs:annotation>
</xs:element>

element CriteriaForInclusion/otherCriteriaDescription
diagram APSFR_p36.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria has been used to determine inclusion of areas as APSFRs.
source <xs:element name="otherCriteriaDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria has been used to determine inclusion of areas as APSFRs.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType CulturalHeritage
diagram APSFR_p37.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children typeCulturalHeritage otherConsequenceDescription
used by
element TypeofPotentialConsequences/CulturalHeritage
source <xs:complexType name="CulturalHeritage">
  <xs:sequence>
    <xs:element name="typeCulturalHeritage" type="fd:TypeCulturalHeritage_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Define relevant type of Consequences on Cultural Heritage. One or more options can be selected.


- B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.
- B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.
- B33=Other
- B34=Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element CulturalHeritage/typeCulturalHeritage
diagram APSFR_p38.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type TypeCulturalHeritage_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration B31 - Cultural Assets
enumeration B32 - Landscape
enumeration B33 - Other
enumeration B34 - Not applicable
annotation
documentation
Required. Define relevant type of Consequences on Cultural Heritage. One or more options can be selected.


- B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.
- B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.
- B33=Other
- B34=Not applicable
source <xs:element name="typeCulturalHeritage" type="fd:TypeCulturalHeritage_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Define relevant type of Consequences on Cultural Heritage. One or more options can be selected.


- B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.
- B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.
- B33=Other
- B34=Not applicable</xs:documentation>
  </xs:annotation>
</xs:element>

element CulturalHeritage/otherConsequenceDescription
diagram APSFR_p39.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Conditional. Only to be used if the type is set to 'Other' in the enumeration list
source <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
  </xs:annotation>
</xs:element>

complexType EconomicActivity
diagram APSFR_p40.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children typeEconomicActivity otherConsequenceDescription
used by
element TypeofPotentialConsequences/EconomicActivity
annotation
documentation
Conditional. Only to be used if the type is set to 'Other' in the enumeration list
source <xs:complexType name="EconomicActivity">
  <xs:annotation>
    <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="typeEconomicActivity" type="fd:TypeEconomicActivity_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Define relevant type of consequences on economic activity. One or more options can be selected.


- B41 – Property
- B42 – Infrastructure
- B43 – Rural Land Use
- B44 – Economic Activity
- B45 – Other
- B46 – Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element EconomicActivity/typeEconomicActivity
diagram APSFR_p41.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type TypeEconomicActivity_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration B41 - Property
enumeration B42 - Infrastructure
enumeration B43 - Rural Land Use
enumeration B44 - Economic Activity
enumeration B45 - Other
enumeration B46 - Not applicable
annotation
documentation
Required. Define relevant type of consequences on economic activity. One or more options can be selected.


- B41 – Property
- B42 – Infrastructure
- B43 – Rural Land Use
- B44 – Economic Activity
- B45 – Other
- B46 – Not applicable
source <xs:element name="typeEconomicActivity" type="fd:TypeEconomicActivity_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Define relevant type of consequences on economic activity. One or more options can be selected.


- B41 – Property
- B42 – Infrastructure
- B43 – Rural Land Use
- B44 – Economic Activity
- B45 – Other
- B46 – Not applicable</xs:documentation>
  </xs:annotation>
</xs:element>

element EconomicActivity/otherConsequenceDescription
diagram APSFR_p42.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Conditional. Only to be used if the type is set to 'Other' in the enumeration list
source <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
  </xs:annotation>
</xs:element>

complexType Environment
diagram APSFR_p43.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children typeEnvironment otherConsequenceDescription
used by
element TypeofPotentialConsequences/Environment
source <xs:complexType name="Environment">
  <xs:sequence>
    <xs:element name="typeEnvironment" type="fd:TypeEnvironment_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Define relevant type of Consequences. The list isin line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6). Indicate consequence from enumeration list, one or more options can be selected:

- B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.
- B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.
- B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.
- B24=Other potential adverse environmental impacts, such as those on soil,biodiversity, flora and fauna, etc.
- B25=Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element Environment/typeEnvironment
diagram APSFR_p44.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type TypeEnvironment_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration B21 - Waterbody Status
enumeration B22 - Protected Areas
enumeration B23 - Pollution Sources
enumeration B24 - Other potential adverse environmental impacts
enumeration B25 - Not applicable
annotation
documentation
Required. Define relevant type of Consequences. The list isin line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6). Indicate consequence from enumeration list, one or more options can be selected:

- B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.
- B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.
- B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.
- B24=Other potential adverse environmental impacts, such as those on soil,biodiversity, flora and fauna, etc.
- B25=Not applicable
source <xs:element name="typeEnvironment" type="fd:TypeEnvironment_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Define relevant type of Consequences. The list isin line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6). Indicate consequence from enumeration list, one or more options can be selected:

- B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.
- B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.
- B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.
- B24=Other potential adverse environmental impacts, such as those on soil,biodiversity, flora and fauna, etc.
- B25=Not applicable</xs:documentation>
  </xs:annotation>
</xs:element>

element Environment/otherConsequenceDescription
diagram APSFR_p45.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Conditional. Only to be used if the type is set to 'Other' in the enumeration list
source <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
  </xs:annotation>
</xs:element>

complexType HumanHealthSocial
diagram APSFR_p46.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children typeHumanHealth otherConsequenceDescription
used by
element TypeofPotentialConsequences/HumanHealthSocial
source <xs:complexType name="HumanHealthSocial">
  <xs:sequence>
    <xs:element name="typeHumanHealth" type="fd:TypeHumanHealth_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Define relevant type of Consequences. The list is in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6). Choose from enumeration list, (one or more options can be selected):

- B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.


- B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).
- B13=Other
- B14=Not applicaple</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element HumanHealthSocial/typeHumanHealth
diagram APSFR_p47.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type TypeHumanHealth_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration B11 - Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.
enumeration B12 - Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).
enumeration B13 - Other
enumeration B14 - Not applicaple
enumeration B10
annotation
documentation
Required. Define relevant type of Consequences. The list is in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6). Choose from enumeration list, (one or more options can be selected):

- B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.


- B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).
- B13=Other
- B14=Not applicaple
source <xs:element name="typeHumanHealth" type="fd:TypeHumanHealth_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Define relevant type of Consequences. The list is in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6). Choose from enumeration list, (one or more options can be selected):

- B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.


- B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).
- B13=Other
- B14=Not applicaple</xs:documentation>
  </xs:annotation>
</xs:element>

element HumanHealthSocial/otherConsequenceDescription
diagram APSFR_p48.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String250Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
Conditional. Only to be used if the type is set to 'Other' in the enumeration list
source <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
  </xs:annotation>
</xs:element>

complexType MechanismsOfInternationalCoordination
diagram APSFR_p49.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children mechanismsUsed otherMechanismsOfInternationalCoordination reference
used by
element APSFR/MechanismsOfInternationalCoordination
annotation
documentation
Optianal.
source <xs:complexType name="MechanismsOfInternationalCoordination">
  <xs:annotation>
    <xs:documentation>Optianal.</xs:documentation>
  </xs:annotation>
  <xs:sequence minOccurs="0">
    <xs:element name="mechanismsUsed" type="fd:MechanismsOfInternationalCoordination_Enum" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional, only for international UoMs/RBDs which have international APSFRs. What mechanisms of coordination have taken place between MS and countries within international RBDs or International units of management? (more than one option can be selected):


- International River Commission
- Bilateral border water commissions
- International coordination and working groups
- Bilateral coordination and working groups
- Regulations in place to enable exchange of information at international level
- Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
- Informal arrangements (groups discussions and exchange of information)
- Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action


- Other (including ‘no coordination’)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherMechanismsOfInternationalCoordination" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other mechanisms have been used to for coordination.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional, only for international UoMs/RBDs. Provide document(s) or link(s) detailing the coordination mechanisms that are in place.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element MechanismsOfInternationalCoordination/mechanismsUsed
diagram APSFR_p50.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type MechanismsOfInternationalCoordination_Enum
properties
isRef 0
minOcc 0
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Bilateral border water commissions
enumeration Informal arrangements (groups discussions and exchange of information)
enumeration International coordination and working groups
enumeration International River Commission
enumeration Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration Regulations in place to enable exchange of information at international level
enumeration Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration Other
annotation
documentation
Conditional, only for international UoMs/RBDs which have international APSFRs. What mechanisms of coordination have taken place between MS and countries within international RBDs or International units of management? (more than one option can be selected):


- International River Commission
- Bilateral border water commissions
- International coordination and working groups
- Bilateral coordination and working groups
- Regulations in place to enable exchange of information at international level
- Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
- Informal arrangements (groups discussions and exchange of information)
- Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action


- Other (including ‘no coordination’)
source <xs:element name="mechanismsUsed" type="fd:MechanismsOfInternationalCoordination_Enum" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Conditional, only for international UoMs/RBDs which have international APSFRs. What mechanisms of coordination have taken place between MS and countries within international RBDs or International units of management? (more than one option can be selected):


- International River Commission
- Bilateral border water commissions
- International coordination and working groups
- Bilateral coordination and working groups
- Regulations in place to enable exchange of information at international level
- Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
- Informal arrangements (groups discussions and exchange of information)
- Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action


- Other (including ‘no coordination’)</xs:documentation>
  </xs:annotation>
</xs:element>

element MechanismsOfInternationalCoordination/otherMechanismsOfInternationalCoordination
diagram APSFR_p51.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other mechanisms have been used to for coordination.
source <xs:element name="otherMechanismsOfInternationalCoordination" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other mechanisms have been used to for coordination.</xs:documentation>
  </xs:annotation>
</xs:element>

element MechanismsOfInternationalCoordination/reference
diagram APSFR_p52.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Conditional, only for international UoMs/RBDs. Provide document(s) or link(s) detailing the coordination mechanisms that are in place.
source <xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Conditional, only for international UoMs/RBDs. Provide document(s) or link(s) detailing the coordination mechanisms that are in place.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType SummaryInformation
diagram APSFR_p53.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children overallApproachReviewReference CriteriaForInclusion ConsiderationsOfConsequences CriteriaForDeterminationSignificantFloodRisk
used by
element APSFR/SummaryInformation
annotation
documentation
This group of schemas and schema elements relate to the provision of summary information and apply at the UoM level.

In the first cycle, information was requested to be provided in a summary text format.
The schemas for APSFR have been updated to obtain greater depth and clarity in the information provided with the use of enumeration lists and the opportunity for MS to provide more detailed information via reference document(s) or links to specific sources of information.
source <xs:complexType name="SummaryInformation">
  <xs:annotation>
    <xs:documentation>This group of schemas and schema elements relate to the provision of summary information and apply at the UoM level.

In the first cycle, information was requested to be provided in a summary text format.
The schemas for APSFR have been updated to obtain greater depth and clarity in the information provided with the use of enumeration lists and the opportunity for MS to provide more detailed information via reference document(s) or links to specific sources of information.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="overallApproachReviewReference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide a reference or references describing how the review process to the overall approach and methodology applied to designate APSFRs has been undertaken and, where relavant, what changes have been implemented since the first cycle of reporting.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CriteriaForInclusion" type="CriteriaForInclusion"/>
    <xs:element name="ConsiderationsOfConsequences" type="ConsiderationsOfConsequences"/>
    <xs:element name="CriteriaForDeterminationSignificantFloodRisk" type="CriteriaForDeterminationSignificantFloodRisk"/>
  </xs:sequence>
</xs:complexType>

element SummaryInformation/overallApproachReviewReference
diagram APSFR_p54.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ReferenceType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children Hyperlink FileName Bookmark DocumentName Subject
annotation
documentation
Required. Provide a reference or references describing how the review process to the overall approach and methodology applied to designate APSFRs has been undertaken and, where relavant, what changes have been implemented since the first cycle of reporting.
source <xs:element name="overallApproachReviewReference" type="fd:ReferenceType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Provide a reference or references describing how the review process to the overall approach and methodology applied to designate APSFRs has been undertaken and, where relavant, what changes have been implemented since the first cycle of reporting.</xs:documentation>
  </xs:annotation>
</xs:element>

element SummaryInformation/CriteriaForInclusion
diagram APSFR_p55.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CriteriaForInclusion
properties
isRef 0
content complex
children criteriaUsed otherCriteriaDescription
source <xs:element name="CriteriaForInclusion" type="CriteriaForInclusion"/>

element SummaryInformation/ConsiderationsOfConsequences
diagram APSFR_p56.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type ConsiderationsOfConsequences
properties
isRef 0
content complex
children considerationsHumanHealth considerationsEnvironment considerationsCulturalHeritage considerationsEconomicActivity methodologyReference
source <xs:element name="ConsiderationsOfConsequences" type="ConsiderationsOfConsequences"/>

element SummaryInformation/CriteriaForDeterminationSignificantFloodRisk
diagram APSFR_p57.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CriteriaForDeterminationSignificantFloodRisk
properties
isRef 0
content complex
children criteriaUsed expertJudgementDescription otherCriteriaDescription reference
source <xs:element name="CriteriaForDeterminationSignificantFloodRisk" type="CriteriaForDeterminationSignificantFloodRisk"/>

complexType TypeOfFloods
diagram APSFR_p58.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children sourceOfFlooding otherSourceDescription sourceUncertainDescription mechanismOfFlooding otherMechanismDescription mechanismUncertainDescription characteristicsOfFlooding otherCharacteristicsDescription characteristicsUncertainDescription
used by
element AreasOfFloodRisk/TypeOfFloods
source <xs:complexType name="TypeOfFloods">
  <xs:sequence>
    <xs:element name="sourceOfFlooding" type="fd:SourceofFlooding_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. For each APSFR, indicate the source of floods from the enumeration list (one or more options can be selected) that are considered relevant


- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.
- A17=No data available on the source of flooding


- A18=Source of flooding uncertainn </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherSourceDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘A16=Other’ selected from enumeration list provide a description of the other source(s)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sourceUncertainDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘A18=Source of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="mechanismOfFlooding" type="fd:MechanismofFlooding_Enum" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Indicate the mechanism of flooding from the enumeration list (one or more options can be selected).

- A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.
- A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.
- A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.
- A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.
- A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.
- A26= No data available on the mechanism of flooding
- A27=Mechanism of flooding uncertain </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherMechanismDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘A25=Other’ selected from enumeration list provide a description of the other mechanism(s)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="mechanismUncertainDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘A27=Mechanism of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="characteristicsOfFlooding" type="fd:CharacteristicsofFlooding_Enum" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Define the relevant characteristics of flooding (one or more options can be selected).

- A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
- A32=Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
- A33=Other rapid onset: A flood which develops quickly, other than a flash flood .
- A34=Medium onset flood: An onset of flooding, that occurs at a slower rate than a flash flood.
- A35=Slow onset flood: A flood which takes a longer time to develop.
- A36=Debris Flow: A flood conveying a high degree of debris.
- A37=High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
- A38=Deep Flood: A flood where the floodwaters are of significant depth.
- A39=Other characteristics, or no special characteristics.
- A40=No data available on characteristics of flooding
- A41=Characteristics of flooding uncertain.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherCharacteristicsDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘A39=Other’ selected from enumeration list provide a description of the other characteristics or state whether there are no special characteristics</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="characteristicsUncertainDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘A41=Characteristics of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element TypeOfFloods/sourceOfFlooding
diagram APSFR_p59.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type SourceofFlooding_Enum
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration A11 - Fluvial
enumeration A12 - Pluvial
enumeration A13 - Groundwater
enumeration A14 - Sea Water
enumeration A15 - Artificial Water-Bearing Infrastructure
enumeration A16 - Other: Flooding of land by water due to other sources, can include other tsunamis.
enumeration A17 - No data available on the source of flooding
enumeration A18 - Source of flooding uncertain
annotation
documentation
Required. For each APSFR, indicate the source of floods from the enumeration list (one or more options can be selected) that are considered relevant


- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.
- A17=No data available on the source of flooding


- A18=Source of flooding uncertainn
source <xs:element name="sourceOfFlooding" type="fd:SourceofFlooding_Enum" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. For each APSFR, indicate the source of floods from the enumeration list (one or more options can be selected) that are considered relevant


- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.
- A17=No data available on the source of flooding


- A18=Source of flooding uncertainn </xs:documentation>
  </xs:annotation>
</xs:element>

element TypeOfFloods/otherSourceDescription
diagram APSFR_p60.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘A16=Other’ selected from enumeration list provide a description of the other source(s)
source <xs:element name="otherSourceDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘A16=Other’ selected from enumeration list provide a description of the other source(s)</xs:documentation>
  </xs:annotation>
</xs:element>

element TypeOfFloods/sourceUncertainDescription
diagram APSFR_p61.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘A18=Source of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty
source <xs:element name="sourceUncertainDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘A18=Source of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
  </xs:annotation>
</xs:element>

element TypeOfFloods/mechanismOfFlooding
diagram APSFR_p62.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type MechanismofFlooding_Enum
properties
isRef 0
minOcc 0
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration A21 - Natural Exceedance
enumeration A22 - Defence Exceedance
enumeration A23 - Defence or Infrastructural Failure
enumeration A24 - Blockage / Restriction
enumeration A25 - Other
enumeration A26 - No data available on the mechanism of flooding
enumeration A27 - Mechanism of flooding uncertain
annotation
documentation
Required. Indicate the mechanism of flooding from the enumeration list (one or more options can be selected).

- A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.
- A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.
- A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.
- A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.
- A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.
- A26= No data available on the mechanism of flooding
- A27=Mechanism of flooding uncertain
source <xs:element name="mechanismOfFlooding" type="fd:MechanismofFlooding_Enum" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Indicate the mechanism of flooding from the enumeration list (one or more options can be selected).

- A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.
- A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.
- A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.
- A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.
- A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.
- A26= No data available on the mechanism of flooding
- A27=Mechanism of flooding uncertain </xs:documentation>
  </xs:annotation>
</xs:element>

element TypeOfFloods/otherMechanismDescription
diagram APSFR_p63.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘A25=Other’ selected from enumeration list provide a description of the other mechanism(s)
source <xs:element name="otherMechanismDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘A25=Other’ selected from enumeration list provide a description of the other mechanism(s)</xs:documentation>
  </xs:annotation>
</xs:element>

element TypeOfFloods/mechanismUncertainDescription
diagram APSFR_p64.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘A27=Mechanism of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty
source <xs:element name="mechanismUncertainDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘A27=Mechanism of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
  </xs:annotation>
</xs:element>

element TypeOfFloods/characteristicsOfFlooding
diagram APSFR_p65.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CharacteristicsofFlooding_Enum
properties
isRef 0
minOcc 0
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration A31 - Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
enumeration A32 - Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
enumeration A33 - Other rapid onset: A flood which develops quickly, other than a flash flood .
enumeration A34 - Medium onset flood: An onset of flooding that occurs at a slower rate than a flash flood.
enumeration A35 - Slow onset flood: A flood which takes a longer time to develop.
enumeration A36 - Debris Flow: A flood conveying a high degree of debris.
enumeration A37 - High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
enumeration A38 - Deep Flood: A flood where the floodwaters are of significant depth.
enumeration A39 - Other characteristics, or no special characteristics.
enumeration A40 - No data available on characteristics of flooding
enumeration A41 - Characteristics of flooding uncertain
annotation
documentation
Required. Define the relevant characteristics of flooding (one or more options can be selected).

- A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
- A32=Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
- A33=Other rapid onset: A flood which develops quickly, other than a flash flood .
- A34=Medium onset flood: An onset of flooding, that occurs at a slower rate than a flash flood.
- A35=Slow onset flood: A flood which takes a longer time to develop.
- A36=Debris Flow: A flood conveying a high degree of debris.
- A37=High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
- A38=Deep Flood: A flood where the floodwaters are of significant depth.
- A39=Other characteristics, or no special characteristics.
- A40=No data available on characteristics of flooding
- A41=Characteristics of flooding uncertain.
source <xs:element name="characteristicsOfFlooding" type="fd:CharacteristicsofFlooding_Enum" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Required. Define the relevant characteristics of flooding (one or more options can be selected).

- A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
- A32=Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
- A33=Other rapid onset: A flood which develops quickly, other than a flash flood .
- A34=Medium onset flood: An onset of flooding, that occurs at a slower rate than a flash flood.
- A35=Slow onset flood: A flood which takes a longer time to develop.
- A36=Debris Flow: A flood conveying a high degree of debris.
- A37=High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
- A38=Deep Flood: A flood where the floodwaters are of significant depth.
- A39=Other characteristics, or no special characteristics.
- A40=No data available on characteristics of flooding
- A41=Characteristics of flooding uncertain.</xs:documentation>
  </xs:annotation>
</xs:element>

element TypeOfFloods/otherCharacteristicsDescription
diagram APSFR_p66.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘A39=Other’ selected from enumeration list provide a description of the other characteristics or state whether there are no special characteristics
source <xs:element name="otherCharacteristicsDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘A39=Other’ selected from enumeration list provide a description of the other characteristics or state whether there are no special characteristics</xs:documentation>
  </xs:annotation>
</xs:element>

element TypeOfFloods/characteristicsUncertainDescription
diagram APSFR_p67.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type String1000Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
Conditional. If ‘A41=Characteristics of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty
source <xs:element name="characteristicsUncertainDescription" type="fd:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Conditional. If ‘A41=Characteristics of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
  </xs:annotation>
</xs:element>

complexType TypeofPotentialConsequences
diagram APSFR_p68.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
children Environment HumanHealthSocial CulturalHeritage EconomicActivity
used by
element AreasOfFloodRisk/TypeofPotentialConsequences
source <xs:complexType name="TypeofPotentialConsequences">
  <xs:sequence>
    <xs:element name="Environment" type="Environment" maxOccurs="unbounded"/>
    <xs:element name="HumanHealthSocial" type="HumanHealthSocial" maxOccurs="unbounded"/>
    <xs:element name="CulturalHeritage" type="CulturalHeritage" maxOccurs="unbounded"/>
    <xs:element name="EconomicActivity" type="EconomicActivity" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element TypeofPotentialConsequences/Environment
diagram APSFR_p69.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type Environment
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children typeEnvironment otherConsequenceDescription
source <xs:element name="Environment" type="Environment" maxOccurs="unbounded"/>

element TypeofPotentialConsequences/HumanHealthSocial
diagram APSFR_p70.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type HumanHealthSocial
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children typeHumanHealth otherConsequenceDescription
source <xs:element name="HumanHealthSocial" type="HumanHealthSocial" maxOccurs="unbounded"/>

element TypeofPotentialConsequences/CulturalHeritage
diagram APSFR_p71.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type CulturalHeritage
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children typeCulturalHeritage otherConsequenceDescription
source <xs:element name="CulturalHeritage" type="CulturalHeritage" maxOccurs="unbounded"/>

element TypeofPotentialConsequences/EconomicActivity
diagram APSFR_p72.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec
type EconomicActivity
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children typeEconomicActivity otherConsequenceDescription
source <xs:element name="EconomicActivity" type="EconomicActivity" maxOccurs="unbounded"/>

complexType ReferenceType
diagram APSFR_p73.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
children Hyperlink FileName Bookmark DocumentName Subject
used by
elements AreasOfFloodRisk/generalAdditionalCommentsReference ConsiderationsOfConsequences/methodologyReference SummaryInformation/overallApproachReviewReference CriteriaForDeterminationSignificantFloodRisk/reference MechanismsOfInternationalCoordination/reference
annotation
documentation
ReferenceType: Reference Structure
All the references to Methodology
source <xs:complexType name="ReferenceType">
  <xs:annotation>
    <xs:documentation>ReferenceType: Reference Structure
All the references to Methodology</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice>
      <xs:element name="Hyperlink" type="URLType"/>
      <xs:element name="FileName" type="String50Type"/>
    </xs:choice>
    <xs:element name="Bookmark" type="String50Type"/>
    <xs:element name="DocumentName" type="String250Type"/>
    <xs:element name="Subject" type="String250Type"/>
  </xs:sequence>
</xs:complexType>

element ReferenceType/Hyperlink
diagram APSFR_p74.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type URLType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
pattern https?://.*
source <xs:element name="Hyperlink" type="URLType"/>

element ReferenceType/FileName
diagram APSFR_p75.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type String50Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 50
source <xs:element name="FileName" type="String50Type"/>

element ReferenceType/Bookmark
diagram APSFR_p76.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type String50Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 50
source <xs:element name="Bookmark" type="String50Type"/>

element ReferenceType/DocumentName
diagram APSFR_p77.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type String250Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
source <xs:element name="DocumentName" type="String250Type"/>

element ReferenceType/Subject
diagram APSFR_p78.png
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type String250Type
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 250
source <xs:element name="Subject" type="String250Type"/>

simpleType AnnexAspectsIncluded_enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Conclusions drawn from the flood hazard and flood risk maps (Y/N)
enumeration Conclusions of PFRA in the form of a summary map (Y/N)
enumeration A description of the appropriate objectives of flood risk management (Y/N)
enumeration A summary of the measures and their prioritisation to achieve the appropriate objectives (Y/N)
enumeration For shared river basins a description of the cost-benefit analysis used to assess measures with transnational effects (Y/N)
enumeration Description of the way in which progress in implementing the plan is monitored (Y/N)
enumeration Summary of the public information and consultation (Y/N)
enumeration A list of competent authorities (Y/N)
enumeration A description of the coordination process within any IRBD (Y/N)
enumeration A summary of reviews and updates of the plans (Y/N)
enumeration An assessment of progress made towards achieving the objectives (Y/N)
enumeration A description and explanation of any measures previously identified but not taken forward (Y/N)
enumeration A description of additional measures since the publication of prior plans (Y/N)
annotation
documentation

- Conclusions of PFRA in the form of a summary map (Y/N)
- Conclusions drawn from the flood hazard and flood risk maps (Y/N)
- A description of the appropriate objectives of flood risk management (Y/N)
- A summary of the measures and their prioritisation to achieve the appropriate objectives (Y/N)
- For shared river basins a description of the cost-benefit analysis used to assess measures with transnational effects (Y/N)
- Description of the way in which progress in implementing the plan is monitored (Y/N)
- Summary of the public information and consultation (Y/N)
- A list of competent authorities (Y/N)
- A description of the coordination process within any IRBD (Y/N)
- A description of the coordination process with the WFD (Y/N)
- A summary of reviews and updates of the plans (Y/N)
- An assessment of progress made towards achieving the objectives (Y/N)
- A description and explanation of any measures previously identified but not taken forward (Y/N)
- A description of additional measures since the publication of prior plans (Y/N)
source <xs:simpleType name="AnnexAspectsIncluded_enum">
  <xs:annotation>
    <xs:documentation>
- Conclusions of PFRA in the form of a summary map (Y/N)
- Conclusions drawn from the flood hazard and flood risk maps (Y/N)
- A description of the appropriate objectives of flood risk management (Y/N)
- A summary of the measures and their prioritisation to achieve the appropriate objectives (Y/N)
- For shared river basins a description of the cost-benefit analysis used to assess measures with transnational effects (Y/N)
- Description of the way in which progress in implementing the plan is monitored (Y/N)
- Summary of the public information and consultation (Y/N)
- A list of competent authorities (Y/N)
- A description of the coordination process within any IRBD (Y/N)
- A description of the coordination process with the WFD (Y/N)
- A summary of reviews and updates of the plans (Y/N)
- An assessment of progress made towards achieving the objectives (Y/N)
- A description and explanation of any measures previously identified but not taken forward (Y/N)
- A description of additional measures since the publication of prior plans (Y/N)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Conclusions drawn from the flood hazard and flood risk maps (Y/N)"/>
    <xs:enumeration value="Conclusions of PFRA in the form of a summary map (Y/N)"/>
    <xs:enumeration value="A description of the appropriate objectives of flood risk management (Y/N)"/>
    <xs:enumeration value="A summary of the measures and their prioritisation to achieve the appropriate objectives (Y/N)"/>
    <xs:enumeration value="For shared river basins a description of the cost-benefit analysis used to assess measures with transnational effects (Y/N)"/>
    <xs:enumeration value="Description of the way in which progress in implementing the plan is monitored (Y/N)"/>
    <xs:enumeration value="Summary of the public information and consultation (Y/N)"/>
    <xs:enumeration value="A list of competent authorities (Y/N)"/>
    <xs:enumeration value="A description of the coordination process within any IRBD (Y/N)"/>
    <xs:enumeration value="A summary of reviews and updates of the plans (Y/N)"/>
    <xs:enumeration value="An assessment of progress made towards achieving the objectives (Y/N)"/>
    <xs:enumeration value="A description and explanation of any measures previously identified but not taken forward (Y/N)"/>
    <xs:enumeration value="A description of additional measures since the publication of prior plans (Y/N)"/>
  </xs:restriction>
</xs:simpleType>

simpleType Article_6.6_Justification_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Other justification
enumeration Prevention of damage and damge potential through legal regulations for use (e.g. for the embankment foreland)
enumeration Risk of failure of existing defences assessed
enumeration Risk of overtopping of existing flood defences assessed
enumeration Article 6.6 not applied
source <xs:simpleType name="Article_6.6_Justification_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Other justification"/>
    <xs:enumeration value="Prevention of damage and damge potential through legal regulations for use (e.g. for the embankment foreland)"/>
    <xs:enumeration value="Risk of failure of existing defences assessed"/>
    <xs:enumeration value="Risk of overtopping of existing flood defences assessed"/>
    <xs:enumeration value="Article 6.6 not applied"/>
  </xs:restriction>
</xs:simpleType>

simpleType Article_6.7_Justification_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Groundwater is considered as a contributing source rather than a main source of flooding
enumeration It is difficult to distinguish the impact of groundwater flooding from other sources of flooding
enumeration Only low probability groundwater flooding is assessed to be a hazardous risk
enumeration Other justification
enumeration There is limited information or historical records on groundwater flooding
enumeration Article 6.7 not applied
source <xs:simpleType name="Article_6.7_Justification_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Groundwater is considered as a contributing source rather than a main source of flooding"/>
    <xs:enumeration value="It is difficult to distinguish the impact of groundwater flooding from other sources of flooding"/>
    <xs:enumeration value="Only low probability groundwater flooding is assessed to be a hazardous risk"/>
    <xs:enumeration value="Other justification"/>
    <xs:enumeration value="There is limited information or historical records on groundwater flooding"/>
    <xs:enumeration value="Article 6.7 not applied"/>
  </xs:restriction>
</xs:simpleType>

simpleType AspectsIncluded_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Costs and benefits (of measures) (Y/N)Flood extent (Y/N)
enumeration Flood conveyance routes (Y/N)
enumeration Areas which have potential to retain flood water, such as natural floodplains (Y/N)
enumeration The environmental objectives of Article 4 of the WFD (Y/N)
enumeration Soil and water management (Y/N)
enumeration Spatial planning (Y/N)
enumeration Land use (Y/N)
enumeration Nature conservation (Y/N)
enumeration Navigation and port infrastructure (Y/N)
enumeration Promotion of sustainable land use practices (Y/N)
enumeration Improvement of water retention (Y/N)
enumeration Controlled flooding of certain areas in case of a flood event (Y/N)
enumeration The use of flood forecasting and early warning systems (Y/N)
annotation
documentation

- Costs and benefits (of measures) (Y/N)Flood extent (Y/N)
- Flood conveyance routes (Y/N)
- Areas which have potential to retain flood water, such as natural floodplains (Y/N)
- The environmental objectives of Article 4 of the WFD (Y/N)
- Soil and water management (Y/N)
- Spatial planning (Y/N)
- Land use (Y/N)
- Nature conservation (Y/N)
- Navigation and port infrastructure (Y/N)
- Promotion of sustainable land use practices (Y/N)
- Improvement of water retention (Y/N)
- Controlled flooding of certain areas in case of a flood event (Y/N)

The use of flood forecasting and early warning systems (Y/N)
source <xs:simpleType name="AspectsIncluded_Enum">
  <xs:annotation>
    <xs:documentation>
- Costs and benefits (of measures) (Y/N)Flood extent (Y/N)
- Flood conveyance routes (Y/N)
- Areas which have potential to retain flood water, such as natural floodplains (Y/N)
- The environmental objectives of Article 4 of the WFD (Y/N)
- Soil and water management (Y/N)
- Spatial planning (Y/N)
- Land use (Y/N)
- Nature conservation (Y/N)
- Navigation and port infrastructure (Y/N)
- Promotion of sustainable land use practices (Y/N)
- Improvement of water retention (Y/N)
- Controlled flooding of certain areas in case of a flood event (Y/N)

The use of flood forecasting and early warning systems (Y/N)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Costs and benefits (of measures) (Y/N)Flood extent (Y/N)"/>
    <xs:enumeration value="Flood conveyance routes (Y/N)"/>
    <xs:enumeration value="Areas which have potential to retain flood water, such as natural floodplains (Y/N)"/>
    <xs:enumeration value="The environmental objectives of Article 4 of the WFD (Y/N)"/>
    <xs:enumeration value="Soil and water management (Y/N)"/>
    <xs:enumeration value="Spatial planning (Y/N)"/>
    <xs:enumeration value="Land use (Y/N)"/>
    <xs:enumeration value="Nature conservation (Y/N)"/>
    <xs:enumeration value="Navigation and port infrastructure (Y/N)"/>
    <xs:enumeration value="Promotion of sustainable land use practices (Y/N)"/>
    <xs:enumeration value="Improvement of water retention (Y/N)"/>
    <xs:enumeration value="Controlled flooding of certain areas in case of a flood event (Y/N)"/>
    <xs:enumeration value="The use of flood forecasting and early warning systems (Y/N)"/>
  </xs:restriction>
</xs:simpleType>

simpleType CategoryFloods_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Past flood
enumeration Potential future floods
annotation
documentation
Can be past flood (past) or potential future flood (future)
source <xs:simpleType name="CategoryFloods_Enum">
  <xs:annotation>
    <xs:documentation>Can be past flood (past) or potential future flood (future)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Past flood"/>
    <xs:enumeration value="Potential future floods"/>
  </xs:restriction>
</xs:simpleType>

simpleType CharacteristicsofFlooding_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element TypeOfFloods/characteristicsOfFlooding
facets
Kind Value annotation
enumeration A31 - Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
enumeration A32 - Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
enumeration A33 - Other rapid onset: A flood which develops quickly, other than a flash flood .
enumeration A34 - Medium onset flood: An onset of flooding that occurs at a slower rate than a flash flood.
enumeration A35 - Slow onset flood: A flood which takes a longer time to develop.
enumeration A36 - Debris Flow: A flood conveying a high degree of debris.
enumeration A37 - High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
enumeration A38 - Deep Flood: A flood where the floodwaters are of significant depth.
enumeration A39 - Other characteristics, or no special characteristics.
enumeration A40 - No data available on characteristics of flooding
enumeration A41 - Characteristics of flooding uncertain
annotation
documentation
Define relevant characteristics of flooding. The list are in line with table A3 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.

A36=Debris Flow: A flood conveying a high degree of debris.

A39=Other characteristics, or no special characteristics.

A40=No data available on characteristics of flooding,

A41=Characteristics of flooding uncertain.
source <xs:simpleType name="CharacteristicsofFlooding_Enum">
  <xs:annotation>
    <xs:documentation>Define relevant characteristics of flooding. The list are in line with table A3 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.

A36=Debris Flow: A flood conveying a high degree of debris.

A39=Other characteristics, or no special characteristics.

A40=No data available on characteristics of flooding,

A41=Characteristics of flooding uncertain.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="A31 - Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area."/>
    <xs:enumeration value="A32 - Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams."/>
    <xs:enumeration value="A33 - Other rapid onset: A flood which develops quickly, other than a flash flood ."/>
    <xs:enumeration value="A34 - Medium onset flood: An onset of flooding that occurs at a slower rate than a flash flood."/>
    <xs:enumeration value="A35 - Slow onset flood: A flood which takes a longer time to develop."/>
    <xs:enumeration value="A36 - Debris Flow: A flood conveying a high degree of debris."/>
    <xs:enumeration value="A37 - High Velocity Flow: A flood where the floodwaters are flowing at a high velocity."/>
    <xs:enumeration value="A38 - Deep Flood: A flood where the floodwaters are of significant depth."/>
    <xs:enumeration value="A39 - Other characteristics, or no special characteristics."/>
    <xs:enumeration value="A40 - No data available on characteristics of flooding"/>
    <xs:enumeration value="A41 - Characteristics of flooding uncertain"/>
  </xs:restriction>
</xs:simpleType>

simpleType ClimateChange_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration No
enumeration Yes
enumeration Yes but not all sources
enumeration Yes but not for all maps
source <xs:simpleType name="ClimateChange_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="No"/>
    <xs:enumeration value="Yes"/>
    <xs:enumeration value="Yes but not all sources"/>
    <xs:enumeration value="Yes but not for all maps"/>
  </xs:restriction>
</xs:simpleType>

simpleType ConsultationStakeholdersInvolved_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Civil Protection Authorities
enumeration Flood Warning/ Defence Authorities
enumeration Drainage Authorities
enumeration Emergency services
enumeration Water supply and sanitation
enumeration Community groups
enumeration Agriculture/farmers
enumeration Energy/hydropower
enumeration Navigation/ports
enumeration Fisheries/aquaculture
enumeration Industry
enumeration NGO's /nature protection
enumeration Consumer Groups
enumeration Local/Regional authorities
enumeration Academia/Research Institutions
enumeration Other
annotation
documentation
Table summarising across MS, the groups of stakeholders who have been actively involved in the development of the FRMPs
source <xs:simpleType name="ConsultationStakeholdersInvolved_Enum">
  <xs:annotation>
    <xs:documentation>Table summarising across MS, the groups of stakeholders who have been actively involved in the development of the FRMPs</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Civil Protection Authorities"/>
    <xs:enumeration value="Flood Warning/ Defence Authorities"/>
    <xs:enumeration value="Drainage Authorities"/>
    <xs:enumeration value="Emergency services"/>
    <xs:enumeration value="Water supply and sanitation"/>
    <xs:enumeration value="Community groups"/>
    <xs:enumeration value="Agriculture/farmers"/>
    <xs:enumeration value="Energy/hydropower"/>
    <xs:enumeration value="Navigation/ports"/>
    <xs:enumeration value="Fisheries/aquaculture"/>
    <xs:enumeration value="Industry"/>
    <xs:enumeration value="NGO's /nature protection"/>
    <xs:enumeration value="Consumer Groups"/>
    <xs:enumeration value="Local/Regional authorities"/>
    <xs:enumeration value="Academia/Research Institutions"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType ConsultationStakeholdersInvolvedMechanisms_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Establishment of advisory or working groups
enumeration Provision of information at relevant public exhibitions or providing notices on public sites
enumeration Stakeholder involvement in drafting
enumeration Formation of alliances
enumeration Other outreach activities with opportunities for discussion and dialogue
enumeration Other
annotation
documentation
Table summarising across MS, the mechanisms used to encourage the active involvement of stakeholders in the development of the FRMPs
source <xs:simpleType name="ConsultationStakeholdersInvolvedMechanisms_Enum">
  <xs:annotation>
    <xs:documentation>Table summarising across MS, the mechanisms used to encourage the active involvement of stakeholders in the development of the FRMPs</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Establishment of advisory or working groups"/>
    <xs:enumeration value="Provision of information at relevant public exhibitions or providing notices on public sites"/>
    <xs:enumeration value="Stakeholder involvement in drafting"/>
    <xs:enumeration value="Formation of alliances"/>
    <xs:enumeration value="Other outreach activities with opportunities for discussion and dialogue"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType CoordinateType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements AreasOfFloodRisk/lat AreasOfFloodRisk/lon
facets
Kind Value annotation
pattern \-{0,1}[0-9]{1,2}\.[0-9]{1,5}
annotation
documentation
Format Decimal degrees (-)dd.ddddd
source <xs:simpleType name="CoordinateType">
  <xs:annotation>
    <xs:documentation>Format Decimal degrees (-)dd.ddddd</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="\-{0,1}[0-9]{1,2}\.[0-9]{1,5}"/>
  </xs:restriction>
</xs:simpleType>

simpleType CoordinationFRMPandRBMP_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Integration of FRMP and RBMP into a single document
enumeration Joint consultation of draft FRMP and RBMP
enumeration Coordination between authorities responsible for developing FRMP and RBMP
enumeration The objectives of the FD have been considered in the WFD RBMPs and PoMs
enumeration Coordination with the environmental objectives in Art.4 of the WFD
enumeration Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures
enumeration Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures
enumeration Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs
enumeration Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure
enumeration The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives
enumeration The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives
enumeration Other
source <xs:simpleType name="CoordinationFRMPandRBMP_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Integration of FRMP and RBMP into a single document"/>
    <xs:enumeration value="Joint consultation of draft FRMP and RBMP"/>
    <xs:enumeration value="Coordination between authorities responsible for developing FRMP and RBMP"/>
    <xs:enumeration value="The objectives of the FD have been considered in the WFD RBMPs and PoMs"/>
    <xs:enumeration value="Coordination with the environmental objectives in Art.4 of the WFD"/>
    <xs:enumeration value="Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures"/>
    <xs:enumeration value="Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures"/>
    <xs:enumeration value="Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs"/>
    <xs:enumeration value="Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure"/>
    <xs:enumeration value="The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives"/>
    <xs:enumeration value="The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType CountryCode_enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element APSFR/c_Cd
facets
Kind Value annotation
enumeration AT
enumeration BE
enumeration BG
enumeration CH
enumeration CZ
enumeration CY
enumeration DE
enumeration DK
enumeration EE
enumeration EL
enumeration ES
enumeration FI
enumeration FR
enumeration HR
enumeration HU
enumeration IE
enumeration IS
enumeration IT
enumeration LT
enumeration LU
enumeration LV
enumeration MT
enumeration NO
enumeration NL
enumeration PL
enumeration PT
enumeration RO
enumeration SE
enumeration SI
enumeration SK
enumeration TR
enumeration UK
annotation
documentation
Unique 2 character ISO Code for the EU Member States
source <xs:simpleType name="CountryCode_enum">
  <xs:annotation>
    <xs:documentation>Unique 2 character ISO Code for the EU Member States</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="AT"/>
    <xs:enumeration value="BE"/>
    <xs:enumeration value="BG"/>
    <xs:enumeration value="CH"/>
    <xs:enumeration value="CZ"/>
    <xs:enumeration value="CY"/>
    <xs:enumeration value="DE"/>
    <xs:enumeration value="DK"/>
    <xs:enumeration value="EE"/>
    <xs:enumeration value="EL"/>
    <xs:enumeration value="ES"/>
    <xs:enumeration value="FI"/>
    <xs:enumeration value="FR"/>
    <xs:enumeration value="HR"/>
    <xs:enumeration value="HU"/>
    <xs:enumeration value="IE"/>
    <xs:enumeration value="IS"/>
    <xs:enumeration value="IT"/>
    <xs:enumeration value="LT"/>
    <xs:enumeration value="LU"/>
    <xs:enumeration value="LV"/>
    <xs:enumeration value="MT"/>
    <xs:enumeration value="NO"/>
    <xs:enumeration value="NL"/>
    <xs:enumeration value="PL"/>
    <xs:enumeration value="PT"/>
    <xs:enumeration value="RO"/>
    <xs:enumeration value="SE"/>
    <xs:enumeration value="SI"/>
    <xs:enumeration value="SK"/>
    <xs:enumeration value="TR"/>
    <xs:enumeration value="UK"/>
  </xs:restriction>
</xs:simpleType>

simpleType CriteriaForDeterminationFloodRisk_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element CriteriaForDeterminationSignificantFloodRisk/criteriaUsed
facets
Kind Value annotation
enumeration Area of property affected
enumeration Number of permanent residents affected by the flood extent
enumeration Value or area of property affected (residential and non-residential)
enumeration Number of buildings affected (residential and non-residential)
enumeration Adverse consequences to infrastructural assets
enumeration Damage exceeds specific threshold (area)
enumeration Adverse consequences on water bodies
enumeration Sources of pollution triggered from industrial installations
enumeration Adverse consequences to rural land use
enumeration Adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
enumeration Potential adverse consequences to properties
enumeration Adverse impacts on cultural assets and cultural landscapes
enumeration Recurrence periods
enumeration Recurrence periods in combination with land use
enumeration Flood extent
enumeration Flood duration
enumeration Water level or depth
enumeration Water velocity
enumeration Whether floods have occurred in the past
enumeration Specific weighting systems defined to assess significance
enumeration Expert Judgement
enumeration Number of past flood events
enumeration Damage caused in past flood events
enumeration Other
source <xs:simpleType name="CriteriaForDeterminationFloodRisk_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Area of property affected"/>
    <xs:enumeration value="Number of permanent residents affected by the flood extent"/>
    <xs:enumeration value="Value or area of property affected (residential and non-residential)"/>
    <xs:enumeration value="Number of buildings affected (residential and non-residential)"/>
    <xs:enumeration value="Adverse consequences to infrastructural assets"/>
    <xs:enumeration value="Damage exceeds specific threshold (area)"/>
    <xs:enumeration value="Adverse consequences on water bodies"/>
    <xs:enumeration value="Sources of pollution triggered from industrial installations"/>
    <xs:enumeration value="Adverse consequences to rural land use"/>
    <xs:enumeration value="Adverse consequences to economic activity (e.g. manufacturing, service and construction industries)"/>
    <xs:enumeration value="Potential adverse consequences to properties"/>
    <xs:enumeration value="Adverse impacts on cultural assets and cultural landscapes"/>
    <xs:enumeration value="Recurrence periods"/>
    <xs:enumeration value="Recurrence periods in combination with land use"/>
    <xs:enumeration value="Flood extent"/>
    <xs:enumeration value="Flood duration"/>
    <xs:enumeration value="Water level or depth"/>
    <xs:enumeration value="Water velocity"/>
    <xs:enumeration value="Whether floods have occurred in the past"/>
    <xs:enumeration value="Specific weighting systems defined to assess significance"/>
    <xs:enumeration value="Expert Judgement"/>
    <xs:enumeration value="Number of past flood events"/>
    <xs:enumeration value="Damage caused in past flood events"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType CriteriaForInclusion_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element CriteriaForInclusion/criteriaUsed
facets
Kind Value annotation
enumeration Flood defences not in place or not fully implemented
enumeration Frequency
enumeration Frequency or number of past events
enumeration In agreement with neighboring countries
enumeration Local knowledge and/or public opinion
enumeration Magnitude of risk to cultural heritage
enumeration Magnitude of risk to economic activity
enumeration Magnitude of risk to human health
enumeration Magnitude of risk to the environment
enumeration number or Iimpact of past events
enumeration Possible failure of flood defences
enumeration Changes in land use have increased vulnerability of the area to flooding
enumeration Exceeding thresholds under specific weighting systems defined to assess significance
enumeration Expert judgement
enumeration High level of damage expected
enumeration Other
enumeration Impact of past events
source <xs:simpleType name="CriteriaForInclusion_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Flood defences not in place or not fully implemented"/>
    <xs:enumeration value="Frequency"/>
    <xs:enumeration value="Frequency or number of past events"/>
    <xs:enumeration value="In agreement with neighboring countries"/>
    <xs:enumeration value="Local knowledge and/or public opinion"/>
    <xs:enumeration value="Magnitude of risk to cultural heritage"/>
    <xs:enumeration value="Magnitude of risk to economic activity"/>
    <xs:enumeration value="Magnitude of risk to human health"/>
    <xs:enumeration value="Magnitude of risk to the environment"/>
    <xs:enumeration value="number or Iimpact  of past events"/>
    <xs:enumeration value="Possible failure of flood defences"/>
    <xs:enumeration value="Changes in land use have increased vulnerability of the area to flooding"/>
    <xs:enumeration value="Exceeding thresholds under specific weighting systems defined to assess significance"/>
    <xs:enumeration value="Expert judgement"/>
    <xs:enumeration value="High level of damage expected"/>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="Impact of past events"/>
  </xs:restriction>
</xs:simpleType>

simpleType DataConfidentialityClassificationCode_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
attribute APSFR/@classificationCode
facets
Kind Value annotation
enumeration 001 - Unclassified
enumeration 003 - Confidential
annotation
documentation
Codes for data security classification:
001 = Unclassified - available for general circulation and public
003 = Confidential - available for EC reporting only
source <xs:simpleType name="DataConfidentialityClassificationCode_Enum">
  <xs:annotation>
    <xs:documentation>Codes for data security classification:
001 = Unclassified - available for general circulation and public
003 = Confidential - available for EC reporting only
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="001 - Unclassified"/>
    <xs:enumeration value="003 - Confidential"/>
  </xs:restriction>
</xs:simpleType>

simpleType DateTypeYearType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (xs:date, xs:gYear, xs:gYearMonth, NumberExceptionType)
annotation
documentation
Both date type yyyy-mm-dd, yyyy-mm and yyyy allowed and the exception types (-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable)
source <xs:simpleType name="DateTypeYearType">
  <xs:annotation>
    <xs:documentation>Both date type yyyy-mm-dd, yyyy-mm and yyyy allowed and the exception types (-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable)</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="xs:date xs:gYear xs:gYearMonth NumberExceptionType"/>
</xs:simpleType>

simpleType ElementsProbability6.6_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Article 6.6 applied
enumeration Flooding Extent
enumeration Other (e.g. conveyance routes)
enumeration Water depth/level
enumeration Water flow/velocity
annotation
documentation

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)
- Article 6.6 applied
source <xs:simpleType name="ElementsProbability6.6_Enum">
  <xs:annotation>
    <xs:documentation>
- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)
- Article 6.6 applied</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Article 6.6 applied"/>
    <xs:enumeration value="Flooding Extent"/>
    <xs:enumeration value="Other (e.g. conveyance routes)"/>
    <xs:enumeration value="Water depth/level"/>
    <xs:enumeration value="Water flow/velocity"/>
  </xs:restriction>
</xs:simpleType>

simpleType ElementsProbability6.7_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Article 6.7 applied
enumeration Flooding Extent
enumeration Other (e.g. conveyance routes)
enumeration Water depth/level
enumeration Water flow/velocity
annotation
documentation

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)
- Article 6.7 applied
source <xs:simpleType name="ElementsProbability6.7_Enum">
  <xs:annotation>
    <xs:documentation>
- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)
- Article 6.7 applied</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Article 6.7 applied"/>
    <xs:enumeration value="Flooding Extent"/>
    <xs:enumeration value="Other (e.g. conveyance routes)"/>
    <xs:enumeration value="Water depth/level"/>
    <xs:enumeration value="Water flow/velocity"/>
  </xs:restriction>
</xs:simpleType>

simpleType ElementsProbability_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Flooding Extent
enumeration Other (e.g. conveyance routes)
enumeration Water depth/level
enumeration Water flow/velocity
annotation
documentation

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)
source <xs:simpleType name="ElementsProbability_Enum">
  <xs:annotation>
    <xs:documentation>
- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Flooding Extent"/>
    <xs:enumeration value="Other (e.g. conveyance routes)"/>
    <xs:enumeration value="Water depth/level"/>
    <xs:enumeration value="Water flow/velocity"/>
  </xs:restriction>
</xs:simpleType>

simpleType FeatureUniqueCodeType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
simpleType FeatureUniqueCodeTypeEX
facets
Kind Value annotation
minLength 1
maxLength 40
whiteSpace collapse
annotation
documentation
Type for unique code within the Member State for the feature
source <xs:simpleType name="FeatureUniqueCodeType">
  <xs:annotation>
    <xs:documentation>Type for unique code within the Member State for the feature</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="40"/>
    <xs:whiteSpace value="collapse"/>
  </xs:restriction>
</xs:simpleType>

simpleType FeatureUniqueCodeTypeEX
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (FeatureUniqueCodeType, NumberExceptionType)
used by
element AreasOfFloodRisk/crossBorderAPSFRCode
annotation
documentation
Type for unique code within the Member State for the feature with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.
source <xs:simpleType name="FeatureUniqueCodeTypeEX">
  <xs:annotation>
    <xs:documentation>Type for unique code within the Member State for the feature with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="FeatureUniqueCodeType NumberExceptionType"/>
</xs:simpleType>

simpleType FeatureUniqueEUCodeType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements AreasOfFloodRisk/apsfrCode APSFR/euUOMCode AreasOfFloodRisk/hazardAreaCode
facets
Kind Value annotation
minLength 3
maxLength 42
annotation
documentation
Type for EU code, allows up to 42 characters (unique code within MS prefixed with country ISO 2 character code
source <xs:simpleType name="FeatureUniqueEUCodeType">
  <xs:annotation>
    <xs:documentation>Type for EU code, allows up to 42 characters (unique code within MS prefixed with country ISO 2 character code</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="42"/>
  </xs:restriction>
</xs:simpleType>

simpleType FloodSourcesMapped_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Map shows flood extents for a single source
enumeration Map shows flood extent for multiple (i.e. combined) sources by overlapping individual flood sources
enumeration Map shows flood extent for multiple sources resulting from combined modelling of flood sources (e.g. that occurred concurrently)
source <xs:simpleType name="FloodSourcesMapped_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Map shows flood extents for a single source"/>
    <xs:enumeration value="Map shows flood extent for multiple (i.e. combined) sources by overlapping individual flood sources"/>
    <xs:enumeration value="Map shows flood extent for multiple sources resulting from combined modelling of flood sources (e.g. that occurred concurrently)"/>
  </xs:restriction>
</xs:simpleType>

simpleType GeographicScale_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration A
enumeration B
source <xs:simpleType name="GeographicScale_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="A"/>
    <xs:enumeration value="B"/>
  </xs:restriction>
</xs:simpleType>

simpleType HistorialSignificantFloodsCriteria_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Flooded area
enumeration Number of residents in flooded area
enumeration Number of buildings affected
enumeration Affected area with commercial or industrial use
enumeration Level of damage caused (e.g. high, medium, low)
enumeration Required amount of money in compensation
enumeration Return period
enumeration Duration of occurrence
enumeration Whether a specific flood warning level was triggered
enumeration Specific weighting systems/benchmark defined to assess significance
enumeration Expert Judgement
enumeration Other
source <xs:simpleType name="HistorialSignificantFloodsCriteria_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Flooded area"/>
    <xs:enumeration value="Number of residents in flooded area"/>
    <xs:enumeration value="Number of buildings affected"/>
    <xs:enumeration value="Affected area with commercial or industrial use"/>
    <xs:enumeration value="Level of damage caused (e.g. high, medium, low)"/>
    <xs:enumeration value="Required amount of money in compensation"/>
    <xs:enumeration value="Return period"/>
    <xs:enumeration value="Duration of occurrence"/>
    <xs:enumeration value="Whether a specific flood warning level was triggered"/>
    <xs:enumeration value="Specific weighting systems/benchmark defined to assess significance"/>
    <xs:enumeration value="Expert Judgement"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType ImpactPublicParticipation_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Addition of new information
enumeration Adjustment to specific measures
enumeration Changes to selection of measures
enumeration Changes to the methodology used
enumeration Commitment to action in the next RBMP cycle
enumeration Commitment to further research
enumeration Other outcome
source <xs:simpleType name="ImpactPublicParticipation_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Addition of new information"/>
    <xs:enumeration value="Adjustment to specific measures"/>
    <xs:enumeration value="Changes to selection of measures"/>
    <xs:enumeration value="Changes to the methodology used"/>
    <xs:enumeration value="Commitment to action in the next RBMP cycle"/>
    <xs:enumeration value="Commitment to further research"/>
    <xs:enumeration value="Other outcome"/>
  </xs:restriction>
</xs:simpleType>

simpleType InternationalInformationExchange_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration International River Commission
enumeration Bilateral border water commissions
enumeration International coordination and working groups
enumeration Bilateral coordination and working groups
enumeration Regulations in place to enable exchange of information at international level
enumeration Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration Informal arrangements (groups discussions and exchange of information)
enumeration Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration No information exchange
enumeration Other
source <xs:simpleType name="InternationalInformationExchange_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="International River Commission"/>
    <xs:enumeration value="Bilateral border water commissions"/>
    <xs:enumeration value="International coordination and working groups"/>
    <xs:enumeration value="Bilateral coordination and working groups"/>
    <xs:enumeration value="Regulations in place to enable exchange of information at international level"/>
    <xs:enumeration value="Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)"/>
    <xs:enumeration value="Informal arrangements (groups discussions and exchange of information)"/>
    <xs:enumeration value="Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action"/>
    <xs:enumeration value="No information exchange"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType IssuesArticle4.2_d_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Topography
enumeration Position of watercourses and their general hydrological and geomorphological characteristics
enumeration Floodplains as natural retention areas
enumeration The effectiveness of existing man-made flood defence infrastructures
enumeration The position of populated areas
enumeration Areas of economic activity
enumeration Impacts of climate change on the occurrence of floods
enumeration Long-term developments; development of settlements (private, public and commercial)
enumeration Long-term developments; development of infrastructure (transport, water, energy and telecoms)
enumeration Long-term developments; rural land-use change
enumeration The specific needs of the of the MS do not require an assessment under Article 4.2(d)
source <xs:simpleType name="IssuesArticle4.2_d_Enum">
  <xs:annotation>
    <xs:documentation/>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Topography"/>
    <xs:enumeration value="Position of watercourses and their general hydrological and geomorphological characteristics"/>
    <xs:enumeration value="Floodplains as natural retention areas"/>
    <xs:enumeration value="The effectiveness of existing man-made flood defence infrastructures"/>
    <xs:enumeration value="The position of populated areas"/>
    <xs:enumeration value="Areas of economic activity"/>
    <xs:enumeration value="Impacts of climate change on the occurrence of floods"/>
    <xs:enumeration value="Long-term developments; development of settlements (private, public and commercial)"/>
    <xs:enumeration value="Long-term developments; development of infrastructure (transport, water, energy and telecoms)"/>
    <xs:enumeration value="Long-term developments; rural land-use change"/>
    <xs:enumeration value="The specific needs of the of the MS do not require an assessment under Article 4.2(d)"/>
  </xs:restriction>
</xs:simpleType>

simpleType LanguageCode_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
attribute APSFR/@language
facets
Kind Value annotation
enumeration bg
enumeration es
enumeration cs
enumeration da
enumeration de
enumeration et
enumeration el
enumeration en
enumeration fr
enumeration ga
enumeration hr
enumeration ic
enumeration it
enumeration lv
enumeration lt
enumeration hu
enumeration mt
enumeration nl
enumeration no
enumeration pl
enumeration pt
enumeration ro
enumeration sk
enumeration sl
enumeration sr
enumeration tr
enumeration fi
enumeration sv
annotation
documentation
Unique 2 character ISO Code for the EU Member States language (the codes used are the ISO codes 639-1 in force, alpha-2 code)

bg=Bulgarian
es=Spanish
cs=Czech
da=Danish
de=German
et=Estonian
el=Greek
en=English
fr=French
ga=Irish
hr=Croatian
ic=Icelandic
it=Italian
lv=Latvian
lt=Lithuanian
hu=Hungarian
mt=Maltese
nl=Dutch
no=Norwegian
pl=Polish
pt=Portuguese
ro=Romanian
sk=Slovak
sl=Slovenian
sr=Serbian
tr=Tyrkish
fi=Finnish
sv=Swedish
source <xs:simpleType name="LanguageCode_Enum">
  <xs:annotation>
    <xs:documentation>Unique 2 character ISO Code for the EU Member States language (the codes used are the ISO codes 639-1 in force, alpha-2 code)

bg=Bulgarian
es=Spanish
cs=Czech
da=Danish
de=German
et=Estonian
el=Greek
en=English
fr=French
ga=Irish
hr=Croatian
ic=Icelandic
it=Italian
lv=Latvian
lt=Lithuanian
hu=Hungarian
mt=Maltese
nl=Dutch
no=Norwegian
pl=Polish
pt=Portuguese
ro=Romanian
sk=Slovak
sl=Slovenian
sr=Serbian
tr=Tyrkish
fi=Finnish
sv=Swedish</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="bg"/>
    <xs:enumeration value="es"/>
    <xs:enumeration value="cs"/>
    <xs:enumeration value="da"/>
    <xs:enumeration value="de"/>
    <xs:enumeration value="et"/>
    <xs:enumeration value="el"/>
    <xs:enumeration value="en"/>
    <xs:enumeration value="fr"/>
    <xs:enumeration value="ga"/>
    <xs:enumeration value="hr"/>
    <xs:enumeration value="ic"/>
    <xs:enumeration value="it"/>
    <xs:enumeration value="lv"/>
    <xs:enumeration value="lt"/>
    <xs:enumeration value="hu"/>
    <xs:enumeration value="mt"/>
    <xs:enumeration value="nl"/>
    <xs:enumeration value="no"/>
    <xs:enumeration value="pl"/>
    <xs:enumeration value="pt"/>
    <xs:enumeration value="ro"/>
    <xs:enumeration value="sk"/>
    <xs:enumeration value="sl"/>
    <xs:enumeration value="sr"/>
    <xs:enumeration value="tr"/>
    <xs:enumeration value="fi"/>
    <xs:enumeration value="sv"/>
  </xs:restriction>
</xs:simpleType>

simpleType LocalNationalInternationalCoordination_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries
enumeration Coordination of FRMPs has taken place at the UoM/RBD level within the Member State
enumeration There was a need to refer to the solidarity principle
enumeration UoM/RBD not international
enumeration No Coordination has taken place
annotation
documentation
Table showing whether coordination at the appropriate level has taken place across MS
source <xs:simpleType name="LocalNationalInternationalCoordination_Enum">
  <xs:annotation>
    <xs:documentation>Table showing whether coordination at the appropriate level has taken place across MS</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries"/>
    <xs:enumeration value="Coordination of FRMPs has taken place at the UoM/RBD level within the Member State"/>
    <xs:enumeration value="There was a need to refer to the solidarity principle"/>
    <xs:enumeration value="UoM/RBD not international"/>
    <xs:enumeration value="No Coordination has taken place"/>
  </xs:restriction>
</xs:simpleType>

simpleType MeasureAspect_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Aggregated
enumeration Individual
source <xs:simpleType name="MeasureAspect_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Aggregated"/>
    <xs:enumeration value="Individual"/>
  </xs:restriction>
</xs:simpleType>

simpleType MeasureCodesProgress_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Not started
enumeration In preparation (e.g. planning)
enumeration On-going (one-off e.g. construction works)
enumeration Completed
source <xs:simpleType name="MeasureCodesProgress_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Not started"/>
    <xs:enumeration value="In preparation (e.g. planning)"/>
    <xs:enumeration value="On-going (one-off e.g. construction works)"/>
    <xs:enumeration value="Completed"/>
  </xs:restriction>
</xs:simpleType>

simpleType MeasureType_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration M11
enumeration M21
enumeration M22
enumeration M23
enumeration M24
enumeration M31
enumeration M32
enumeration M33
enumeration M34
enumeration M35
enumeration M41
enumeration M42
enumeration M43
enumeration M44
enumeration M51
enumeration M52
enumeration M53
enumeration M61
annotation
documentation

M11=No Action, No measure is proposed to reduce the flood risk in the APSFR  or other defined area ,
M21=Prevention, Avoidance, Measure to prevent the location of new or additional receptors in flood prone areas, such as land use planning policies or regulation
M22=Prevention, Removal or relocation, Measure to remove receptors from flood prone areas, or to relocate receptors to areas of lower probability of flooding and/or of lower hazard
M23=Prevention, Reduction, Measure to adapt receptors to reduce the adverse consequences in the event of a flood actions on buildings, public networks, etc...
M24=Prevention, Other prevention, Other measure to enhance flood risk prevention (may include, flood risk modelling and assessment, flood vulnerability assessment, maintenance programmes or policies etc...)
M31=Protection Natural flood management / runoff and catchment management, Measures to reduce the flow into natural or artificial drainage systems, such as overland flow interceptors and / or storage,  enhancement of infiltration, etc and including in-channel , floodplain works and the reforestation of banks, that restore natural systems to help slow flow and store water.
M32=Protection, Water flow regulation, Measures involving physical interventions to regulate flows, such as the construction, modification or removal of water retaining structures (e.g., dams or other on-line storage areas or development of existing flow regulation rules), and which have a significant impact on the hydrological regime.
M33=Protection, Channel, Coastal and Floodplain Works, Measures involving physical interventions in freshwater channels, mountain streams, estuaries, coastal waters and flood-prone areas of land, such as the construction, modification or removal of structures or the alteration of channels, sediment dynamics management, dykes, etc.
M34=Protection, Surface Water Management, Measures involving physical interventions to reduce surface water flooding, typically, but not exclusively, in an urban environment, such as enhancing artificial drainage capacities or though sustainable drainage systems (SuDS).
M35=Protection, Other Protection, Other measure to enhance protection against flooding, which may include flood defence asset maintenance programmes or policies
M41=Preparedness, Flood Forecasting and Warning, Measure to establish or enhance a flood forecasting or warning system
M42=Preparedness, Emergency Event Response Planning / Contingency planning, Measure to establish or enhance flood event institutional emergency response planning
M43=Preparedness, Public Awareness and Preparedness, Measure to establish or enhance the public awareness or preparedness for flood events
M44=Preparedness, Other preparedness, Other measure to establish or enhance preparedness for flood events to reduce adverse consequences
M51=Recovery and Review (Planning for the recovery and review phase is in principle part of preparedness), Individual and societal recovery, Clean-up and restoration activities (buildings, infrastructure, etc)
Health and mental health supporting actions, incl. managing stress
Disaster financial assistance (grants, tax), incl.  disaster legal assistance, disaster unemployment assistance
Temporary or permanent relocation
Other
M52=Recovery and Review, Environmental recovery, Clean-up and restoration activities (with several sub-topics as mould protection, well-water safety and securing hazardous materials containers)
M53=Recovery and Review, Other, Other recovery and review Lessons learnt from flood events
Insurance policies
M61=Other
source <xs:simpleType name="MeasureType_Enum">
  <xs:annotation>
    <xs:documentation>
M11=No Action, No measure is proposed to reduce the flood risk in the APSFR  or other defined area ,
M21=Prevention, Avoidance, Measure to prevent the location of new or additional receptors in flood prone areas, such as land use planning policies or regulation
M22=Prevention, Removal or relocation, Measure to remove receptors from flood prone areas, or to relocate receptors to areas of lower probability of flooding and/or of lower hazard
M23=Prevention, Reduction, Measure to adapt receptors to reduce the adverse consequences in the event of a flood actions on buildings, public networks, etc...
M24=Prevention, Other prevention, Other measure to enhance flood risk prevention (may include, flood risk modelling and assessment, flood vulnerability assessment, maintenance programmes or policies etc...)
M31=Protection Natural flood management / runoff and catchment management, Measures to reduce the flow into natural or artificial drainage systems, such as overland flow interceptors and / or storage,  enhancement of infiltration, etc and including in-channel , floodplain works and the reforestation of banks, that restore natural systems to help slow flow and store water.
M32=Protection, Water flow regulation, Measures involving physical interventions to regulate flows, such as the construction, modification or removal of water retaining structures (e.g., dams or other on-line storage areas or development of existing flow regulation rules), and which have a significant impact on the hydrological regime.
M33=Protection, Channel, Coastal and Floodplain Works, Measures involving physical interventions in freshwater channels, mountain streams, estuaries, coastal waters and flood-prone areas of land, such as the construction, modification or removal of structures or the alteration of channels, sediment dynamics management, dykes, etc.
M34=Protection, Surface Water Management, Measures involving physical interventions to reduce surface water flooding, typically, but not exclusively, in an urban environment, such as enhancing artificial drainage capacities or though sustainable drainage systems (SuDS).
M35=Protection, Other Protection, Other measure to enhance protection against flooding, which may include flood defence asset maintenance programmes or policies
M41=Preparedness, Flood Forecasting and Warning, Measure to establish or enhance a flood forecasting or warning system
M42=Preparedness, Emergency Event Response Planning / Contingency planning, Measure to establish or enhance flood event institutional emergency response planning
M43=Preparedness, Public Awareness and Preparedness, Measure to establish or enhance the public awareness or preparedness for flood events
M44=Preparedness, Other preparedness, Other measure to establish or enhance preparedness for flood events to reduce adverse consequences
M51=Recovery and Review (Planning for the recovery and review phase is in principle part of preparedness), Individual and societal recovery, Clean-up and restoration activities (buildings, infrastructure, etc)
Health and mental health supporting actions, incl. managing stress
Disaster financial assistance (grants, tax), incl.  disaster legal assistance, disaster unemployment assistance
Temporary or permanent relocation
Other
M52=Recovery and Review, Environmental recovery, Clean-up and restoration activities (with several sub-topics as mould protection, well-water safety and securing hazardous materials containers)
M53=Recovery and Review, Other, Other recovery and review Lessons learnt from flood events
Insurance policies
M61=Other
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="M11"/>
    <xs:enumeration value="M21"/>
    <xs:enumeration value="M22"/>
    <xs:enumeration value="M23"/>
    <xs:enumeration value="M24"/>
    <xs:enumeration value="M31"/>
    <xs:enumeration value="M32"/>
    <xs:enumeration value="M33"/>
    <xs:enumeration value="M34"/>
    <xs:enumeration value="M35"/>
    <xs:enumeration value="M41"/>
    <xs:enumeration value="M42"/>
    <xs:enumeration value="M43"/>
    <xs:enumeration value="M44"/>
    <xs:enumeration value="M51"/>
    <xs:enumeration value="M52"/>
    <xs:enumeration value="M53"/>
    <xs:enumeration value="M61"/>
  </xs:restriction>
</xs:simpleType>

simpleType MechanismofFlooding_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element TypeOfFloods/mechanismOfFlooding
facets
Kind Value annotation
enumeration A21 - Natural Exceedance
enumeration A22 - Defence Exceedance
enumeration A23 - Defence or Infrastructural Failure
enumeration A24 - Blockage / Restriction
enumeration A25 - Other
enumeration A26 - No data available on the mechanism of flooding
enumeration A27 - Mechanism of flooding uncertain
annotation
documentation
Define relevant mechanism of flooding. The list are in line with table A2 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.

A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.

A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.

A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.

A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.

A26= No data available on the mechanism of flooding
A27=Mechanism of flooding uncertain
source <xs:simpleType name="MechanismofFlooding_Enum">
  <xs:annotation>
    <xs:documentation>Define relevant mechanism of flooding. The list are in line with table A2 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.

A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.

A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.

A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.

A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.

A26= No data available on the mechanism of flooding
A27=Mechanism of flooding uncertain</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="A21 - Natural Exceedance"/>
    <xs:enumeration value="A22 - Defence Exceedance"/>
    <xs:enumeration value="A23 - Defence or Infrastructural Failure"/>
    <xs:enumeration value="A24 - Blockage / Restriction"/>
    <xs:enumeration value="A25 - Other"/>
    <xs:enumeration value="A26 - No data available on the mechanism of flooding"/>
    <xs:enumeration value="A27 - Mechanism of flooding uncertain"/>
  </xs:restriction>
</xs:simpleType>

simpleType MechanismsOfInternationalCoordination_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element MechanismsOfInternationalCoordination/mechanismsUsed
facets
Kind Value annotation
enumeration Bilateral border water commissions
enumeration Informal arrangements (groups discussions and exchange of information)
enumeration International coordination and working groups
enumeration International River Commission
enumeration Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration Regulations in place to enable exchange of information at international level
enumeration Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration Other
source <xs:simpleType name="MechanismsOfInternationalCoordination_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Bilateral border water commissions"/>
    <xs:enumeration value="Informal arrangements (groups discussions and exchange of information)"/>
    <xs:enumeration value="International coordination and working groups"/>
    <xs:enumeration value="International River Commission"/>
    <xs:enumeration value="Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action"/>
    <xs:enumeration value="Regulations in place to enable exchange of information at international level"/>
    <xs:enumeration value="Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType NumberDecimalBaseType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:decimal
used by
simpleType NumberDecimalType
facets
Kind Value annotation
minInclusive 0
source <xs:simpleType name="NumberDecimalBaseType">
  <xs:restriction base="xs:decimal">
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>

simpleType NumberDecimalType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (NumberDecimalBaseType, NumberExceptionType)
annotation
documentation
Decimal with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.
source <xs:simpleType name="NumberDecimalType">
  <xs:annotation>
    <xs:documentation>Decimal with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="NumberDecimalBaseType NumberExceptionType"/>
</xs:simpleType>

simpleType NumberExceptionType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
simpleTypes DateTypeYearType FeatureUniqueCodeTypeEX NumberDecimalType NumberNonNegativeIntegerType NumberPercentageType
facets
Kind Value annotation
minLength 3
maxLength 42
annotation
documentation
Numerical codes for data exceptions: -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable
source <xs:simpleType name="NumberExceptionType">
  <xs:annotation>
    <xs:documentation>Numerical codes for data exceptions: -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="42"/>
  </xs:restriction>
</xs:simpleType>

simpleType NumberNonNegativeIntegerType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (xs:nonNegativeInteger, NumberExceptionType)
annotation
documentation
Non-negative integer with option for exceptions
source <xs:simpleType name="NumberNonNegativeIntegerType">
  <xs:annotation>
    <xs:documentation>Non-negative integer with option for exceptions</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="xs:nonNegativeInteger NumberExceptionType"/>
</xs:simpleType>

simpleType NumberPercentageBaseType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:decimal
used by
simpleType NumberPercentageType
facets
Kind Value annotation
minInclusive 0
maxInclusive 100
fractionDigits 3
annotation
documentation
Percentage with 3 decimal places
source <xs:simpleType name="NumberPercentageBaseType">
  <xs:annotation>
    <xs:documentation>Percentage with 3 decimal places</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="3"/>
    <xs:maxInclusive value="100"/>
    <xs:minInclusive value="0"/>
  </xs:restriction>
</xs:simpleType>

simpleType NumberPercentageType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (NumberPercentageBaseType, NumberExceptionType)
annotation
documentation
Percentage with option for exceptions
source <xs:simpleType name="NumberPercentageType">
  <xs:annotation>
    <xs:documentation>Percentage with option for exceptions</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="NumberPercentageBaseType NumberExceptionType"/>
</xs:simpleType>

simpleType PotentialAdverseConsequencesCriteria_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Potential number of permanent residents affected by the flood extent in flood plains
enumeration Potential value/area of property affected (residential and non-residential)
enumeration Potential number of buildings affected (residential and non-residential)
enumeration Potential adverse consequences to infrastructural assets
enumeration Damage potential exceeds specific threshold (area)
enumeration Potential adverse consequences on water bodies
enumeration Potential sources of pollution triggered from industrial installations
enumeration Potential adverse consequences to rural land use
enumeration Potential adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
enumeration Potential adverse impacts on cultural assets and cultural landscapes
enumeration Recurrence periods
enumeration Recurrence periods in combination with land use
enumeration Water level or depth
enumeration Water velocity
enumeration Whether floods have occurred in the past
enumeration Specific weighting systems defined to assess significance
enumeration Expert Judgement
enumeration Other
enumeration The specific needs of the of the MS do not require an assessment under Article 4.2(d)
source <xs:simpleType name="PotentialAdverseConsequencesCriteria_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Potential number of permanent residents affected by the flood extent in flood plains"/>
    <xs:enumeration value="Potential value/area of property affected (residential and non-residential)"/>
    <xs:enumeration value="Potential number of buildings affected (residential and non-residential)"/>
    <xs:enumeration value="Potential adverse consequences to infrastructural assets"/>
    <xs:enumeration value="Damage potential exceeds specific threshold (area)"/>
    <xs:enumeration value="Potential adverse consequences on water bodies"/>
    <xs:enumeration value="Potential sources of pollution triggered from industrial installations"/>
    <xs:enumeration value="Potential adverse consequences to rural land use"/>
    <xs:enumeration value="Potential adverse consequences to economic activity (e.g. manufacturing, service and construction industries)"/>
    <xs:enumeration value="Potential adverse impacts on cultural assets and cultural landscapes"/>
    <xs:enumeration value="Recurrence periods"/>
    <xs:enumeration value="Recurrence periods in combination with land use"/>
    <xs:enumeration value="Water level or depth"/>
    <xs:enumeration value="Water velocity"/>
    <xs:enumeration value="Whether floods have occurred in the past"/>
    <xs:enumeration value="Specific weighting systems defined to assess significance"/>
    <xs:enumeration value="Expert Judgement"/>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="The specific needs of the of the MS do not require an assessment under Article 4.2(d)"/>
  </xs:restriction>
</xs:simpleType>

simpleType PriorInformationExchange_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration International River Commission
enumeration Bilateral border water commissions
enumeration International coordination and working groups
enumeration Bilateral coordination and working groups
enumeration Regulations in place to enable exchange of information at international level
enumeration Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration Informal arrangements (groups discussions and exchange of information)
enumeration Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration Other
source <xs:simpleType name="PriorInformationExchange_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="International River Commission"/>
    <xs:enumeration value="Bilateral border water commissions"/>
    <xs:enumeration value="International coordination and working groups"/>
    <xs:enumeration value="Bilateral coordination and working groups"/>
    <xs:enumeration value="Regulations in place to enable exchange of information at international level"/>
    <xs:enumeration value="Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)"/>
    <xs:enumeration value="Informal arrangements (groups discussions and exchange of information)"/>
    <xs:enumeration value="Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType PriorityCategories_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Very high
enumeration High
enumeration Critical
enumeration Moderate
enumeration Low
source <xs:simpleType name="PriorityCategories_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Very high"/>
    <xs:enumeration value="High"/>
    <xs:enumeration value="Critical"/>
    <xs:enumeration value="Moderate"/>
    <xs:enumeration value="Low"/>
  </xs:restriction>
</xs:simpleType>

simpleType ProtectedAreaType_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Bathing
enumeration Birds
enumeration Habitats
enumeration Nitrates
enumeration UWWT
enumeration Article 7 Abstraction for drinking water
enumeration WFD_WaterBodies
enumeration EuropeanOther
enumeration National
enumeration Local
annotation
documentation
Defines all Protected Area types for use in the Register of Protected Areas (Article 6)
source <xs:simpleType name="ProtectedAreaType_Enum">
  <xs:annotation>
    <xs:documentation>Defines all Protected Area types for use in the Register of Protected Areas (Article 6)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Bathing"/>
    <xs:enumeration value="Birds"/>
    <xs:enumeration value="Habitats"/>
    <xs:enumeration value="Nitrates"/>
    <xs:enumeration value="UWWT"/>
    <xs:enumeration value="Article 7 Abstraction for drinking water"/>
    <xs:enumeration value="WFD_WaterBodies"/>
    <xs:enumeration value="EuropeanOther"/>
    <xs:enumeration value="National"/>
    <xs:enumeration value="Local"/>
  </xs:restriction>
</xs:simpleType>

simpleType PublicConsultationsMechanisms_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Media (papers, TV, radio)
enumeration Internet
enumeration Social networking sites
enumeration Printed material
enumeration Direct mailing
enumeration Invitations to stakeholders
enumeration Local Authorities
enumeration Meetings with local population
enumeration Written consultation
enumeration Other
annotation
documentation
Table summarising the key mechanisms used for consultation across MS
source <xs:simpleType name="PublicConsultationsMechanisms_Enum">
  <xs:annotation>
    <xs:documentation>Table summarising the key mechanisms used for consultation across MS</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Media (papers, TV, radio)"/>
    <xs:enumeration value="Internet"/>
    <xs:enumeration value="Social networking sites"/>
    <xs:enumeration value="Printed material"/>
    <xs:enumeration value="Direct mailing"/>
    <xs:enumeration value="Invitations to stakeholders"/>
    <xs:enumeration value="Local Authorities"/>
    <xs:enumeration value="Meetings with local population"/>
    <xs:enumeration value="Written consultation"/>
    <xs:enumeration value="Other"/>
  </xs:restriction>
</xs:simpleType>

simpleType RelevantSources_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Fluvial
enumeration Pluvial
enumeration Groundwater
enumeration Seawater
enumeration Artificial Water Bearing Infrastructure
enumeration Other Source
source <xs:simpleType name="RelevantSources_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Fluvial"/>
    <xs:enumeration value="Pluvial"/>
    <xs:enumeration value="Groundwater"/>
    <xs:enumeration value="Seawater"/>
    <xs:enumeration value="Artificial Water Bearing Infrastructure"/>
    <xs:enumeration value="Other Source"/>
  </xs:restriction>
</xs:simpleType>

simpleType ReturnperiodandprobabilitiesApproach_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration (Statistical analysis on) historical countsdata
enumeration (Statistical analysis on) hydraulic modelling
enumeration (Statistical analysis on) hydrological modelling
enumeration (Statistical analysis on) observed/ gauging data
enumeration (Statistical analysis on) rainfall data
enumeration Expert judgement
enumeration Other (e.g. uncertain)
annotation
documentation
If ‘no information’ is selected justification must be provided
source <xs:simpleType name="ReturnperiodandprobabilitiesApproach_Enum">
  <xs:annotation>
    <xs:documentation>If ‘no information’ is selected justification must be provided</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="(Statistical analysis on) historical countsdata"/>
    <xs:enumeration value="(Statistical analysis on) hydraulic modelling"/>
    <xs:enumeration value="(Statistical analysis on) hydrological modelling"/>
    <xs:enumeration value="(Statistical analysis on) observed/ gauging data"/>
    <xs:enumeration value="(Statistical analysis on) rainfall data"/>
    <xs:enumeration value="Expert judgement"/>
    <xs:enumeration value="Other (e.g.  uncertain)"/>
  </xs:restriction>
</xs:simpleType>

simpleType RoleCode_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Coordination
enumeration Other responsibilities to be defined.
enumeration Preparation and Production and implementation of the different stages of the Floods Directive
enumeration Reporting: Public information and consultation; Reporting to Commission and
enumeration Other - Any other roles not covered above.
documentation
Other - Any other roles not covered above.
source <xs:simpleType name="RoleCode_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Coordination"/>
    <xs:enumeration value="Other responsibilities to be defined."/>
    <xs:enumeration value="Preparation and Production and implementation of the different stages of the Floods Directive"/>
    <xs:enumeration value="Reporting: Public information and consultation; Reporting to Commission and"/>
    <xs:enumeration value="Other - Any other roles not covered above.">
      <xs:annotation>
        <xs:documentation>Other - Any other roles not covered above.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

simpleType SourceofFlooding_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element TypeOfFloods/sourceOfFlooding
facets
Kind Value annotation
enumeration A11 - Fluvial
enumeration A12 - Pluvial
enumeration A13 - Groundwater
enumeration A14 - Sea Water
enumeration A15 - Artificial Water-Bearing Infrastructure
enumeration A16 - Other: Flooding of land by water due to other sources, can include other tsunamis.
enumeration A17 - No data available on the source of flooding
enumeration A18 - Source of flooding uncertain
annotation
documentation
Define relevant source of flooding. The list are in line with table A1 from list of flood types from February 2011 (version 6).

One or more options can be selected.

A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.

A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.

A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.

A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.

A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).

A16=Other: Flooding of land by water due to other sources, can include other tsunamis.


- A17=No data available on the source of flooding
- A18=Source of flooding uncertain
source <xs:simpleType name="SourceofFlooding_Enum">
  <xs:annotation>
    <xs:documentation>Define relevant source of flooding. The list are in line with table A1 from list of flood types from February 2011 (version 6).

One or more options can be selected.

A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.

A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.

A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.

A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.

A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).

A16=Other: Flooding of land by water due to other sources, can include other tsunamis.


- A17=No data available on the source of flooding
- A18=Source of flooding uncertain</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="A11 - Fluvial"/>
    <xs:enumeration value="A12 - Pluvial"/>
    <xs:enumeration value="A13 - Groundwater"/>
    <xs:enumeration value="A14 - Sea Water"/>
    <xs:enumeration value="A15 - Artificial Water-Bearing Infrastructure"/>
    <xs:enumeration value="A16 - Other: Flooding of land by water due to other sources, can include other tsunamis."/>
    <xs:enumeration value="A17 - No data available on the source of flooding"/>
    <xs:enumeration value="A18 - Source of flooding uncertain"/>
  </xs:restriction>
</xs:simpleType>

simpleType String1000Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements TypeOfFloods/characteristicsUncertainDescription CriteriaForDeterminationSignificantFloodRisk/expertJudgementDescription AreasOfFloodRisk/hazardAreaDescription TypeOfFloods/mechanismUncertainDescription TypeOfFloods/otherCharacteristicsDescription CriteriaForInclusion/otherCriteriaDescription CriteriaForDeterminationSignificantFloodRisk/otherCriteriaDescription TypeOfFloods/otherMechanismDescription MechanismsOfInternationalCoordination/otherMechanismsOfInternationalCoordination TypeOfFloods/otherSourceDescription TypeOfFloods/sourceUncertainDescription
facets
Kind Value annotation
minLength 10
maxLength 1000
annotation
documentation
String of up to 1000 characters
source <xs:simpleType name="String1000Type">
  <xs:annotation>
    <xs:documentation>String of up to 1000 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="10"/>
    <xs:maxLength value="1000"/>
  </xs:restriction>
</xs:simpleType>

simpleType String100Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
minLength 1
maxLength 100
annotation
documentation
String of up to 100 characters
source <xs:simpleType name="String100Type">
  <xs:annotation>
    <xs:documentation>String of up to 100 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>

simpleType String2000Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element APSFR/metaData
facets
Kind Value annotation
minLength 1
maxLength 2000
annotation
documentation
Type to enter string of 1 to 2000 characters
source <xs:simpleType name="String2000Type">
  <xs:annotation>
    <xs:documentation>Type to enter string of 1 to 2000 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="2000"/>
  </xs:restriction>
</xs:simpleType>

simpleType String250Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements ReferenceType/DocumentName AreasOfFloodRisk/nameOfAPSFR Environment/otherConsequenceDescription HumanHealthSocial/otherConsequenceDescription CulturalHeritage/otherConsequenceDescription EconomicActivity/otherConsequenceDescription ReferenceType/Subject
facets
Kind Value annotation
minLength 1
maxLength 250
annotation
documentation
String of up to 250 characters
source <xs:simpleType name="String250Type">
  <xs:annotation>
    <xs:documentation>String of up to 250 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="250"/>
  </xs:restriction>
</xs:simpleType>

simpleType String5000Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
minLength 1
maxLength 5000
annotation
documentation
Type to enter string of 1 to 5000 characters
source <xs:simpleType name="String5000Type">
  <xs:annotation>
    <xs:documentation>Type to enter string of 1 to 5000 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="5000"/>
  </xs:restriction>
</xs:simpleType>

simpleType String50Type
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements ReferenceType/Bookmark ReferenceType/FileName
facets
Kind Value annotation
minLength 1
maxLength 50
annotation
documentation
String of up to 50 characters
source <xs:simpleType name="String50Type">
  <xs:annotation>
    <xs:documentation>String of up to 50 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>

simpleType TotalDamageClass_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration H - High
enumeration I - Insignificnt
enumeration L - Low
enumeration M - Medium
enumeration NA - Not Applicable
enumeration U - Unknown
enumeration VH - Very high
annotation
documentation
For Insignificnt, Low, Medium, High, Very high, Not Applicable, Unknown:
U=Unknown
NA=Not Applicable
I=Insignificnt;
L=Low;
    M=Medium
    H=High
    VH=Very high
source <xs:simpleType name="TotalDamageClass_Enum">
  <xs:annotation>
    <xs:documentation>For Insignificnt, Low, Medium, High, Very high, Not Applicable, Unknown:
U=Unknown
NA=Not Applicable
I=Insignificnt;
L=Low;
    M=Medium
    H=High
    VH=Very high
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="H - High"/>
    <xs:enumeration value="I - Insignificnt"/>
    <xs:enumeration value="L - Low"/>
    <xs:enumeration value="M - Medium"/>
    <xs:enumeration value="NA - Not Applicable"/>
    <xs:enumeration value="U - Unknown"/>
    <xs:enumeration value="VH - Very high"/>
  </xs:restriction>
</xs:simpleType>

simpleType TypeCulturalHeritage_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element CulturalHeritage/typeCulturalHeritage
facets
Kind Value annotation
enumeration B31 - Cultural Assets
enumeration B32 - Landscape
enumeration B33 - Other
enumeration B34 - Not applicable
annotation
documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.

B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of  traditional landscapes, anchor locations or zones.

B33=Other

B34=Not applicable
source <xs:simpleType name="TypeCulturalHeritage_Enum">
  <xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.

B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of  traditional landscapes, anchor locations or zones.

B33=Other

B34=Not applicable

</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="B31 - Cultural Assets"/>
    <xs:enumeration value="B32 - Landscape"/>
    <xs:enumeration value="B33 - Other"/>
    <xs:enumeration value="B34 - Not applicable"/>
  </xs:restriction>
</xs:simpleType>

simpleType TypeEconomicActivity_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element EconomicActivity/typeEconomicActivity
facets
Kind Value annotation
enumeration B41 - Property
enumeration B42 - Infrastructure
enumeration B43 - Rural Land Use
enumeration B44 - Economic Activity
enumeration B45 - Other
enumeration B46 - Not applicable
annotation
documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B41=Property: Adverse consequences to property, which could include homes.

B42=Infrastructure: Adverse consequences to infrastructural assets such as utilities, power generation, transport, storage and communication.

B43=Rural Land Use: Adverse consequences to uses of the land, such as agricultural activity (livestock, arable and horticulture), forestry, mineral extraction and fishing.

B44=Economic Activity: Adverse consequences to sectors of economic activity, such as manufacturing, construction, retail, services and other sources of employment.

B45=Other

B46=Not applicable
source <xs:simpleType name="TypeEconomicActivity_Enum">
  <xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B41=Property: Adverse consequences to property, which could include homes.

B42=Infrastructure: Adverse consequences to infrastructural assets such as utilities, power generation, transport, storage and communication.

B43=Rural Land Use: Adverse consequences to uses of the land, such as agricultural activity (livestock, arable and horticulture), forestry, mineral extraction and fishing.

B44=Economic Activity: Adverse consequences to sectors of economic activity, such as manufacturing, construction, retail, services and other sources of employment.

B45=Other

B46=Not applicable
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="B41 - Property"/>
    <xs:enumeration value="B42 - Infrastructure"/>
    <xs:enumeration value="B43 - Rural Land Use"/>
    <xs:enumeration value="B44 - Economic Activity"/>
    <xs:enumeration value="B45 - Other"/>
    <xs:enumeration value="B46 - Not applicable"/>
  </xs:restriction>
</xs:simpleType>

simpleType TypeEnvironment_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element Environment/typeEnvironment
facets
Kind Value annotation
enumeration B21 - Waterbody Status
enumeration B22 - Protected Areas
enumeration B23 - Pollution Sources
enumeration B24 - Other potential adverse environmental impacts
enumeration B25 - Not applicable
annotation
documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.


B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.

B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.

B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.

B24=Other potential adverse environmental impacts, such as those on soil, biodiversity, flora and fauna, etc.

B25=Not applicable

.
source <xs:simpleType name="TypeEnvironment_Enum">
  <xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.


B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.

B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.

B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.

B24=Other potential adverse environmental impacts, such as those on soil, biodiversity, flora and fauna, etc.

B25=Not applicable

.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="B21 - Waterbody Status"/>
    <xs:enumeration value="B22 - Protected Areas"/>
    <xs:enumeration value="B23 - Pollution Sources"/>
    <xs:enumeration value="B24 - Other potential adverse environmental impacts"/>
    <xs:enumeration value="B25 - Not applicable"/>
  </xs:restriction>
</xs:simpleType>

simpleType TypeHumanHealth_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element HumanHealthSocial/typeHumanHealth
facets
Kind Value annotation
enumeration B11 - Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.
enumeration B12 - Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).
enumeration B13 - Other
enumeration B14 - Not applicaple
enumeration B10
annotation
documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.

B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

B13=Other

B14=Not applicaple
source <xs:simpleType name="TypeHumanHealth_Enum">
  <xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.

B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

B13=Other

B14=Not applicaple

</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="B11 - Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities."/>
    <xs:enumeration value="B12 - Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals)."/>
    <xs:enumeration value="B13 - Other"/>
    <xs:enumeration value="B14 - Not applicaple"/>
    <xs:enumeration value="B10"/>
  </xs:restriction>
</xs:simpleType>

simpleType TypeIEDInstallation_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration 1 - Energy industries
enumeration 1.1 - Combustion of fuels in installations with a total rated thermal input of 50 MW or more
enumeration 1.2 - Refining of mineral oil and gas
enumeration 1.3 - Production of coke
enumeration 1.4.a - Gasification or liquefaction of coal
enumeration 1.4.b - Gasification or liquefaction of other fuels in installations with a total rated thermal input of 20 MW or more
enumeration 2 - Production and processing of metals
enumeration 2.1 - Metal ore (including sulphide ore) roasting or sintering
enumeration 2.2 - Production of pig iron or steel (primary or secondary fusion) including continuous casting, with a capacity exceeding 2,5 tonnes per hour
enumeration 2.3.a - Processing of ferrous metals: operation of hot-rolling mills with a capacity exceeding 20 tonnes of crude steel per hour
enumeration 2.3.b - Processing of ferrous metals: operation of smitheries with hammers the energy of which exceeds 50 kilojoule per hammer
enumeration 2.3.c - Processing of ferrous metals application of protective fused metal coats with an input exceeding 2 tonnes of crude steel per hour
enumeration 2.4 - Operation of ferrous metal foundries with a production capacity exceeding 20 tonnes per day
enumeration 2.5.a - Processing of non-ferrous metals: production of non-ferrous crude metals from ore, concentrates or secondary raw materials by metallurgical, chemical or electrolytic processes
enumeration 2.5.b - Processing of non-ferrous metals: melting, including the alloyage, of non-ferrous metals, including recovered products and operation of non- ferrous metal foundries, with a melting capacity exceeding 4 tonnes per day for lead and cadmium or 20 ton
enumeration 2.6 - Surface treatment of metals or plastic materials using an electrolytic or chemical process where the volume of the treatment vats exceeds 30 m3
enumeration 3 - Mineral industry
enumeration 3.1.a - Production of cement clinker in rotary kilns with a production capacity exceeding 500 tonnes per day or in other kilns with a production capacity exceeding 50 tonnes per day
enumeration 3.1.b - Production of lime in kilns with a production capacity exceeding 50 tonnes per day
enumeration 3.1.c - Production of magnesium oxide in kilns with a production capacity exceeding 50 tonnes per day
enumeration 3.2 - Production of asbestos or the manufacture of asbestos-based products
enumeration 3.3 - Manufacture of glass including glass fibre with a melting capacity exceeding 20 tonnes per day
enumeration 3.4 - Melting mineral substances including the production of mineral fibres with a melting capacity exceeding 20 tonnes per day
enumeration 3.5 - Manufacture of ceramic products by firing, in particular roofing tiles, bricks, refractory bricks, tiles, stoneware or porcelain with a production capacity exceeding 75 tonnes per day and/or with a kiln capacity exceeding 4 m3 and with a setting den
enumeration 4 - Chemical industry
enumeration 4.1.a - simple hydrocarbons (linear or cyclic, saturated or unsaturated, aliphatic or aromatic)
enumeration 4.1.b - oxygen-containing hydrocarbons such as alcohols, aldehydes, ketones, carboxylic acids, esters and mixtures of esters, acetates, ethers, peroxides and epoxy resins
enumeration 4.1.c - sulphurous hydrocarbons
enumeration 4.1.d - nitrogenous hydrocarbons such as amines, amides, nitrous compounds, nitro compounds or nitrate compounds, nitriles, cyanates, isocyanates
enumeration 4.1.e - phosphorus-containing hydrocarbons
enumeration 4.1.f - halogenic hydrocarbons
enumeration 4.1.g - organometallic compounds
enumeration 4.1.h - plastic materials (polymers, synthetic fibres and cellulose-based fibres)
enumeration 4.1.i - synthetic rubbers
enumeration 4.1.j - dyes and pigments
enumeration 4.1.k - surface-active agents and surfactants
enumeration 4.2.a - gases, such as ammonia, chlorine or hydrogen chloride, fluorine or hydrogen fluoride, carbon oxides, sulphur compounds, nitrogen oxides, hydrogen, sulphur dioxide, carbonyl chloride
enumeration 4.2.b - acids, such as chromic acid, hydrofluoric acid, phosphoric acid, nitric acid, hydrochloric acid, sulphuric acid, oleum, sulphurous acids
enumeration 4.2.c - bases, such as ammonium hydroxide, potassium hydroxide, sodium hydroxide
enumeration 4.2.d - salts, such as ammonium chloride, potassium chlorate, potassium carbonate, sodium carbonate, perborate, silver nitrate
enumeration 4.2.e - non-metals, metal oxides or other inorganic compounds such as calcium carbide, silicon, silicon carbide
enumeration 4.3 - Production of phosphorous-, nitrogen- or potassium-based fertilisers (simple or compound fertilisers)
enumeration 4.4 - Production of plant protection products or of biocides
enumeration 4.5 - Production of pharmaceutical products including intermediates
enumeration 4.6 - Production of explosives
enumeration 5 - Waste management
enumeration 5.1.a - biological treatment
enumeration 5.1.b - physico-chemical treatment
enumeration 5.1.c - blending or mixing prior to submission to any of the other activities listed in points 5.1 and 5.2
enumeration 5.1.d - repackaging prior to submission to any of the other activities listed in points 5.1 and 5.2
enumeration 5.1.e - solvent reclamation/regeneration
enumeration 5.1.f - recycling/reclamation of inorganic materials other than metals or metal compounds
enumeration 5.1.g - regeneration of acids or bases
enumeration 5.1.h - recovery of components used for pollution abatement
enumeration 5.1.i - recovery of components from catalysts
enumeration 5.1.j - oil re-refining or other reuses of oil
enumeration 5.1.k - surface impoundment
enumeration 5.2.a - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for non-hazardous waste with a capacity exceeding 3 tonnes per hour;
enumeration 5.2.b - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for hazardous waste with a capacity exceeding 10 tonnes per day
enumeration 5.3.a - Disposal of non-hazardous waste with a capacity exceeding 50 tonnes per day involving one or more of the following activities, and excluding activities covered by Council Directive 91/271/EEC of 21 May 1991 concerning urban waste-water treatment (
enumeration 5.3.a.i - biological treatment
enumeration 5.3.a.ii - physico-chemical treatment
enumeration 5.3.a.iii - pre-treatment of waste for incineration or co-incineration
enumeration 5.3.a.iv - treatment of slags and ashes
enumeration 5.3.a.v - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components
enumeration 5.3.b - Recovery, or a mix of recovery and disposal, of non-hazardous waste with a capacity exceeding 75 tonnes per day involving one or more of the following activities, and excluding activities covered by Directive 91/271/EEC:
enumeration 5.3.b.i - biological treatment
enumeration 5.3.b.ii - pre-treatment of waste for incineration or co-incineration
enumeration 5.3.b.iii - treatment of slags and ashes
enumeration 5.3.b.iv - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components.
enumeration 5.4 - Landfills, as defined in Article 2(g) of Council Directive 1999/31/EC of 26 April 1999 on the landfill of waste (OJ L 182, 16.7.1999, p. 1.), receiving more than 10 tonnes of waste per day or with a total capacity exceeding 25 000 tonnes, excluding
enumeration 5.5 - Temporary storage of hazardous waste not covered under point 5.4 pending any of the activities listed in points 5.1, 5.2, 5.4 and 5.6 with a total capacity exceeding 50 tonnes, excluding temporary storage, pending collection, on the site where the w
enumeration 5.6 - Underground storage of hazardous waste with a total capacity exceeding 50 tonnes
enumeration 6 - Other activities
enumeration 6.1.a - pulp from timber or other fibrous materials
enumeration 6.1.b - paper or card board with a production capacity exceeding 20 tonnes per day
enumeration 6.1.c - one or more of the following wood-based panels: oriented strand board, particleboard or fibreboard with a production capacity exceeding 600 m3 per day
enumeration 6.2 - Pre-treatment (operations such as washing, bleaching, mercerisation) or dyeing of textile fibres or textiles where the treatment capacity exceeds 10 tonnes per day
enumeration 6.3 - Tanning of hides and skins where the treatment capacity exceeds 12 tonnes of finished products per day
enumeration 6.4b - Treatment and processing, other than exclusively packaging, of the following raw materials, whether previously processed or unprocessed, intended for the production of food or feed from:
enumeration 6.4.a - Operating slaughterhouses with a carcass production capacity greater than 50 tonnes per day
enumeration 6.4.b.i - only animal raw materials (other than exclusively milk) with a finished product production capacity greater than 75 tonnes per day;
enumeration 6.4.b.ii - only vegetable raw materials with a finished product production capacity greater than 300 tonnes per day or 600 tonnes per day where the installation operates for a period of no more than 90 consecutive days in any year;
enumeration 6.4.b.iii - animal and vegetable raw materials, both in combined and separate products, with a finished product production capacity in tonnes per day greater than: - 75 if A is equal to 10 or more; or, - [300- (22,5 × A)] in any other case, where ‘A’ is t
enumeration 6.4.c - Treatment and processing of milk only, the quantity of milk received being greater than 200 tonnes per day (average value on an annual basis).
enumeration 6.5 - Disposal or recycling of animal carcases or animal waste with a treatment capacity exceeding 10 tonnes per day
enumeration 6.6.a - Intensive rearing of poultry or pigs with more than 40 000 places for poultry;
enumeration 6.6.b - Intensive rearing of poultry or pigs with more than 2 000 places for production pigs (over 30 kg), or
enumeration 6.6.c - Intensive rearing of poultry or pigs with more than 750 places for sows
enumeration 6.7 - Surface treatment of substances, objects or products using organic solvents, in particular for dressing, printing, coating, degreasing, waterproofing, sizing, painting, cleaning or impregnating, with an organic solvent consumption capacity of more t
enumeration 6.8 - Production of carbon (hard-burnt coal) or electrographite by means of incineration or graphitisation
enumeration 6.9 - Capture of CO2 streams from installations covered by this Directive for the purposes of geological storage pursuant to Directive 2009/31/EC
enumeration 6.10 - Preservation of wood and wood products with chemicals with a production capacity exceeding 75 m3 per day other than exclusively treating against sapstain
enumeration 6.11 - Independently operated treatment of waste water not covered by Directive 91/271/EEC and discharged by an installation covered by Chapter II
annotation
documentation
Optional. Identify type (more than one can be selected) List of activities from Annex I, DIRECTIVE 2010/75/EC of 24 November 2010 (Date of publishing: 17.12.2010):

- 1 - Energy industries
- 1.1 - Combustion of fuels in installations with a total rated thermal input of 50 MW or more
- 1.2 - Refining of mineral oil and gas
- 1.3 - Production of coke
- 1.4.a - Gasification or liquefaction of coal
- 1.4.b - Gasification or liquefaction of other fuels in installations with a total rated thermal input of 20 MW or more
- 2 - Production and processing of metals
- 2.1 - Metal ore (including sulphide ore) roasting or sintering
- 2.2 - Production of pig iron or steel (primary or secondary fusion) including continuous casting, with a capacity exceeding 2,5 tonnes per hour
- 2.3.a - Processing of ferrous metals: operation of hot-rolling mills with a capacity exceeding 20 tonnes of crude steel per hour
- 2.3.b - Processing of ferrous metals: operation of smitheries with hammers the energy of which exceeds 50 kilojoule per hammer, where the calorific power used exceeds 20 MW
- 2.3.c - Processing of ferrous metals application of protective fused metal coats with an input exceeding 2 tonnes of crude steel per hour
- 2.4 - Operation of ferrous metal foundries with a production capacity exceeding 20 tonnes per day
- 2.5.a - Processing of non-ferrous metals: production of non-ferrous crude metals from ore, concentrates or secondary raw materials by metallurgical, chemical or electrolytic processes
- 2.5.b - Processing of non-ferrous metals: melting, including the alloyage, of non-ferrous metals, including recovered products and operation of non- ferrous metal foundries, with a melting capacity exceeding 4 tonnes per day for lead and cadmium or 20 tonnes per day for all other metals
- 2.6 - Surface treatment of metals or plastic materials using an electrolytic or chemical process where the volume of the treatment vats exceeds 30 m3
- 3 - Mineral industry
- 3.1.a - Production of cement clinker in rotary kilns with a production capacity exceeding 500 tonnes per day or in other kilns with a production capacity exceeding 50 tonnes per day
- 3.1.b - Production of lime in kilns with a production capacity exceeding 50 tonnes per day
- 3.1.c - Production of magnesium oxide in kilns with a production capacity exceeding 50 tonnes per day
- 3.2 - Production of asbestos or the manufacture of asbestos-based products
- 3.3 - Manufacture of glass including glass fibre with a melting capacity exceeding 20 tonnes per day
- 3.4 - Melting mineral substances including the production of mineral fibres with a melting capacity exceeding 20 tonnes per day
- 3.5 - Manufacture of ceramic products by firing, in particular roofing tiles, bricks, refractory bricks, tiles, stoneware or porcelain with a production capacity exceeding 75 tonnes per day and/or with a kiln capacity exceeding 4 m3 and with a setting density per kiln exceeding 300 kg/m3
- 4 - Chemical industry

For the purpose of this section, production within the meaning of the categories of activities contained in this section means the production on an industrial scale by chemical or biological processing of substances or groups of substances listed in points 4.1 to 4.6
4.1 Production of organic chemicals, such as:

- 4.1.a - simple hydrocarbons (linear or cyclic, saturated or unsaturated, aliphatic or aromatic)
- 4.1.b - oxygen-containing hydrocarbons such as alcohols, aldehydes, ketones, carboxylic acids, esters and mixtures of esters, acetates, ethers, peroxides and epoxy resins
- 4.1.c - sulphurous hydrocarbons
- 4.1.d - nitrogenous hydrocarbons such as amines, amides, nitrous compounds, nitro compounds or nitrate compounds, nitriles, cyanates, isocyanates
- 4.1.e - phosphorus-containing hydrocarbons
- 4.1.f - halogenic hydrocarbons
- 4.1.g - organometallic compounds
- 4.1.h - plastic materials (polymers, synthetic fibres and cellulose-based fibres)
- 4.1.i - synthetic rubbers
- 4.1.j - dyes and pigments
- 4.1.k - surface-active agents and surfactants

4.2 Production of inorganic chemicals, such as:

- 4.2.a - gases, such as ammonia, chlorine or hydrogen chloride, fluorine or hydrogen fluoride, carbon oxides, sulphur compounds, nitrogen oxides, hydrogen, sulphur dioxide, carbonyl chloride
- 4.2.b - acids, such as chromic acid, hydrofluoric acid, phosphoric acid, nitric acid, hydrochloric acid, sulphuric acid, oleum, sulphurous acids
- 4.2.c - bases, such as ammonium hydroxide, potassium hydroxide, sodium hydroxide
- 4.2.d - salts, such as ammonium chloride, potassium chlorate, potassium carbonate, sodium carbonate, perborate, silver nitrate
- 4.2.e - non-metals, metal oxides or other inorganic compounds such as calcium carbide, silicon, silicon carbide
- 4.3 - Production of phosphorous-, nitrogen- or potassium-based fertilisers (simple or compound fertilisers)
- 4.4 - Production of plant protection products or of biocides
- 4.5 - Production of pharmaceutical products including intermediates
- 4.6 - Production of explosives
- 5 - Waste management

5.1 Disposal or recovery of hazardous waste with a capacity exceeding 10 tonnes per day involving one or more of the following activities:

- 5.1.a - biological treatment
- 5.1.b - physico-chemical treatment
- 5.1.c - blending or mixing prior to submission to any of the other activities listed in points 5.1 and 5.2
- 5.1.d - repackaging prior to submission to any of the other activities listed in points 5.1 and 5.2
- 5.1.e - solvent reclamation/regeneration
- 5.1.f - recycling/reclamation of inorganic materials other than metals or metal compounds
- 5.1.g - regeneration of acids or bases
- 5.1.h - recovery of components used for pollution abatement
- 5.1.i - recovery of components from catalysts
- 5.1.j - oil re-refining or other reuses of oil
- 5.1.k - surface impoundment
- 5.2.a - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for non-hazardous waste with a capacity exceeding 3 tonnes per hour;
- 5.2.b - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for hazardous waste with a capacity exceeding 10 tonnes per day

5.3.a - Disposal of non-hazardous waste with a capacity exceeding 50 tonnes per day involving one or more of the following activities, and excluding activities covered by Council Directive 91/271/EEC of 21 May 1991 concerning urban waste-water treatment (OJ L 135, 30.5.1991, p. 40.):

- 5.3.a.i - biological treatment
- 5.3.a.ii - physico-chemical treatment
- 5.3.a.iii - pre-treatment of waste for incineration or co-incineration
- 5.3.a.iv - treatment of slags and ashes
- 5.3.a.v - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components

5.3.b - Recovery, or a mix of recovery and disposal, of non-hazardous waste with a capacity exceeding 75 tonnes per day involving one or more of the following activities, and excluding activities covered by Directive 91/271/EEC:

- 5.3.b.i - biological treatment
- 5.3.b.ii - pre-treatment of waste for incineration or co-incineration
- 5.3.b.iii - treatment of slags and ashes
- 5.3.b.iv - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components.

When the only waste treatment activity carried out is anaerobic digestion, the capacity threshold for this activity shall be 100 tonnes per day.

- 5.4 - Landfills, as defined in Article 2(g) of Council Directive 1999/31/EC of 26 April 1999 on the landfill of waste (OJ L 182, 16.7.1999, p. 1.), receiving more than 10 tonnes of waste per day or with a total capacity exceeding 25 000 tonnes, excluding landfills of inert waste
- 5.5 - Temporary storage of hazardous waste not covered under point 5.4 pending any of the activities listed in points 5.1, 5.2, 5.4 and 5.6 with a total capacity exceeding 50 tonnes, excluding temporary storage, pending collection, on the site where the waste is generated
- 5.6 - Underground storage of hazardous waste with a total capacity exceeding 50 tonnes
- 6 - Other activities

6.1 - Production in industrial installations of

- 6.1.a - pulp from timber or other fibrous materials
- 6.1.b - paper or card board with a production capacity exceeding 20 tonnes per day
- 6.1.c - one or more of the following wood-based panels: oriented strand board, particleboard or fibreboard with a production capacity exceeding 600 m3 per day
- 6.2 - Pre-treatment (operations such as washing, bleaching, mercerisation) or dyeing of textile fibres or textiles where the treatment capacity exceeds 10 tonnes per day
- 6.3 - Tanning of hides and skins where the treatment capacity exceeds 12 tonnes of finished products per day
- 6.4.a - Operating slaughterhouses with a carcass production capacity greater than 50 tonnes per day

6.4b - Treatment and processing, other than exclusively packaging, of the following raw materials, whether previously processed or unprocessed, intended for the production of food or feed from:

- 6.4.b.i - only animal raw materials (other than exclusively milk) with a finished product production capacity greater than 75 tonnes per day;
- 6.4.b.ii - only vegetable raw materials with a finished product production capacity greater than 300 tonnes per day or 600 tonnes per day where the installation operates for a period of no more than 90 consecutive days in any year;
- 6.4.b.iii - animal and vegetable raw materials, both in combined and separate products, with a finished product production capacity in tonnes per day greater than:


- 75 if A is equal to 10 or more; or,
- [300- (22,5 × A)] in any other case,

where ‘A’ is the portion of animal material (in percent of weight) of the finished product production capacity. Packaging shall not be included in the final weight of the product.
This subsection shall not apply where the raw material is milk only

- 6.4.c - Treatment and processing of milk only, the quantity of milk received being greater than 200 tonnes per day (average value on an annual basis).
- 6.5 - Disposal or recycling of animal carcases or animal waste with a treatment capacity exceeding 10 tonnes per day
- 6.6.a - Intensive rearing of poultry or pigs with more than 40 000 places for poultry;
- 6.6.b - Intensive rearing of poultry or pigs with more than 2 000 places for production pigs (over 30 kg), or
- 6.6.c - Intensive rearing of poultry or pigs with more than 750 places for sows
- 6.7 - Surface treatment of substances, objects or products using organic solvents, in particular for dressing, printing, coating, degreasing, waterproofing, sizing, painting, cleaning or impregnating, with an organic solvent consumption capacity of more than 150 kg per hour or more than 200 tonnes per year
- 6.8 - Production of carbon (hard-burnt coal) or electrographite by means of incineration or graphitisation
- 6.9 - Capture of CO2 streams from installations covered by this Directive for the purposes of geological storage pursuant to Directive 2009/31/EC
- 6.10 - Preservation of wood and wood products with chemicals with a production capacity exceeding 75 m3 per day other than exclusively treating against sapstain

6.11 - Independently operated treatment of waste water not covered by Directive 91/271/EEC and discharged by an installation covered by Chapter II .
source <xs:simpleType name="TypeIEDInstallation_Enum">
  <xs:annotation>
    <xs:documentation>Optional. Identify type (more than one can be selected) List of activities from Annex I, DIRECTIVE 2010/75/EC of 24 November 2010 (Date of publishing: 17.12.2010):

- 1 - Energy industries
- 1.1 - Combustion of fuels in installations with a total rated thermal input of 50 MW or more
- 1.2 - Refining of mineral oil and gas
- 1.3 - Production of coke
- 1.4.a - Gasification or liquefaction of coal
- 1.4.b - Gasification or liquefaction of other fuels in installations with a total rated thermal input of 20 MW or more
- 2 - Production and processing of metals
- 2.1 - Metal ore (including sulphide ore) roasting or sintering
- 2.2 - Production of pig iron or steel (primary or secondary fusion) including continuous casting, with a capacity exceeding 2,5 tonnes per hour
- 2.3.a - Processing of ferrous metals: operation of hot-rolling mills with a capacity exceeding 20 tonnes of crude steel per hour
- 2.3.b - Processing of ferrous metals: operation of smitheries with hammers the energy of which exceeds 50 kilojoule per hammer, where the calorific power used exceeds 20 MW
- 2.3.c - Processing of ferrous metals application of protective fused metal coats with an input exceeding 2 tonnes of crude steel per hour
- 2.4 - Operation of ferrous metal foundries with a production capacity exceeding 20 tonnes per day
- 2.5.a - Processing of non-ferrous metals: production of non-ferrous crude metals from ore, concentrates or secondary raw materials by metallurgical, chemical or electrolytic processes
- 2.5.b - Processing of non-ferrous metals: melting, including the alloyage, of non-ferrous metals, including recovered products and operation of non- ferrous metal foundries, with a melting capacity exceeding 4 tonnes per day for lead and cadmium or 20 tonnes per day for all other metals
- 2.6 - Surface treatment of metals or plastic materials using an electrolytic or chemical process where the volume of the treatment vats exceeds 30 m3
- 3 - Mineral industry
- 3.1.a - Production of cement clinker in rotary kilns with a production capacity exceeding 500 tonnes per day or in other kilns with a production capacity exceeding 50 tonnes per day
- 3.1.b - Production of lime in kilns with a production capacity exceeding 50 tonnes per day
- 3.1.c - Production of magnesium oxide in kilns with a production capacity exceeding 50 tonnes per day
- 3.2 - Production of asbestos or the manufacture of asbestos-based products
- 3.3 - Manufacture of glass including glass fibre with a melting capacity exceeding 20 tonnes per day
- 3.4 - Melting mineral substances including the production of mineral fibres with a melting capacity exceeding 20 tonnes per day
- 3.5 - Manufacture of ceramic products by firing, in particular roofing tiles, bricks, refractory bricks, tiles, stoneware or porcelain with a production capacity exceeding 75 tonnes per day and/or with a kiln capacity exceeding 4 m3 and with a setting density per kiln exceeding 300 kg/m3
- 4 - Chemical industry

For the purpose of this section, production within the meaning of the categories of activities contained in this section means the production on an industrial scale by chemical or biological processing of substances or groups of substances listed in points 4.1 to 4.6
4.1 Production of organic chemicals, such as:

- 4.1.a - simple hydrocarbons (linear or cyclic, saturated or unsaturated, aliphatic or aromatic)
- 4.1.b - oxygen-containing hydrocarbons such as alcohols, aldehydes, ketones, carboxylic acids, esters and mixtures of esters, acetates, ethers, peroxides and epoxy resins
- 4.1.c - sulphurous hydrocarbons
- 4.1.d - nitrogenous hydrocarbons such as amines, amides, nitrous compounds, nitro compounds or nitrate compounds, nitriles, cyanates, isocyanates
- 4.1.e - phosphorus-containing hydrocarbons
- 4.1.f - halogenic hydrocarbons
- 4.1.g - organometallic compounds
- 4.1.h - plastic materials (polymers, synthetic fibres and cellulose-based fibres)
- 4.1.i - synthetic rubbers
- 4.1.j - dyes and pigments
- 4.1.k - surface-active agents and surfactants

4.2 Production of inorganic chemicals, such as:

- 4.2.a - gases, such as ammonia, chlorine or hydrogen chloride, fluorine or hydrogen fluoride, carbon oxides, sulphur compounds, nitrogen oxides, hydrogen, sulphur dioxide, carbonyl chloride
- 4.2.b - acids, such as chromic acid, hydrofluoric acid, phosphoric acid, nitric acid, hydrochloric acid, sulphuric acid, oleum, sulphurous acids
- 4.2.c - bases, such as ammonium hydroxide, potassium hydroxide, sodium hydroxide
- 4.2.d - salts, such as ammonium chloride, potassium chlorate, potassium carbonate, sodium carbonate, perborate, silver nitrate
- 4.2.e - non-metals, metal oxides or other inorganic compounds such as calcium carbide, silicon, silicon carbide
- 4.3 - Production of phosphorous-, nitrogen- or potassium-based fertilisers (simple or compound fertilisers)
- 4.4 - Production of plant protection products or of biocides
- 4.5 - Production of pharmaceutical products including intermediates
- 4.6 - Production of explosives
- 5 - Waste management

5.1 Disposal or recovery of hazardous waste with a capacity exceeding 10 tonnes per day involving one or more of the following activities:

- 5.1.a - biological treatment
- 5.1.b - physico-chemical treatment
- 5.1.c - blending or mixing prior to submission to any of the other activities listed in points 5.1 and 5.2
- 5.1.d - repackaging prior to submission to any of the other activities listed in points 5.1 and 5.2
- 5.1.e - solvent reclamation/regeneration
- 5.1.f - recycling/reclamation of inorganic materials other than metals or metal compounds
- 5.1.g - regeneration of acids or bases
- 5.1.h - recovery of components used for pollution abatement
- 5.1.i - recovery of components from catalysts
- 5.1.j - oil re-refining or other reuses of oil
- 5.1.k - surface impoundment
- 5.2.a - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for non-hazardous waste with a capacity exceeding 3 tonnes per hour;
- 5.2.b - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for hazardous waste with a capacity exceeding 10 tonnes per day

5.3.a - Disposal of non-hazardous waste with a capacity exceeding 50 tonnes per day involving one or more of the following activities, and excluding activities covered by Council Directive 91/271/EEC of 21 May 1991 concerning urban waste-water treatment (OJ L 135, 30.5.1991, p. 40.):

- 5.3.a.i - biological treatment
- 5.3.a.ii - physico-chemical treatment
- 5.3.a.iii - pre-treatment of waste for incineration or co-incineration
- 5.3.a.iv - treatment of slags and ashes
- 5.3.a.v - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components

5.3.b - Recovery, or a mix of recovery and disposal, of non-hazardous waste with a capacity exceeding 75 tonnes per day involving one or more of the following activities, and excluding activities covered by Directive 91/271/EEC:

- 5.3.b.i - biological treatment
- 5.3.b.ii - pre-treatment of waste for incineration or co-incineration
- 5.3.b.iii - treatment of slags and ashes
- 5.3.b.iv - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components.

When the only waste treatment activity carried out is anaerobic digestion, the capacity threshold for this activity shall be 100 tonnes per day.

- 5.4 - Landfills, as defined in Article 2(g) of Council Directive 1999/31/EC of 26 April 1999 on the landfill of waste (OJ L 182, 16.7.1999, p. 1.), receiving more than 10 tonnes of waste per day or with a total capacity exceeding 25 000 tonnes, excluding landfills of inert waste
- 5.5 - Temporary storage of hazardous waste not covered under point 5.4 pending any of the activities listed in points 5.1, 5.2, 5.4 and 5.6 with a total capacity exceeding 50 tonnes, excluding temporary storage, pending collection, on the site where the waste is generated
- 5.6 - Underground storage of hazardous waste with a total capacity exceeding 50 tonnes
- 6 - Other activities

6.1 - Production in industrial installations of

- 6.1.a - pulp from timber or other fibrous materials
- 6.1.b - paper or card board with a production capacity exceeding 20 tonnes per day
- 6.1.c - one or more of the following wood-based panels: oriented strand board, particleboard or fibreboard with a production capacity exceeding 600 m3 per day
- 6.2 - Pre-treatment (operations such as washing, bleaching, mercerisation) or dyeing of textile fibres or textiles where the treatment capacity exceeds 10 tonnes per day
- 6.3 - Tanning of hides and skins where the treatment capacity exceeds 12 tonnes of finished products per day
- 6.4.a - Operating slaughterhouses with a carcass production capacity greater than 50 tonnes per day

6.4b - Treatment and processing, other than exclusively packaging, of the following raw materials, whether previously processed or unprocessed, intended for the production of food or feed from:

- 6.4.b.i - only animal raw materials (other than exclusively milk) with a finished product production capacity greater than 75 tonnes per day;
- 6.4.b.ii - only vegetable raw materials with a finished product production capacity greater than 300 tonnes per day or 600 tonnes per day where the installation operates for a period of no more than 90 consecutive days in any year;
- 6.4.b.iii - animal and vegetable raw materials, both in combined and separate products, with a finished product production capacity in tonnes per day greater than:


- 75 if A is equal to 10 or more; or,
- [300- (22,5 × A)] in any other case,

where ‘A’ is the portion of animal material (in percent of weight) of the finished product production capacity. Packaging shall not be included in the final weight of the product.
This subsection shall not apply where the raw material is milk only

- 6.4.c - Treatment and processing of milk only, the quantity of milk received being greater than 200 tonnes per day (average value on an annual basis).
- 6.5 - Disposal or recycling of animal carcases or animal waste with a treatment capacity exceeding 10 tonnes per day
- 6.6.a - Intensive rearing of poultry or pigs with more than 40 000 places for poultry;
- 6.6.b - Intensive rearing of poultry or pigs with more than 2 000 places for production pigs (over 30 kg), or
- 6.6.c - Intensive rearing of poultry or pigs with more than 750 places for sows
- 6.7 - Surface treatment of substances, objects or products using organic solvents, in particular for dressing, printing, coating, degreasing, waterproofing, sizing, painting, cleaning or impregnating, with an organic solvent consumption capacity of more than 150 kg per hour or more than 200 tonnes per year
- 6.8 - Production of carbon (hard-burnt coal) or electrographite by means of incineration or graphitisation
- 6.9 - Capture of CO2 streams from installations covered by this Directive for the purposes of geological storage pursuant to Directive 2009/31/EC
- 6.10 - Preservation of wood and wood products with chemicals with a production capacity exceeding 75 m3 per day other than exclusively treating against sapstain

6.11 - Independently operated treatment of waste water not covered by Directive 91/271/EEC and discharged by an installation covered by Chapter II .</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="1 - Energy industries"/>
    <xs:enumeration value="1.1 - Combustion of fuels in installations with a total rated thermal input of 50 MW or more"/>
    <xs:enumeration value="1.2 - Refining of mineral oil and gas"/>
    <xs:enumeration value="1.3 - Production of coke"/>
    <xs:enumeration value="1.4.a - Gasification or liquefaction of coal"/>
    <xs:enumeration value="1.4.b - Gasification or liquefaction of other fuels in installations with a total rated thermal input of 20 MW or more"/>
    <xs:enumeration value="2 - Production and processing of metals"/>
    <xs:enumeration value="2.1 - Metal ore (including sulphide ore) roasting or sintering"/>
    <xs:enumeration value="2.2 - Production of pig iron or steel (primary or secondary fusion) including continuous casting, with a capacity exceeding 2,5 tonnes per hour"/>
    <xs:enumeration value="2.3.a - Processing of ferrous metals: operation of hot-rolling mills with a capacity exceeding 20 tonnes of crude steel per hour"/>
    <xs:enumeration value="2.3.b - Processing of ferrous metals: operation of smitheries with hammers the energy of which exceeds 50 kilojoule per hammer"/>
    <xs:enumeration value="2.3.c - Processing of ferrous metals application of protective fused metal coats with an input exceeding 2 tonnes of crude steel per hour"/>
    <xs:enumeration value="2.4 - Operation of ferrous metal foundries with a production capacity exceeding 20 tonnes per day"/>
    <xs:enumeration value="2.5.a - Processing of non-ferrous metals: production of non-ferrous crude metals from ore, concentrates or secondary raw materials by metallurgical, chemical or electrolytic processes"/>
    <xs:enumeration value="2.5.b - Processing of non-ferrous metals: melting, including the alloyage, of non-ferrous metals, including recovered products and operation of non- ferrous metal foundries, with a melting capacity exceeding 4 tonnes per day for lead and cadmium or 20 ton"/>
    <xs:enumeration value="2.6 - Surface treatment of metals or plastic materials using an electrolytic or chemical process where the volume of the treatment vats exceeds 30 m3"/>
    <xs:enumeration value="3 - Mineral industry"/>
    <xs:enumeration value="3.1.a - Production of cement clinker in rotary kilns with a production capacity exceeding 500 tonnes per day or in other kilns with a production capacity exceeding 50 tonnes per day"/>
    <xs:enumeration value="3.1.b - Production of lime in kilns with a production capacity exceeding 50 tonnes per day"/>
    <xs:enumeration value="3.1.c - Production of magnesium oxide in kilns with a production capacity exceeding 50 tonnes per day"/>
    <xs:enumeration value="3.2 - Production of asbestos or the manufacture of asbestos-based products"/>
    <xs:enumeration value="3.3 - Manufacture of glass including glass fibre with a melting capacity exceeding 20 tonnes per day"/>
    <xs:enumeration value="3.4 - Melting mineral substances including the production of mineral fibres with a melting capacity exceeding 20 tonnes per day"/>
    <xs:enumeration value="3.5 - Manufacture of ceramic products by firing, in particular roofing tiles, bricks, refractory bricks, tiles, stoneware or porcelain with a production capacity exceeding 75 tonnes per day and/or with a kiln capacity exceeding 4 m3 and with a setting den"/>
    <xs:enumeration value="4 - Chemical industry"/>
    <xs:enumeration value="4.1.a - simple hydrocarbons (linear or cyclic, saturated or unsaturated, aliphatic or aromatic)"/>
    <xs:enumeration value="4.1.b - oxygen-containing hydrocarbons such as alcohols, aldehydes, ketones, carboxylic acids, esters and mixtures of esters, acetates, ethers, peroxides and epoxy resins"/>
    <xs:enumeration value="4.1.c - sulphurous hydrocarbons"/>
    <xs:enumeration value="4.1.d - nitrogenous hydrocarbons such as amines, amides, nitrous compounds, nitro compounds or nitrate compounds, nitriles, cyanates, isocyanates"/>
    <xs:enumeration value="4.1.e - phosphorus-containing hydrocarbons"/>
    <xs:enumeration value="4.1.f - halogenic hydrocarbons"/>
    <xs:enumeration value="4.1.g - organometallic compounds"/>
    <xs:enumeration value="4.1.h - plastic materials (polymers, synthetic fibres and cellulose-based fibres)"/>
    <xs:enumeration value="4.1.i - synthetic rubbers"/>
    <xs:enumeration value="4.1.j - dyes and pigments"/>
    <xs:enumeration value="4.1.k - surface-active agents and surfactants"/>
    <xs:enumeration value="4.2.a - gases, such as ammonia, chlorine or hydrogen chloride, fluorine or hydrogen fluoride, carbon oxides, sulphur compounds, nitrogen oxides, hydrogen, sulphur dioxide, carbonyl chloride"/>
    <xs:enumeration value="4.2.b - acids, such as chromic acid, hydrofluoric acid, phosphoric acid, nitric acid, hydrochloric acid, sulphuric acid, oleum, sulphurous acids"/>
    <xs:enumeration value="4.2.c - bases, such as ammonium hydroxide, potassium hydroxide, sodium hydroxide"/>
    <xs:enumeration value="4.2.d - salts, such as ammonium chloride, potassium chlorate, potassium carbonate, sodium carbonate, perborate, silver nitrate"/>
    <xs:enumeration value="4.2.e - non-metals, metal oxides or other inorganic compounds such as calcium carbide, silicon, silicon carbide"/>
    <xs:enumeration value="4.3 - Production of phosphorous-, nitrogen- or potassium-based fertilisers (simple or compound fertilisers)"/>
    <xs:enumeration value="4.4 - Production of plant protection products or of biocides"/>
    <xs:enumeration value="4.5 - Production of pharmaceutical products including intermediates"/>
    <xs:enumeration value="4.6 - Production of explosives"/>
    <xs:enumeration value="5 - Waste management"/>
    <xs:enumeration value="5.1.a - biological treatment"/>
    <xs:enumeration value="5.1.b - physico-chemical treatment"/>
    <xs:enumeration value="5.1.c - blending or mixing prior to submission to any of the other activities listed in points 5.1 and 5.2"/>
    <xs:enumeration value="5.1.d - repackaging prior to submission to any of the other activities listed in points 5.1 and 5.2"/>
    <xs:enumeration value="5.1.e - solvent reclamation/regeneration"/>
    <xs:enumeration value="5.1.f - recycling/reclamation of inorganic materials other than metals or metal compounds"/>
    <xs:enumeration value="5.1.g - regeneration of acids or bases"/>
    <xs:enumeration value="5.1.h - recovery of components used for pollution abatement"/>
    <xs:enumeration value="5.1.i - recovery of components from catalysts"/>
    <xs:enumeration value="5.1.j - oil re-refining or other reuses of oil"/>
    <xs:enumeration value="5.1.k - surface impoundment"/>
    <xs:enumeration value="5.2.a - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for non-hazardous waste with a capacity exceeding 3 tonnes per hour;"/>
    <xs:enumeration value="5.2.b - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for hazardous waste with a capacity exceeding 10 tonnes per day"/>
    <xs:enumeration value="5.3.a - Disposal of non-hazardous waste with a capacity exceeding 50 tonnes per day involving one or more of the following activities, and excluding activities covered by Council Directive 91/271/EEC of 21 May 1991 concerning urban waste-water treatment ("/>
    <xs:enumeration value="5.3.a.i - biological treatment"/>
    <xs:enumeration value="5.3.a.ii - physico-chemical treatment"/>
    <xs:enumeration value="5.3.a.iii - pre-treatment of waste for incineration or co-incineration"/>
    <xs:enumeration value="5.3.a.iv - treatment of slags and ashes"/>
    <xs:enumeration value="5.3.a.v - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components"/>
    <xs:enumeration value="5.3.b - Recovery, or a mix of recovery and disposal, of non-hazardous waste with a capacity exceeding 75 tonnes per day involving one or more of the following activities, and excluding activities covered by Directive 91/271/EEC:"/>
    <xs:enumeration value="5.3.b.i - biological treatment"/>
    <xs:enumeration value="5.3.b.ii - pre-treatment of waste for incineration or co-incineration"/>
    <xs:enumeration value="5.3.b.iii - treatment of slags and ashes"/>
    <xs:enumeration value="5.3.b.iv - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components."/>
    <xs:enumeration value="5.4 - Landfills, as defined in Article 2(g) of Council Directive 1999/31/EC of 26 April 1999 on the landfill of waste (OJ L 182, 16.7.1999, p. 1.), receiving more than 10 tonnes of waste per day or with a total capacity exceeding 25 000 tonnes, excluding "/>
    <xs:enumeration value="5.5 - Temporary storage of hazardous waste not covered under point 5.4 pending any of the activities listed in points 5.1, 5.2, 5.4 and 5.6 with a total capacity exceeding 50 tonnes, excluding temporary storage, pending collection, on the site where the w"/>
    <xs:enumeration value="5.6 - Underground storage of hazardous waste with a total capacity exceeding 50 tonnes"/>
    <xs:enumeration value="6 - Other activities"/>
    <xs:enumeration value="6.1.a - pulp from timber or other fibrous materials"/>
    <xs:enumeration value="6.1.b - paper or card board with a production capacity exceeding 20 tonnes per day"/>
    <xs:enumeration value="6.1.c - one or more of the following wood-based panels: oriented strand board, particleboard or fibreboard with a production capacity exceeding 600 m3 per day"/>
    <xs:enumeration value="6.2 - Pre-treatment (operations such as washing, bleaching, mercerisation) or dyeing of textile fibres or textiles where the treatment capacity exceeds 10 tonnes per day"/>
    <xs:enumeration value="6.3 - Tanning of hides and skins where the treatment capacity exceeds 12 tonnes of finished products per day"/>
    <xs:enumeration value="6.4b - Treatment and processing, other than exclusively packaging, of the following raw materials, whether previously processed or unprocessed, intended for the production of food or feed from:"/>
    <xs:enumeration value="6.4.a - Operating slaughterhouses with a carcass production capacity greater than 50 tonnes per day"/>
    <xs:enumeration value="6.4.b.i - only animal raw materials (other than exclusively milk) with a finished product production capacity greater than 75 tonnes per day;"/>
    <xs:enumeration value="6.4.b.ii - only vegetable raw materials with a finished product production capacity greater than 300 tonnes per day or 600 tonnes per day where the installation operates for a period of no more than 90 consecutive days in any year;"/>
    <xs:enumeration value="6.4.b.iii - animal and vegetable raw materials, both in combined and separate products, with a finished product production capacity in tonnes per day greater than: - 75 if A is equal to 10 or more; or, - [300- (22,5 × A)] in any other case, where ‘A’ is t"/>
    <xs:enumeration value="6.4.c - Treatment and processing of milk only, the quantity of milk received being greater than 200 tonnes per day (average value on an annual basis)."/>
    <xs:enumeration value="6.5 - Disposal or recycling of animal carcases or animal waste with a treatment capacity exceeding 10 tonnes per day"/>
    <xs:enumeration value="6.6.a - Intensive rearing of poultry or pigs with more than 40 000 places for poultry;"/>
    <xs:enumeration value="6.6.b - Intensive rearing of poultry or pigs with more than 2 000 places for production pigs (over 30 kg), or"/>
    <xs:enumeration value="6.6.c - Intensive rearing of poultry or pigs with more than 750 places for sows"/>
    <xs:enumeration value="6.7 - Surface treatment of substances, objects or products using organic solvents, in particular for dressing, printing, coating, degreasing, waterproofing, sizing, painting, cleaning or impregnating, with an organic solvent consumption capacity of more t"/>
    <xs:enumeration value="6.8 - Production of carbon (hard-burnt coal) or electrographite by means of incineration or graphitisation"/>
    <xs:enumeration value="6.9 - Capture of CO2 streams from installations covered by this Directive for the purposes of geological storage pursuant to Directive 2009/31/EC"/>
    <xs:enumeration value="6.10 - Preservation of wood and wood products with chemicals with a production capacity exceeding 75 m3 per day other than exclusively treating against sapstain"/>
    <xs:enumeration value="6.11 - Independently operated treatment of waste water not covered by Directive 91/271/EEC and discharged by an installation covered by Chapter II"/>
  </xs:restriction>
</xs:simpleType>

simpleType URLType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
element ReferenceType/Hyperlink
facets
Kind Value annotation
minLength 1
maxLength 250
pattern https?://.*
annotation
documentation
URL string of up to 250 characters
source <xs:simpleType name="URLType">
  <xs:annotation>
    <xs:documentation>URL string of up to 250 characters</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="250"/>
    <xs:pattern value="https?://.*"/>
  </xs:restriction>
</xs:simpleType>

simpleType WFDAssociationType_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Overlapping (partly within)
enumeration Within
source <xs:simpleType name="WFDAssociationType_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Overlapping (partly within)"/>
    <xs:enumeration value="Within"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseDate
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:date
used by
simpleType WiseDateTimeType
facets
Kind Value annotation
pattern \d{4}-\d{2}-\d{2}
source <xs:simpleType name="WiseDate">
  <xs:restriction base="xs:date">
    <xs:pattern value="\d{4}-\d{2}-\d{2}"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseDateTime
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:dateTime
used by
simpleType WiseDateTimeType
facets
Kind Value annotation
pattern \d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}
source <xs:simpleType name="WiseDateTime">
  <xs:restriction base="xs:dateTime">
    <xs:pattern value="\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseDateTimeType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type union of (WiseDate, WiseDateTime, WiseYear, WiseYearMonth)
annotation
documentation
Dates must be reported using the ISO 8601 extended format:  YYYY-MM-DD, for days; YYYY-MM, for months; YYYY, for years. (If necessary, or convenient, time values can be reported. The ISO 8601 extended format for UTC time should be used.)
source <xs:simpleType name="WiseDateTimeType">
  <xs:annotation>
    <xs:documentation>Dates must be reported using the ISO 8601 extended format:  YYYY-MM-DD, for days; YYYY-MM, for months; YYYY, for years. (If necessary, or convenient, time values can be reported. The ISO 8601 extended format for UTC time should be used.)</xs:documentation>
  </xs:annotation>
  <xs:union memberTypes="WiseDate WiseDateTime WiseYear WiseYearMonth"/>
</xs:simpleType>

simpleType WiseEvolutionTypeValue
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration aggregation
enumeration change
enumeration changeBothAggregationAndSplitting
enumeration changeCode
enumeration changeExtendedArea
enumeration changeReducedArea
enumeration creation
enumeration deletion
enumeration noChange
enumeration splitting
source <xs:simpleType name="WiseEvolutionTypeValue">
  <xs:restriction base="xs:string">
    <xs:enumeration value="aggregation"/>
    <xs:enumeration value="change"/>
    <xs:enumeration value="changeBothAggregationAndSplitting"/>
    <xs:enumeration value="changeCode"/>
    <xs:enumeration value="changeExtendedArea"/>
    <xs:enumeration value="changeReducedArea"/>
    <xs:enumeration value="creation"/>
    <xs:enumeration value="deletion"/>
    <xs:enumeration value="noChange"/>
    <xs:enumeration value="splitting"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseLanguageCode_Enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration alb
enumeration arm
enumeration baq
enumeration bel
enumeration bul
enumeration cat
enumeration cze
enumeration dan
enumeration dut
enumeration eng
enumeration est
enumeration fao
enumeration fin
enumeration fre
enumeration geo
enumeration ger
enumeration gle
enumeration glg
enumeration gre
enumeration hrv
enumeration hun
enumeration ice
enumeration ita
enumeration lav
enumeration lit
enumeration ltz
enumeration mac
enumeration mis
enumeration mlt
enumeration nor
enumeration pol
enumeration por
enumeration roh
enumeration rum
enumeration rus
enumeration slo
enumeration slv
enumeration spa
enumeration srp
enumeration swe
enumeration tur
enumeration ukr
source <xs:simpleType name="WiseLanguageCode_Enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="alb"/>
    <xs:enumeration value="arm"/>
    <xs:enumeration value="baq"/>
    <xs:enumeration value="bel"/>
    <xs:enumeration value="bul"/>
    <xs:enumeration value="cat"/>
    <xs:enumeration value="cze"/>
    <xs:enumeration value="dan"/>
    <xs:enumeration value="dut"/>
    <xs:enumeration value="eng"/>
    <xs:enumeration value="est"/>
    <xs:enumeration value="fao"/>
    <xs:enumeration value="fin"/>
    <xs:enumeration value="fre"/>
    <xs:enumeration value="geo"/>
    <xs:enumeration value="ger"/>
    <xs:enumeration value="gle"/>
    <xs:enumeration value="glg"/>
    <xs:enumeration value="gre"/>
    <xs:enumeration value="hrv"/>
    <xs:enumeration value="hun"/>
    <xs:enumeration value="ice"/>
    <xs:enumeration value="ita"/>
    <xs:enumeration value="lav"/>
    <xs:enumeration value="lit"/>
    <xs:enumeration value="ltz"/>
    <xs:enumeration value="mac"/>
    <xs:enumeration value="mis"/>
    <xs:enumeration value="mlt"/>
    <xs:enumeration value="nor"/>
    <xs:enumeration value="pol"/>
    <xs:enumeration value="por"/>
    <xs:enumeration value="roh"/>
    <xs:enumeration value="rum"/>
    <xs:enumeration value="rus"/>
    <xs:enumeration value="slo"/>
    <xs:enumeration value="slv"/>
    <xs:enumeration value="spa"/>
    <xs:enumeration value="srp"/>
    <xs:enumeration value="swe"/>
    <xs:enumeration value="tur"/>
    <xs:enumeration value="ukr"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseYear
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:gYear
used by
simpleType WiseDateTimeType
facets
Kind Value annotation
pattern \d{4}
source <xs:simpleType name="WiseYear">
  <xs:restriction base="xs:gYear">
    <xs:pattern value="\d{4}"/>
  </xs:restriction>
</xs:simpleType>

simpleType WiseYearMonth
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:gYearMonth
used by
simpleType WiseDateTimeType
facets
Kind Value annotation
pattern \d{4}-\d{2}
source <xs:simpleType name="WiseYearMonth">
  <xs:restriction base="xs:gYearMonth">
    <xs:pattern value="\d{4}-\d{2}"/>
  </xs:restriction>
</xs:simpleType>

simpleType YearMonthType
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
length 7
pattern ([0-9]{4}-[0-1]{1}[0-9]{1})
annotation
documentation
2016 Date in the format YYYY-MM
source <xs:simpleType name="YearMonthType">
  <xs:annotation>
    <xs:documentation>2016 Date in the format YYYY-MM</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="7"/>
    <xs:pattern value="([0-9]{4}-[0-1]{1}[0-9]{1})"/>
  </xs:restriction>
</xs:simpleType>

simpleType YesCode
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration Y
enumeration
annotation
documentation
Yes Code: Yes=Y
source <xs:simpleType name="YesCode">
  <xs:annotation>
    <xs:documentation>Yes Code: Yes=Y</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Y"/>
    <xs:enumeration value=""/>
  </xs:restriction>
</xs:simpleType>

simpleType YesNoArticle66_67_enum
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
facets
Kind Value annotation
enumeration 6.6
enumeration 6.7
enumeration both 6.6 and 6.7
enumeration Yes
enumeration No
source <xs:simpleType name="YesNoArticle66_67_enum">
  <xs:restriction base="xs:string">
    <xs:enumeration value="6.6"/>
    <xs:enumeration value="6.7"/>
    <xs:enumeration value="both 6.6 and 6.7"/>
    <xs:enumeration value="Yes"/>
    <xs:enumeration value="No"/>
  </xs:restriction>
</xs:simpleType>

simpleType YesNoCode
namespace http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon
type restriction of xs:string
used by
elements ConsiderationsOfConsequences/considerationsCulturalHeritage ConsiderationsOfConsequences/considerationsEconomicActivity ConsiderationsOfConsequences/considerationsEnvironment ConsiderationsOfConsequences/considerationsHumanHealth AreasOfFloodRisk/crossBorderRelationship APSFR/internationalUoM
facets
Kind Value annotation
enumeration Y
enumeration N
enumeration
annotation
documentation
Yes/No Code: Yes=Y; No=N
source <xs:simpleType name="YesNoCode">
  <xs:annotation>
    <xs:documentation>Yes/No Code: Yes=Y; No=N</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Y"/>
    <xs:enumeration value="N"/>
    <xs:enumeration value=""/>
  </xs:restriction>
</xs:simpleType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
